USING ACTIVE PARK ASSIST
Active park assist will not align the vehicle
correctly if:
• a spare tire, or a tire worn significantly
more than the other tires is used
• the factory installed tire size is not used
on the vehicle
• the tires skid
• you allow the vehicle to roll.
• the weather conditions are poor (heavy
rain, snow, fog, etc).
Move forwards at a maximum speed of 30
kph (18 mph). Press the active park assist
control switch. Use the direction indicator
lever to select searching either to the
left-hand side or right-hand side of the
vehicle.

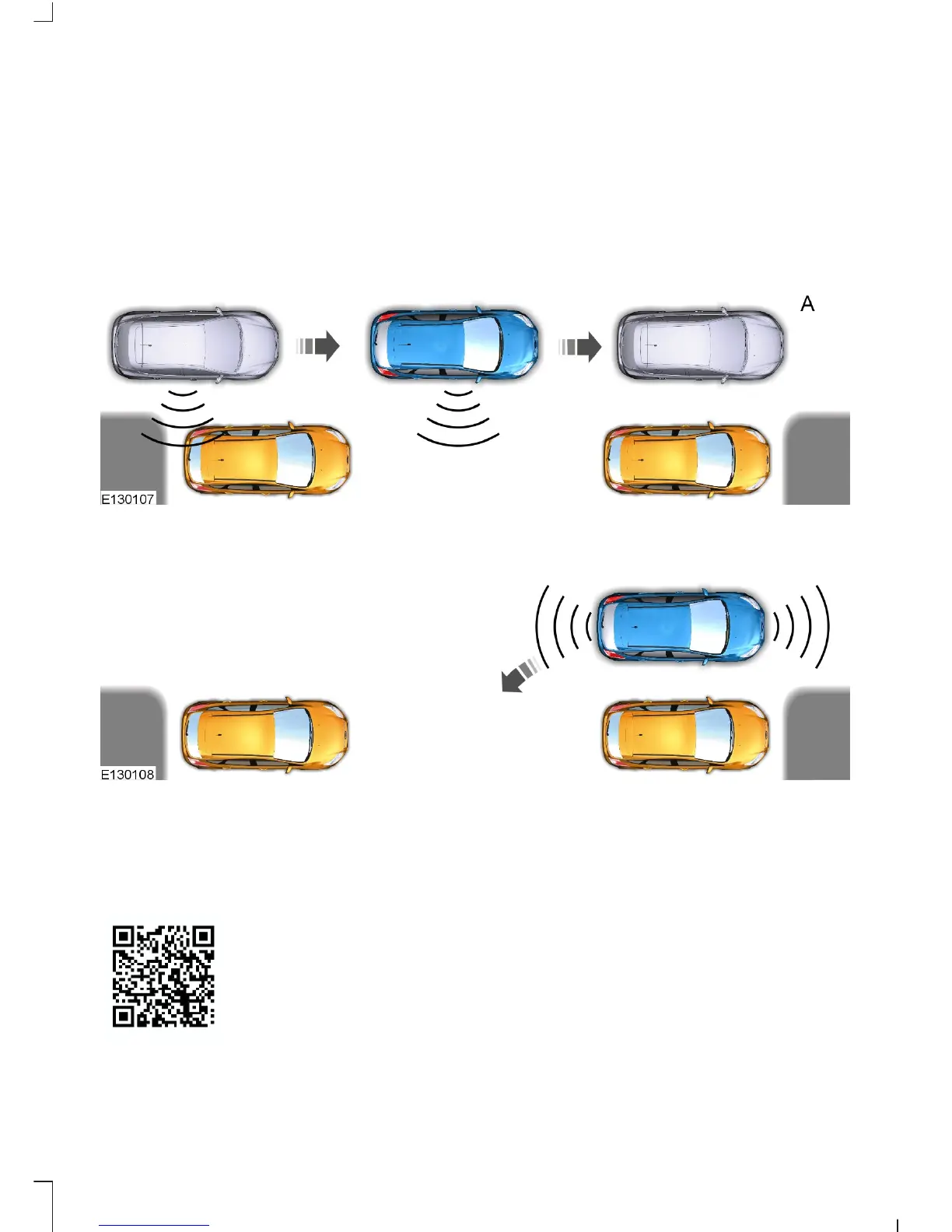

Drive slowly to position A, then follow the
system instructions.
Move the vehicle backwards cautiously
using the accelerator and brake pedals to
control the vehicle. Stop the vehicle when
you hear a continuous tone.
12
C-MAX (CB7) Vehicles Built From: 10-09-2012, Vehicles Built Up To: 31-12-2014, CG3558en enGBR, Edition date: 03/2014, Second Printing
