GAUGES

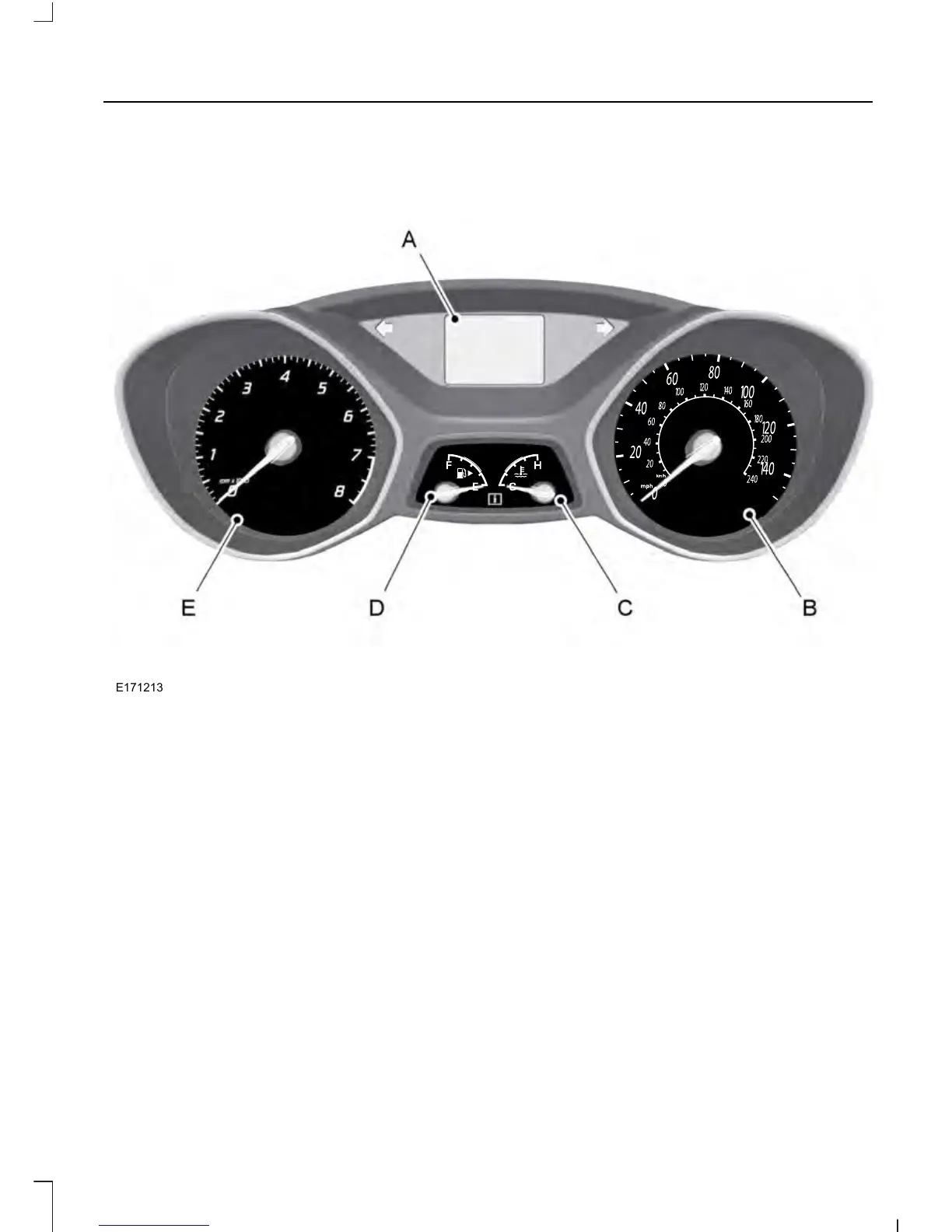

E171213
Information displayA
SpeedometerB
Engine coolant temperature gaugeC
Fuel gaugeD
TachometerE
Information Display
Compass (If Equipped)
Displays the vehicle’s heading direction.
To calibrate and set the compass zone use
the information display menu. See
Information Displays (page 89).
Use the diagram to determine your
magnetic zone.
