5.6 Body Closures

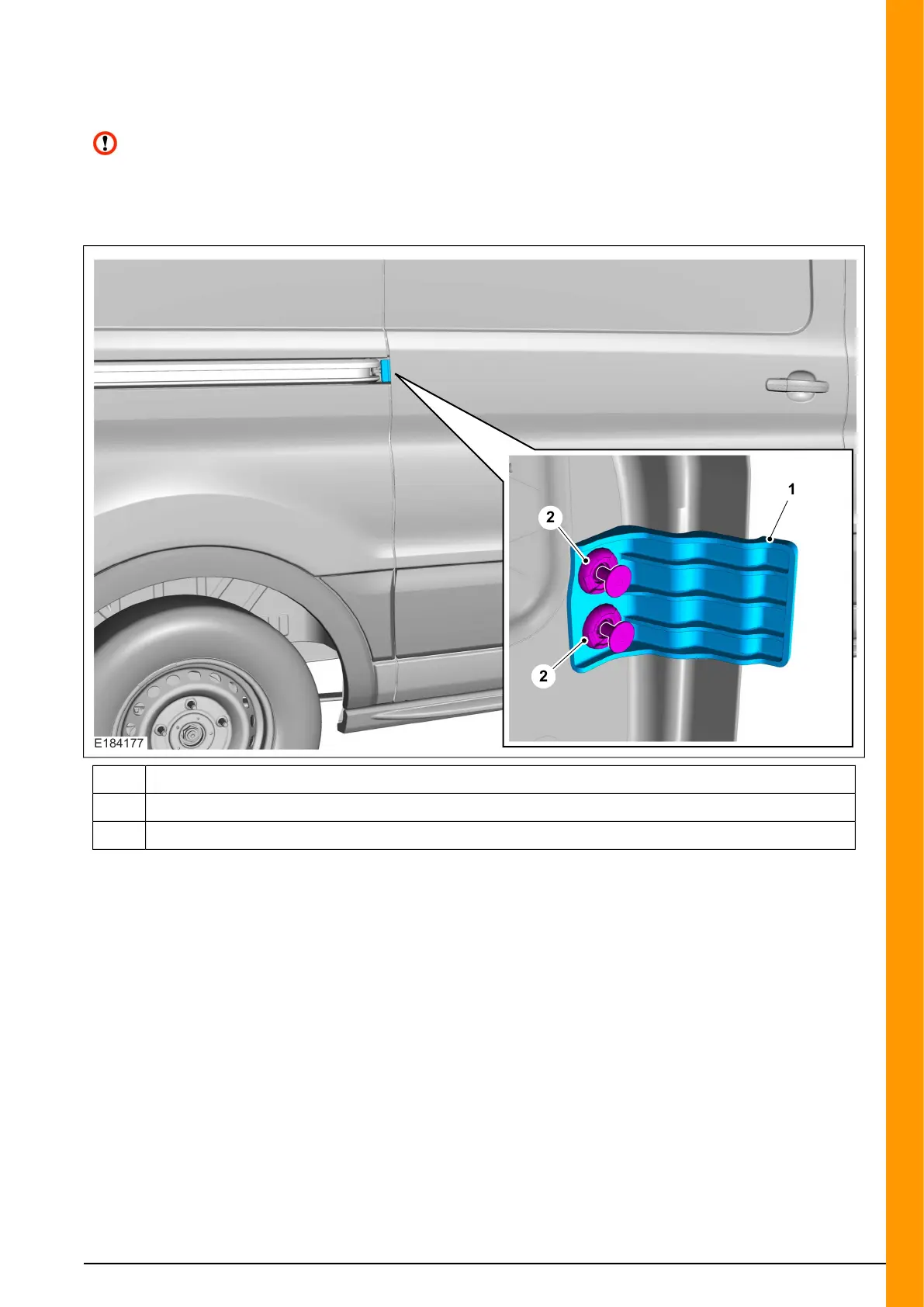

5.6.1 Sliding Door Gap Reduction on
M1 Vehicles
CAUTION: When converting an N1/N2 or
M2 vehicle into an M1 vehicle, left and
right hand spacer brackets or an
equivalent designed part must be
retrofitted to the sliding side load doors.
For further information please contact your local
National Sales Company representative or Local
Ford Dealer.
DescriptionItem
Spacer Bracket - Right Hand Side BK31-A214A46-A_ / Left Hand Side BK31-A214A47-A_1
2 X Clip and Fastener W7117122
5.6.2 Security, Anti-Theft and Locking
System
NOTE: It is not recommended to alter the locking
system or damage the security shielding around
the lock and latch.
However, in case a modification is required for the
conversions, please consult the Vehicle Converter
Advisory Service VCAS@ford.com.
To avoid locking system security complications,
it is recommended to discuss with the local Ford
dealer prior to modifications taking place.
When removing and reapplying door seals take
care to fit correctly, using the same seals as this
is critical to door closing efforts. Any modification
to the sealing flanges or surfaces will require
consultation with your local Ford dealer or Vehicle
Converter Advisory Service (VCAS@ford.com).
This may also include air extraction/venting
adjustments to assist door close efforts if
significant changes to closures are required.
The Body Control Module is designed to work
specifically with the Ford Transit lock and latch
mechanisms and therefore drives latches to lock
and unlock for specific time periods. Additional
power locking functionality should be based
around the use of additional Ford Transit latch
mechanisms. Additional latches can be driven via
relays connected in parallel with existing latches.
The following figures outline the areas in which it
is not advisable to drill.
