Handpiece Lubrication
(See page 8 for handpiece photos.)
8, 18, 20, 25, (25H), 28, 30
®
, (30H) 35, 43T,
44T, (44HT) and 52
: These handpieces have been
permanently lubricated. Their greased-shielded
ball bearings
should absolutely not be lubricated.
(Handpieces listed in brackets are for use
with Series SRH models only.)
10 and 10D: Lubrication should not be required
for the first 2–3 months of continuous use.
Then, approximately every two weeks of use,
lubrication of the front and back ends of the
handpiece is required. Follow the detailed
instructions that come with your handpiece.
8D, 10D, 15D, 18D, 20D, 52D, 55D
and 56D Handpieces with Duplex Spring
Connections:
Approximately every 20 hours of
operation apply 1 or 2 drops of Foredom oil
(MS10005) into the hole in the duplex spring
collar next to the sheath connector. This will
provide sufficient lubrication for both the duplex
spring connection and the handpiece spindle.
15: Clean off any dirt to prevent foreign
matter from falling inside the handpiece. Put
two drops of Foredom oil into the oil hole in the
side of the housing. Run the handpiece slowly
to distribute the oil. Lubricate every 100 hours
of use.
55A, 55D, 56A, and 56D: It is important to
regularly lubricate the gears and spindle of these
handpieces. Apply one drop of Foredom handpiece
oil in oil holes every hour of continuous use.
Follow the instructions above for duplex spring
lubrication.
50: After every 200 hours of use you should
clean and lubricate this handpiece. The old
grease must be cleaned off of the interior cam
chamber and replaced with new lubricant.
Follow the detailed instructions that come with
your chisel handpiece.
10
Attaching Accessories to Handpieces
Quick Change Type — continued
20, 20D, 20SJ Handpiece: These have lever
action collet release mechanisms. Wait for the
motor, flexible shaft and accessory to come to a
complete stop before turning the lever to open
collet and remove or insert accessory (3/32
″
only). Turn lever 90˚ to left or right to open collet
and change an accessory. To close the collet
turn the lever back to the position parallel to
the handpiece.
52, 52D, and 52SJ Handpieces:
These handpieces have a unique push/pull collet
release mechanism for rapid accessory changing
(3/32
″ only). Wait for the motor, flexible shaft,
and accessory to come to a full stop before
opening the collet. After accessory has stopped
rotating, pull the top grip forward with one hand
while holding the bottom of the handpiece with
the other. Remove the accessory and insert the
shank of the new one fully into the collet. Push
the top and bottom portions together.

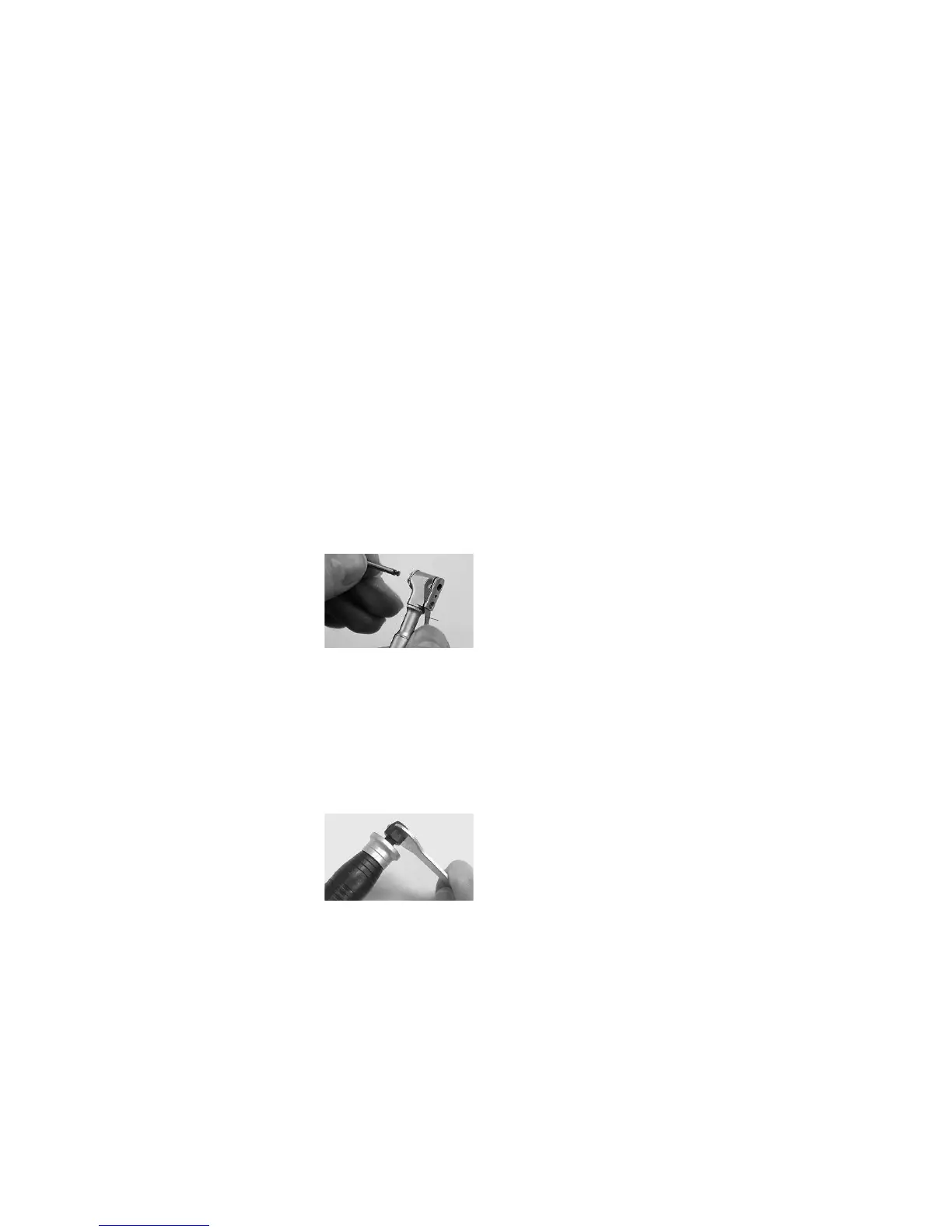

Latch Type —
55A, 55D, 56A, 56D
Handpieces:
These handpieces have
simple finger latches. Wait
for the motor, flexible shaft, and accessory to
come to a full stop before changing a bur. Slide
the latch over and insert the shank of a
latch type
accessory
as far as possible. Slide the latch back
into place. Test for a secure hold by pulling on
the accessory. To release the accessor
y, slide
latch out again and pull out accessory.
Chisel Type —
50 and 50C Handpieces
(50C includes set of
6 chisels):
Inserting a chisel into this
reciprocating handpiece should be done while
the motor is in the “off” position, or with the
handpiece disconnected. Loosen the locking nut
with the 12mm spanner wrench provided by
unscrewing it counterclockwise. Insert the tang
fully into the plunger shaft. T
ighten the locking
nut clockwise until tool is held securely
.
Do not over tighten.
latch
