Forest Diamond - Adjusting Tubular Motor End Limits; Setting Upper and Lower Motor Limits

07/2016 WDOC Diamond remote www.forestgroup.nl v1.4
TUBULAR MOTOR
BUILD IN MULTI RECEIVER AND ELECTRONIC LIMIT SETTING
ADJUSTING UPPER AND LOWER END LIMITS:
IMPORTANT: - when more motors are programmed to one channel, end limits of all motors will be adjusted
- during programming, keep the remote within 2 mtr from the receiver/motor

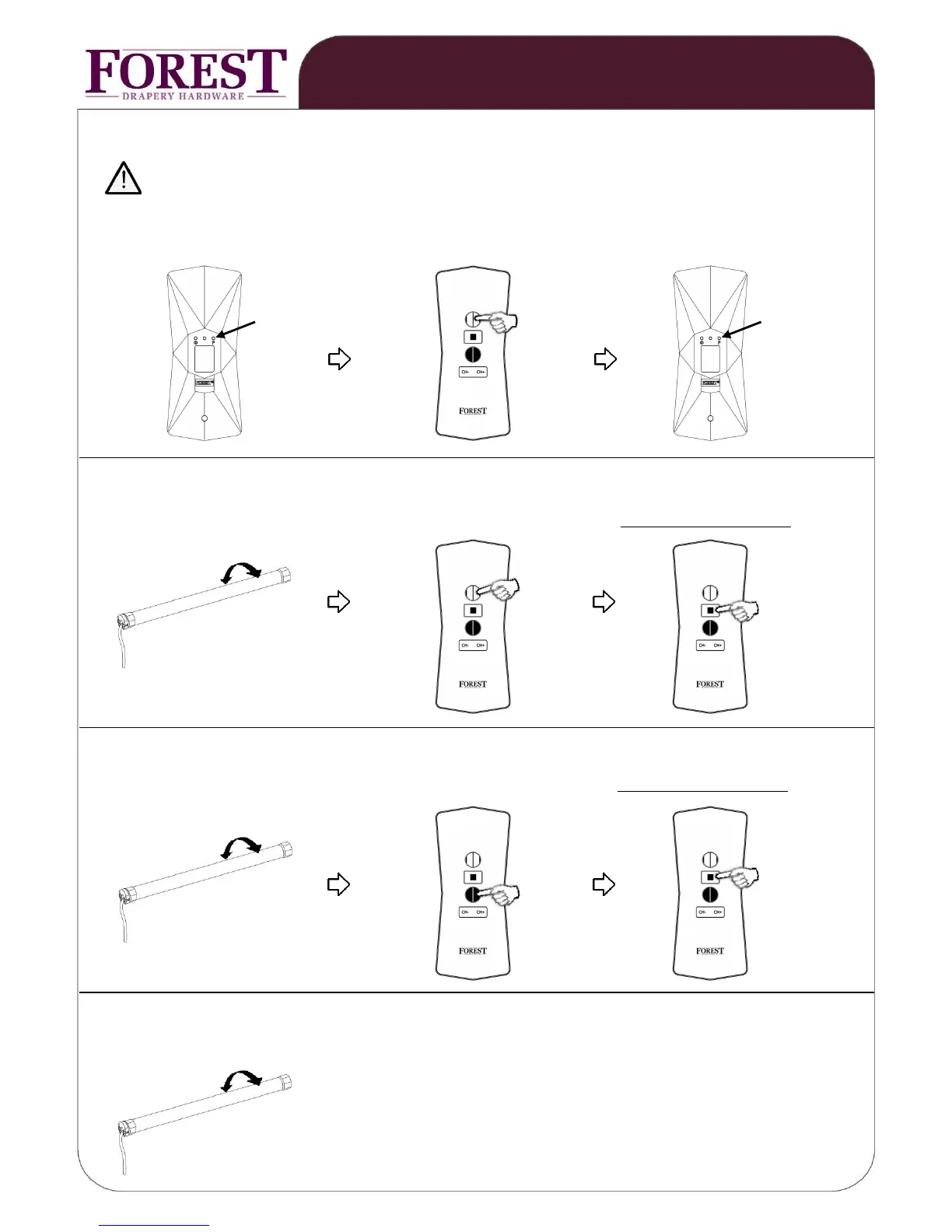

press P button one time press OPEN button one time press P button one time
1x P 1x OPEN 1x P
press STOP button when required
motor will turn adjust to UPPER position height is reached. Press STOP button
to acknowledge 5 times slowly for 1 seconds to confirm
5x STOP
(slowly)
press STOP button when required
motor will turn adjust to LOWER position height is reached. Press STOP button
to acknowledge 5 times slowly for 1 seconds to confirm
5x STOP
(slowly)
motor will turn to acknowledge,
limits have been set successfully.
