23
Service / Repair

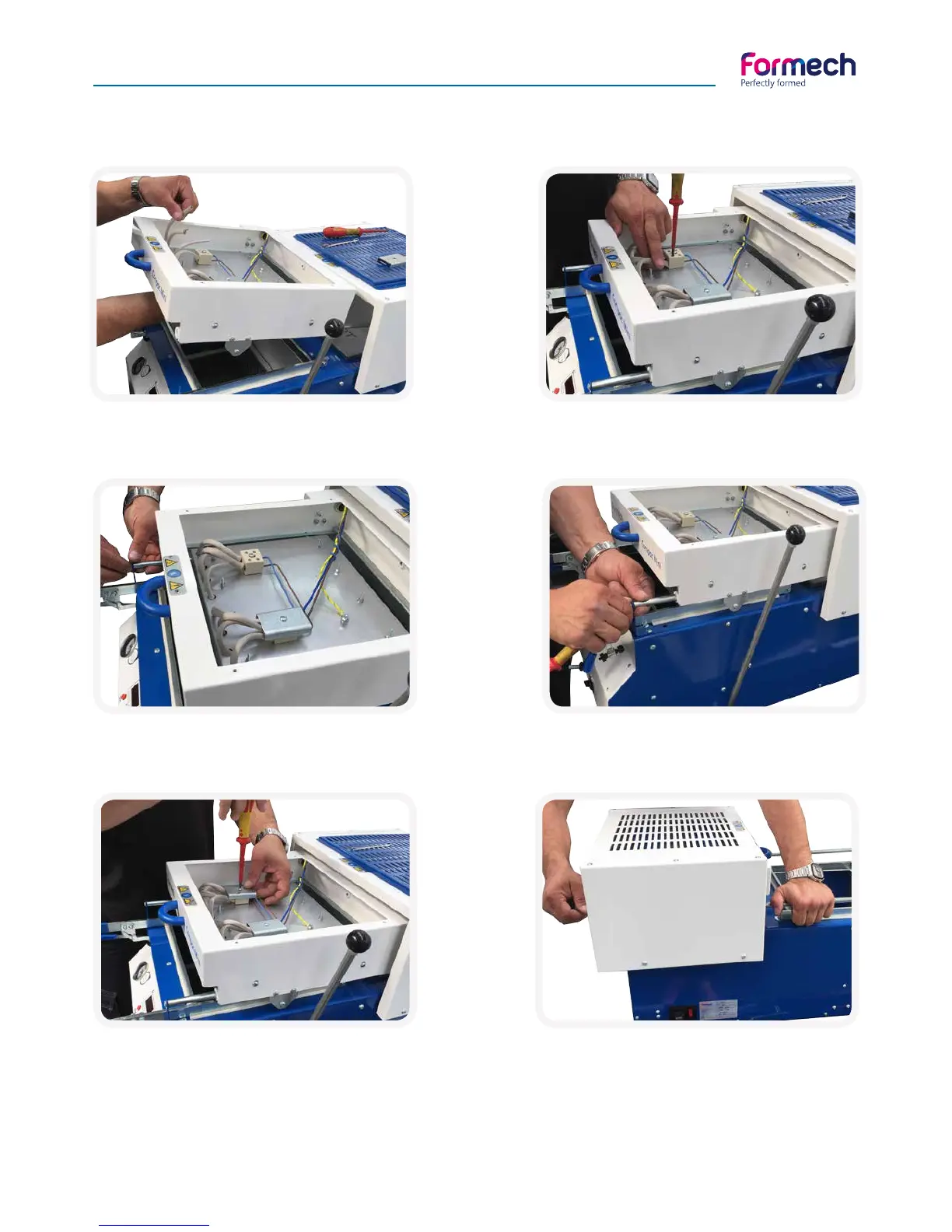

Replacing a heating element (continuation)
17- Put back the two screws from the heater bars and tighten.
18- Replace the terminal block cover and
make sure all is fully tightened.
19- Tighten the two screws at the back of
the machine and make sure that the two
bars are correctly lined up with the back of
the machine.
15- Put back the loose insulation sleeves. 16- Replace the element wires in the connec-
tor block and tighten all connections surely.
