Formech FM660 - General Arrangement & Features; Machine Specifications

6

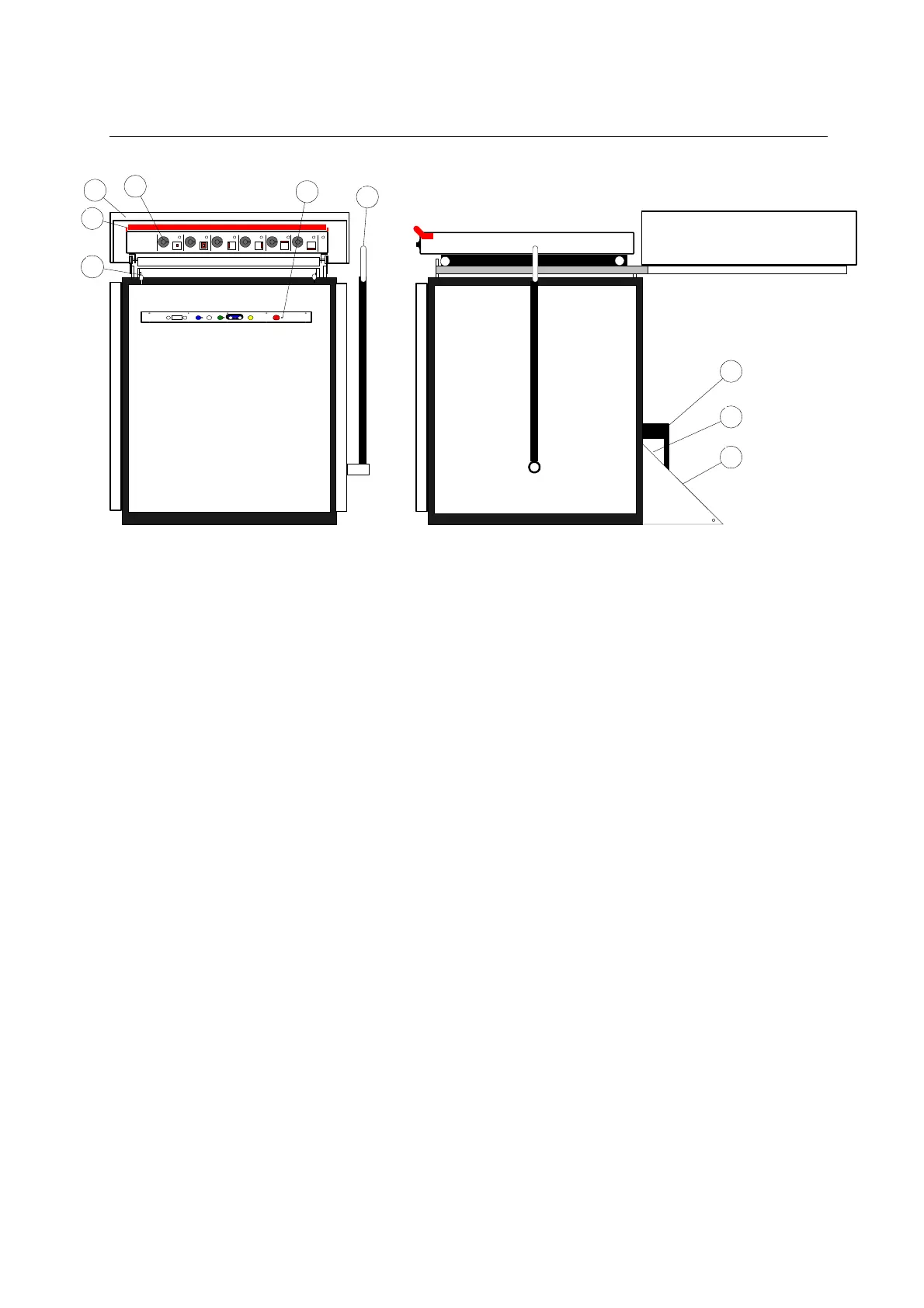

General Arrangement Formech FM660
Features
1 Material clamp 6 Drape table lever
2 Heater movement handle 7 Electrical Box & Main Switch
3 Heater safety guard 8 Vacuum filter
4 Heater zone controller and neon 9 Stabiliser attachment
5 Control panel
Mechanical specifications Electrical specification
Material size 660mm x 660mm Standard voltage 220/240V S/ Phase
Forming area 620mm x 620mm 380/415V 3/ Phase
Depth of draw 400mm Standard frequency 50/60Hz
Mat. thickness 6.0mm max. Standard max Power 7550W
Overall height 1280mm
Overall depth 1900mm Pneumatic specification
Overall width 940mm
Weight 260Kgs Compressed air-80PSI / 6 bar
Optional extras
550W cooling fan system
Pneumatic table (Depth of draw, 300mm)
Reducing windows –450mm x 450mm / 300mm x 300mm / 150mm x 150mm
Reel feed gantry
Primary Particle Filter with Drain.
O
N
O
F
F
Form ec
h
FM 660
1
2
3
4
6
5
7
8
9
