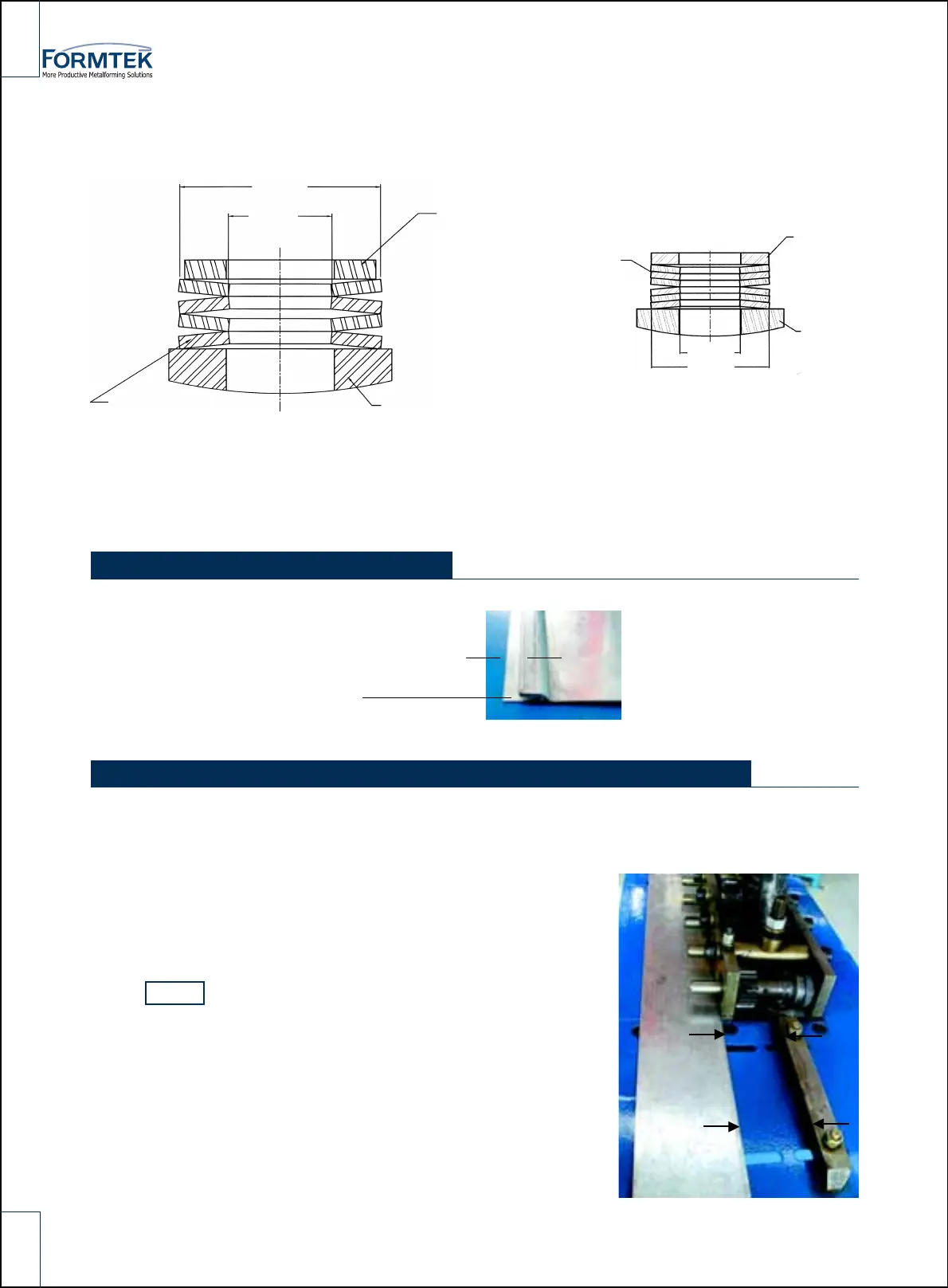

FORMTEK Lockformer LK-20 - Hammer-Over Edge Adjustment (Entrance Gauge)

09
ø31.5(OD)
ø16.3(ID)
91166A310
SADDLE WASHER 7X635
96475K295
8 WASHERS
2 WASHERS PER GROUP
2 GROUPS PER STACK
STACK AS SHOWN
SCALE DOWN TO 256˚
HOLD DOWN SPRING WASHERS
HAMMER-OVER EDGE
¡ł
¡ł
FEMALE PITTSBURGH LOCK
HAMMER-OVER EDGE ADJUSTMENT (ENTRANCE GAUGE)
The width of the FEMALE Pittsburgh lock hammer over edge is adjustable.
Move the FEMALE PITTSBURGH lock entrance gauge to produce a larger or smaller hammer
over edge.
NOTE: There should be a deep scribe or scratch mark in
the paint along the side of the entrance gauge and exit
gauge. This is the original line location of the gauge from
the factory. Slight adjustment from this line may be
required to increase or decrease the hammer over edge
width.
62mm
61mm
SCALE DOWN TO 306˚
5S355
96445K236
3 WASHERS PER GROUP
2 GROUPS PER STACK
91455A130
SMALL SPRING WASHERS
ø16(OD)
ø8.2(ID)
