Connect to input power
4. 6.
Choose between High Frequency (HF) start
or Lift start.
7.
Adjust amperage per
material thickness
Connect TIG torch lead
to gas (100% Argon)
5.
Connect TIG torch and
ground clamp
3.
ELECTRODE IS ALWAYS ELECTRICALLY
HOT WHILE IN TIG MODE
FIND MORE INFORMATION AT
FORNEYIND.COM
TIG TROUBLESHOOTING TIPS
Low weld output or poor fusion
Welder should be the only thing plugged into the circuit.
Frequently tripping circuit breaker or exceeding
duty cycle
• Not recommended for this machine.
• Output is DC only which is not recommended for TIG
welding aluminum.
Aluminum welding

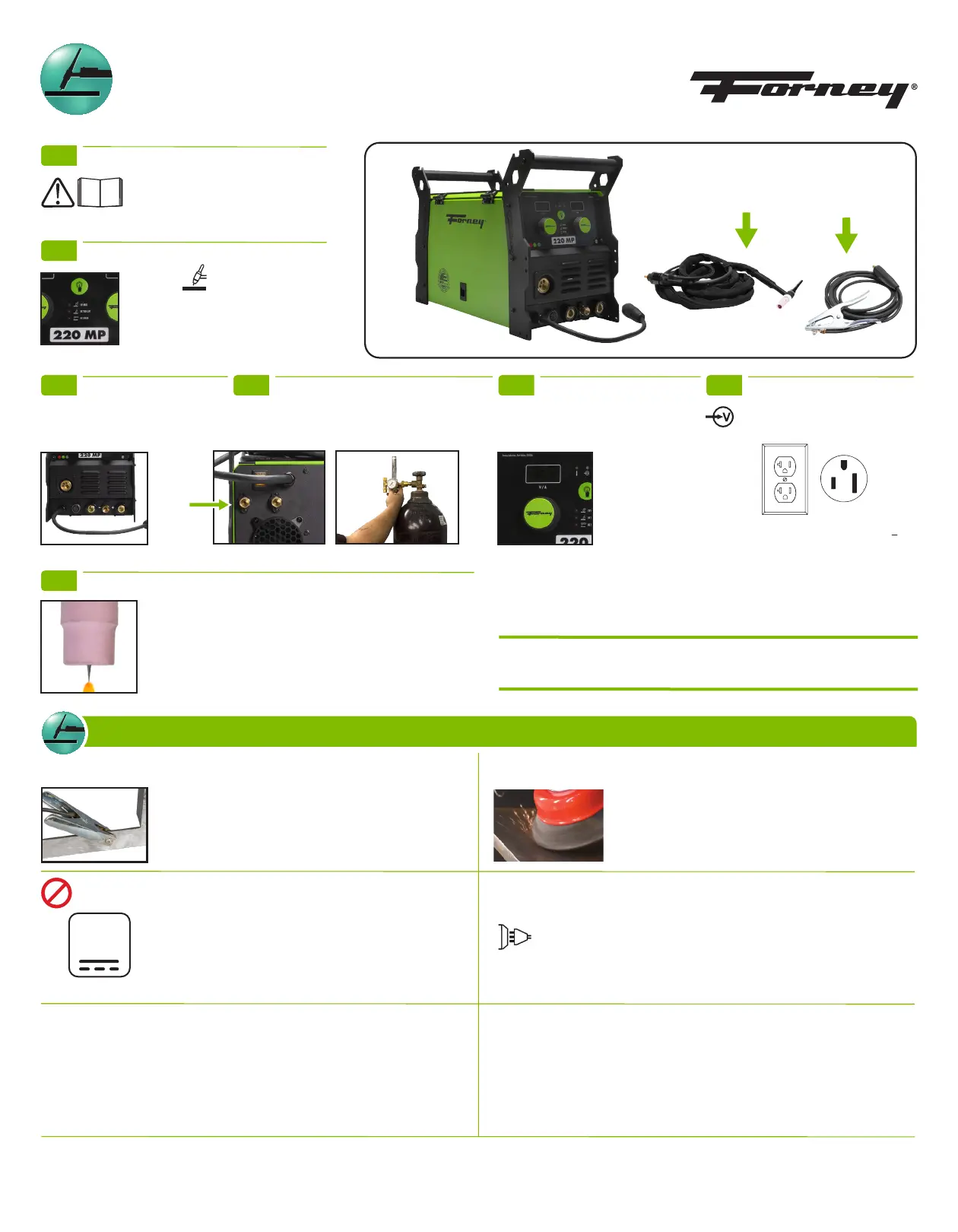

TIG QUICK START GUIDE
220 MP WELDER (NOT RECOMMENDED FOR ALUMINUM)
ITEM# 410
Read user manual
Select process
2.
1.
DC
ONLY
TIG Torch
Ground
Clamp
• Usually due to low input power.
• Welder should be only thing plugged into circuit.
• Avoid using extension cords. If one must be used, it must be 3 conductor #8 AWG.
• Generators must be a minimum 10,000W continuous output with no low-idle
function (or low-idle off), 5% THD Max.
208-240V
QUESTIONS OR TROUBLE? Contact Forney Industries at 1-800-521-6038 customerservice@forneyind.com
forneyind.com
• Generator OK with continuous output >
5,000 W (120V) or 10,000 W (230V)
• Extension cord: #12 AWG (120V) or #8
AWG (230V) or larger. 25’ (8m) or shorter
extension cords recommended
To ensure maximum quality, always clean
and prepare welding surfaces.
Workpiece Preperation
Connect ground clamp to clean, bare metal. No rust,
paint or other coatings. Attach the ground clamp
directly to the workpiece if you are experiencing issues.
Workpiece grounding
• Usually due to low input power.
• Welder should be only thing plugged into circuit.
• Avoid using extension cords. If one must be used, it must be 3 conductor #12 AWG
or larger up to 25 feet.
• Generators must be a minimum 5,000W continuous output with no low-idle function
(or low-idle off), 5% THD Max.
Low weld output or poor fusion
110-120V
* TIG Torch sold separately
To Next Page
