Use and maintenance ATOMIZER ON VISION MULTIFUNCTION MACHINE

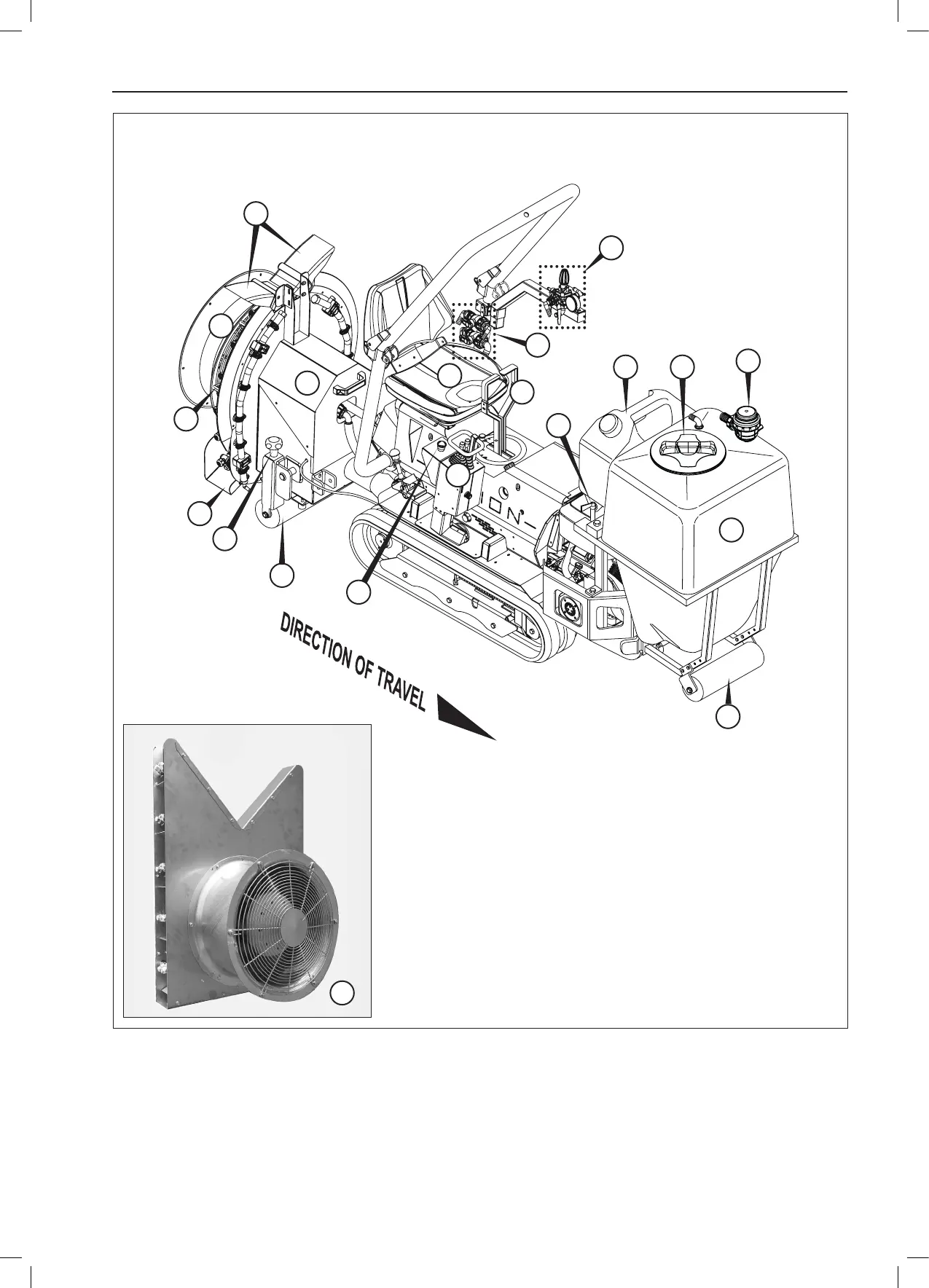

Fig. 3 - Atomizer group installed on Vision multifunction machine - Main components.
1) Driving levers of the machine. - 2) Lift control group and hydraulic outlets. - 3) Fan group. - 4) Product tank group. - 5) Pressure
regulator group. - 6) Product entry hatch in the tank. - 7) Filter. - 8) Emergency stop button. - 9) Front stabilizer roller. - 10) Hand
washing water tap. - 11) Opening/closing taps. - 12) Adjustable upper directional deectors. - 13) Spray nozzles. - 14) Fixed lower
deectors. - 15) Stabilizer roller knob. - 16) Rear stabilizer roller. - 17) Hand washing water tank. - 18) Seat of driver with safety
belt. - 19) Protection pump for spraying pump and fan transmission. - 20) Vertical bar atomizer.
18
12
16
14
15
5
11
6
7
10
4
3
9
17
19
8
13
2
1
20
