Use and maintenance ATOMIZER ON VISION MULTIFUNCTION MACHINE
DANGER: The VISION multifunction machine
is a reversible driving machine, which means
that the driver’s seat can be turned and rever-
sed. DURING OPERATION, IT IS STRICTLY
FORBIDDEN TO ROTATE THE SEAT, SO THE
ATOMIZER TANK MUST ALWAYS BE IN THE
FRONT POSITION AND THE FAN IN THE REAR
POSITION.
CAUTION: THE OPERATOR MUST BE AT
LEAST 18 YEARS OLD AND HAVE TO BE
EQUIPPED FOR THE TREATMENT OF PLANT
PROTECTION PRODUCTS. The Operator must
be t and able to read and understand what is
written in this manual. The Operator also has
to use it taking into account the existing rules
on accident prevention, conditions of use and
characteristics of the machine.
WARNING: The machine is designed to allow
for safe use making inoffensive moving parts
through the use of xed and mobile guards
and safety equipment. The Manufacturer the-
refore declines all responsibility for damage
caused as a result of tampering with the
protective and safety equipment.
1.4.3 NOISE LEVEL
Thesoundlevel(airbornenoise)wasdetectedwiththeengine
runningatfullspeedandidling,withtheOperatorinthedriving
position,followingtheENISO3744/1997standard,andthe
followinglevelswerefound:
-Soundpressurelevelattheoperatorposition .94,00dB(A)
-Soundpowerlevel .........................................109,00dB(A)
-Guaranteedsoundpowerlevel ..................... 112,00dB(A)
WARNING: THE HIGH LEVEL OF AIR NOISE,
PRODUCED BY THE ATOMIZER WHEN IT IS
RUNNING, REQUIRES THE USE OF PROTEC-
TIVE SYSTEMS OF THE HEARING SYSTEM
SUCH AS EARMUFFS, CAPS, ETC.
1.4.4 VIBRATION LEVEL
ThemachinehasacushionedseatandanOperator’sbody
supportedbyspecialanti-vibrationmountingsforthedriverthat
createsacomfortablesituationfordrivingandmaneuvering
thevehicle.
However,thevibrationleveldetectedwiththeenginerunningat
85%oftheratedspeeddeclaredbyitsmanufacturerandwith
theatomizerinmotionwasfoundtobe2.5m/s2.
1.5 TECHNICAL FEATURES
Nominalcapacityoftheproducttank .......................l 115
Washingwatertankcapacity ....................................l 15
Emptyweightofthetank+fan ............................ Kg 130
Max. usage pressure ............................................bar 30
Fan power consumption ......................................kW 3.8
Totalabsorbedpower .......................................... kW 5.6
Fan rotation speed
 (withtheengineat3600rpm) .............rpm/1’ 2800
PTO speed ......................................................rpm/1’ 1100
Fan diameter ......................................................mm Ø 400
Dimensions ..........................................................see Fig. 2

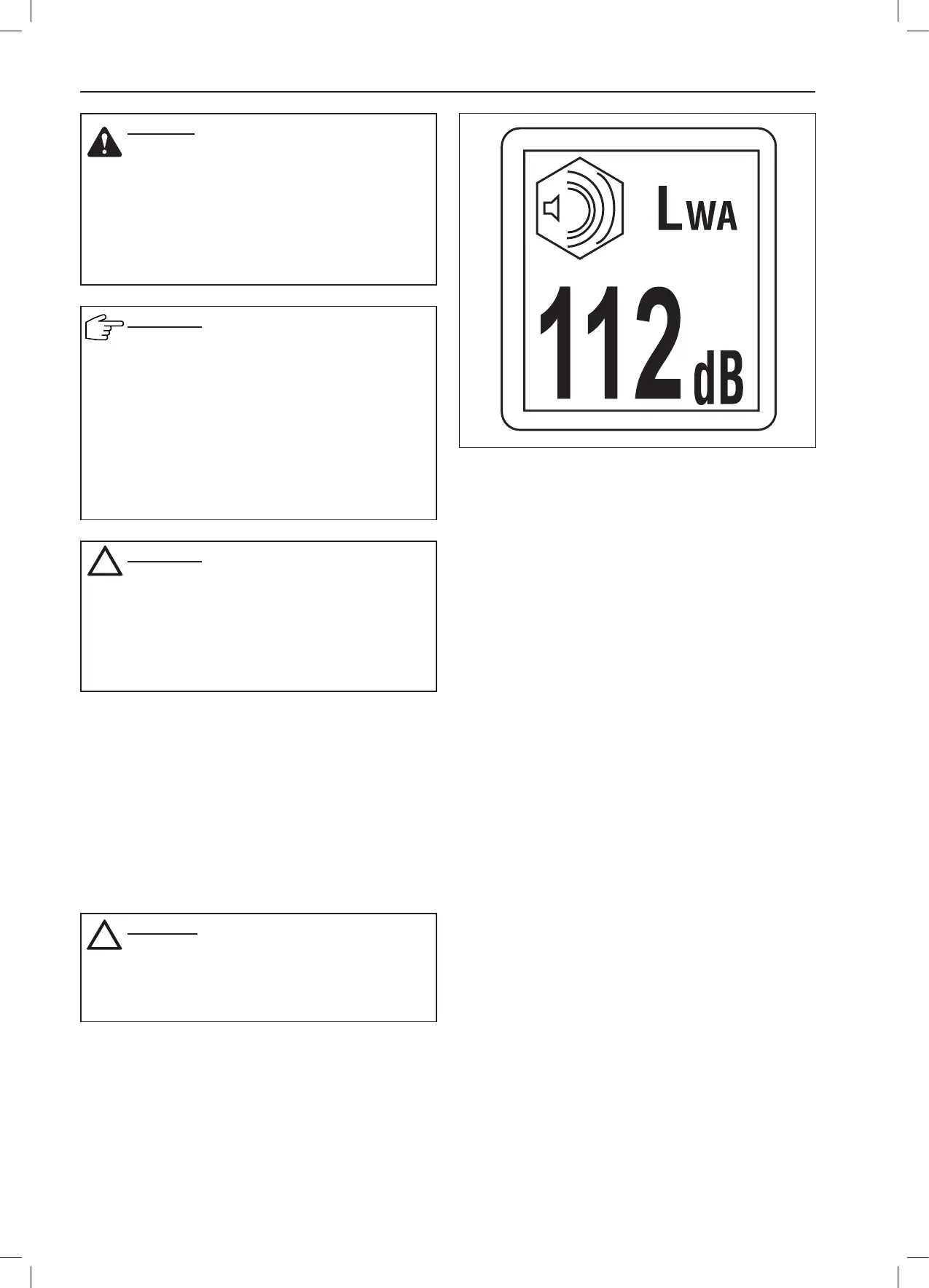

Fig. 4 - Label indicating the sound power level
guaranteed
