Basic Connections
2

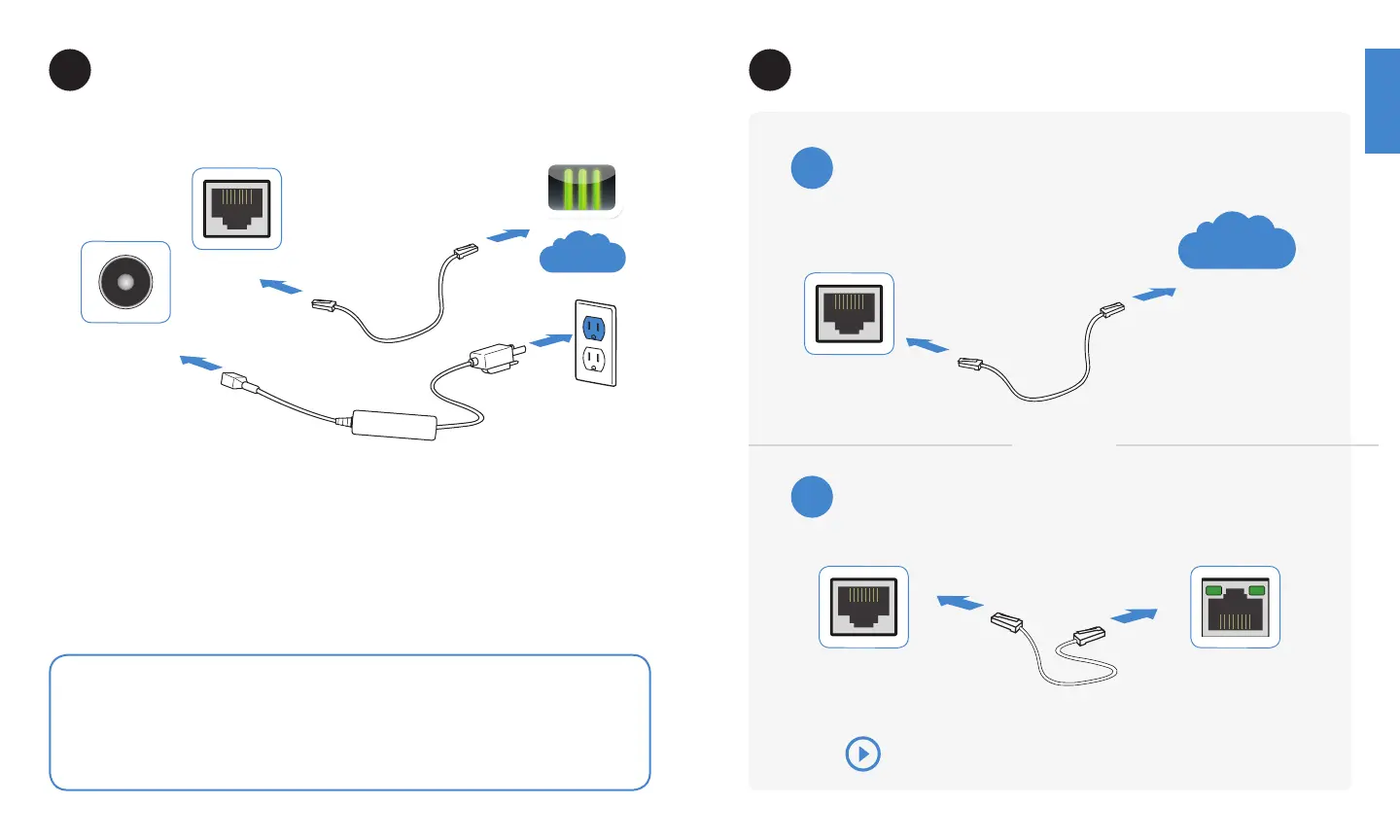

Connect your FortiAP device to a FortiGate controller or an Internet connection.
If you are using Power over Ethernet (PoE), ensure that the cable is connected to an
applicable port on your FortiGate device or PoE injector.
Optionally, connect your device to a power outlet using the optional power adapter.
Optional Power
Connection
Ethernet Port
Internet
Caution: Adequate grounding must be provided to the FortiAP unit in compliance
with your local electrical code or regulations.
Warning: This device complies with IEEE 802.3af PoE specification. Do not use any
PoE injectors that are not IEEE 802.3af compliant as they may damage your device.
FortiAP Setup
3
Cloud provisioning with FortiCloud
FortiGate secured on local network
OR
A
B
Ethernet Port Ethernet Port
FortiAP FortiGate
FortiCloud
Internet
FortiAP
Ethernet Port
FortiAP Setup Video
http://video.fortinet.com/video/92/basic-fortiap-setup
To Next Page
