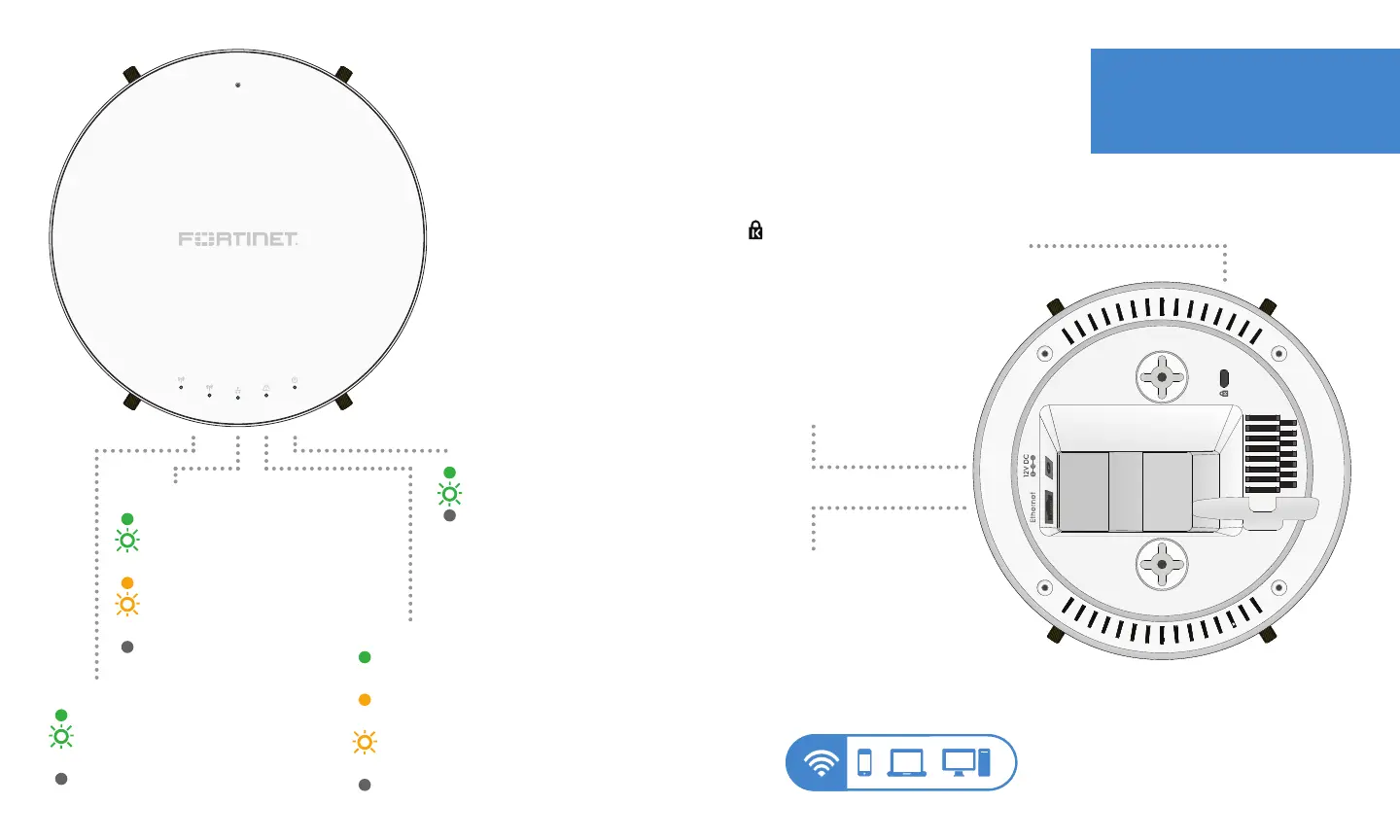

FortiAP 223C
2
1
Power
Green: The unit is on
Flashing Green: Booting up
Off: The unit is off
Status
Green: The unit is being managed by a
FortiGate controller
Amber: A FortiGate controller has been
found but the unit is not being managed
Flashing Amber: Error in connecting to
the FortiGate controller
Off: FortiGate controller not found
Wireless Radios
Green: Wireless radio enabled
Flashing Green: Transmitting &
receiving data
Off: Wireless radio disabled
Ethernet Port
Green: Connected at 1Gbps
Flashing Green: Transmitting &
receiving data at 1Gbps
Amber: Connected at 10/100Mbps
Flashing Amber: Transmitting &
receiving data at 10/100Mbps
Off: No link established
Power
Optional power adapter
connection
12V DC, 1.25A
Ethernet Port (RJ-45)
Gigabit Ethernet port with PoE
powered device (PD) support
Wireless Radios
Radio 1: 802.11 b/g/n at 300Mbps
Radio 2: 802.11 a/n/ac at 867Mbps
Kensington Security Slot
Anti-theft security slot for connecting
lock-and-cable apparatus
