Fortinet FortiGate 60D User Manual

1010 11

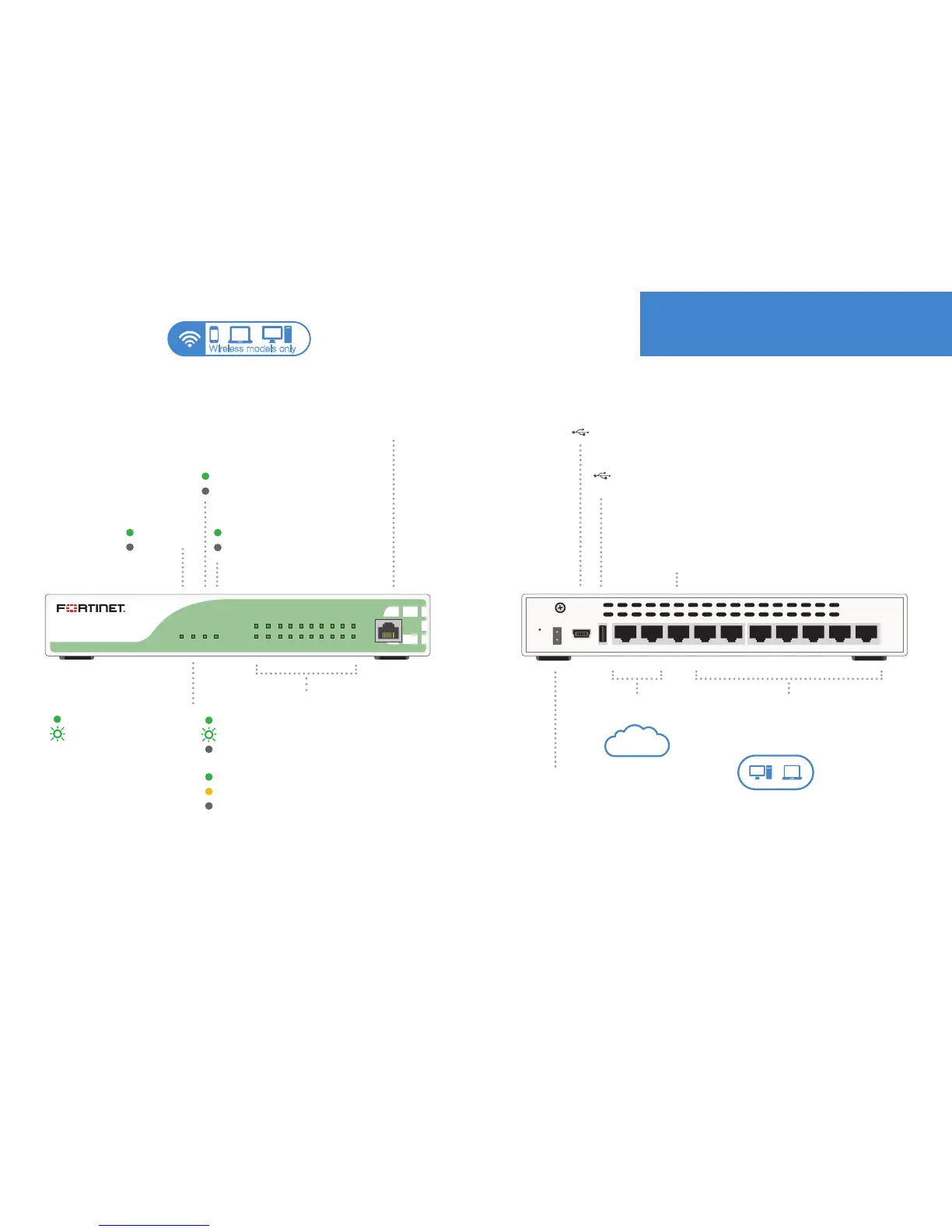

Device Guide
FortiGate/FortiWiFi 60D Non-PoE Models
Wireless models only
USB (USB A)
USB server port
USB MGMT (USB mini-B)
USB client port for management
LAN Ports 1 - 7 (RJ-45)
Gigabit Ethernet 7-port switch
connection for the internal network
WAN 1 & 2 (RJ-45)
Power Connection
12V DC, 2.5A
100-240V AC, 50-60Hz adapter
DMZ (RJ-45)
Optional connection to a DMZ network/device
or to other units for High Availability (HA)
Status
Green: Normal
Flashing green: Booting up
Power
Green: On
Off
LAN, WAN & DMZ Ports Link/Activity
Green: Connected
Flashing green: Transmitting & receiving data
Off: No link established
LAN, WAN & DMZ Ports Speed
Green: Connected at 1Gbps
Amber: Connected at 100Mbps
Off: Connected at 10Mbps or not connected
WiFi (Wireless models only)
Green: Connected
Off: No Connection
HA
Green: Operating in an HA cluster
Off: Disabled
Internet
Console
Optional connection to the management computer.
Provides access to the CLI
PW R
ST AT US
HA
WA N1 WA N2DMZ
SPEED
LINK/ACT
WIFI
1 2 3 4 5
6
7
CONSOLE
RESET
WAN1WAN2
USBDC+12V
234
USB
MGMT
DMZ 67
1
5
