Installation
Internet
Ethernet Cable
WAN port

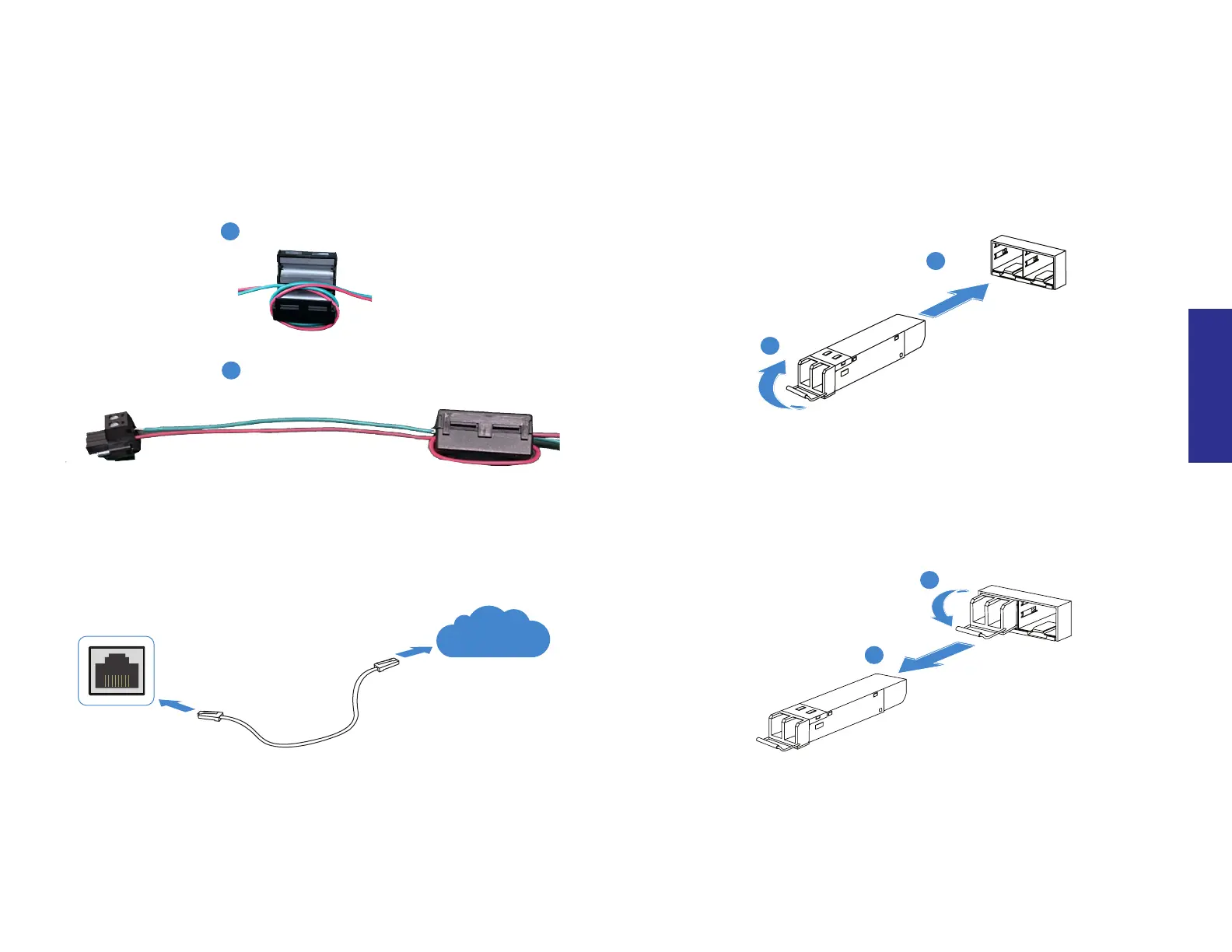

1. Connect the WAN port to an Internet connection using the provided
Ethernet cable
SFP Ports
To install the SFP transceivers:
1. Slide the SFP into the cage socket until it clicks into place
2. Lift the latch to lock the SFP
To install the supplied ferrite cores:
1. Open a ferrite core and loop the power cables around
2. Ensure there is 100mm(3.9in) to 150mm(5.9in) distance between the
ferrite core and power connector, then close the ferrite core
Tx
Rx
Cage Socket
Looped Ferrite Core
Power Cable Distance
100mm(3.9in)

150mm(5.9in)
Cage Socket
Latch
SFP
SFP
1
1
2
2
To remove the SFP transceivers:
1. Lower the latch to unlock the SFP
2. Carefully pull the SFP out of the cage socket
Internet Connections
Ferrite Core Installation
1
2
