Installation
Wall Mount Option

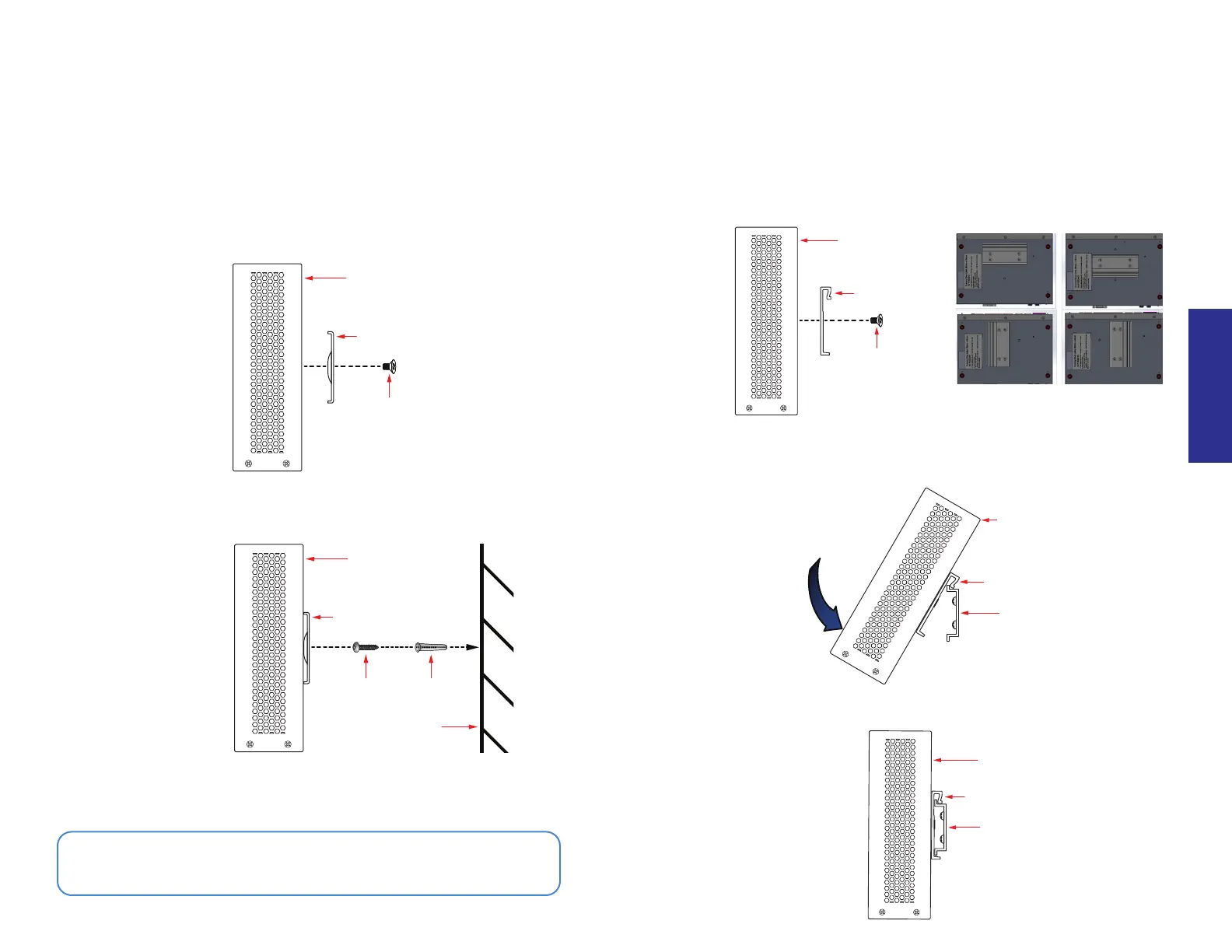

To attach the unit to a wall:
1. Mark the location on the wall where the anchors will be located
2. Drill holes into the wall, then insert the provided anchors into the holes
3. Screw the two screws provided into the two anchors, leaving enough of
the screw exposed to ensure that the unit can be mounted
4. Connect the wall mount bracket to the bottom of the device using the
provided bracket screws
5. Mount the device onto the screws and ensure that it is mounted
securely
Wall Mount Bracket
Bracket Screw
FortiGate
Wall
Wall Mount Bracket
Wall Mount
Screw
Wall
Mount Anchor
FortiGate
WARNING: To ensure adequate air flow, the minimum radiating
distance between mounted devices is 100mm(3.9in)
The FortiRugged-60F supports DIN rails with 35mm(1.4in) x 15mm(0.6in)
and 35mm(1.4in) x 7.5mm(0.3in) sizes . The minimum radiating distance
between DIN rail devices is 100mm(3.9in).
1. Connect the DIN rail bracket to the bottom of the device using the
provided bracket screws. Note there are 4 available bracket positions.
2. Position the bottom of the device directly in front of the DIN rail, ensuring
that the top of the DIN rail bracket hooks over the top of the DIN rail
3. Rotate the device until the bottom of the DIN rail bracket sits against the
bottom of the DIN rail
DIN Rail Option
DIN Rail Bracket
Bracket Screw
FortiGate
DIN Rail Bracket
DIN Rail
FortiGate
DIN Rail Bracket
DIN Rail
FortiGate
Multiple DIN Bracket Positions
