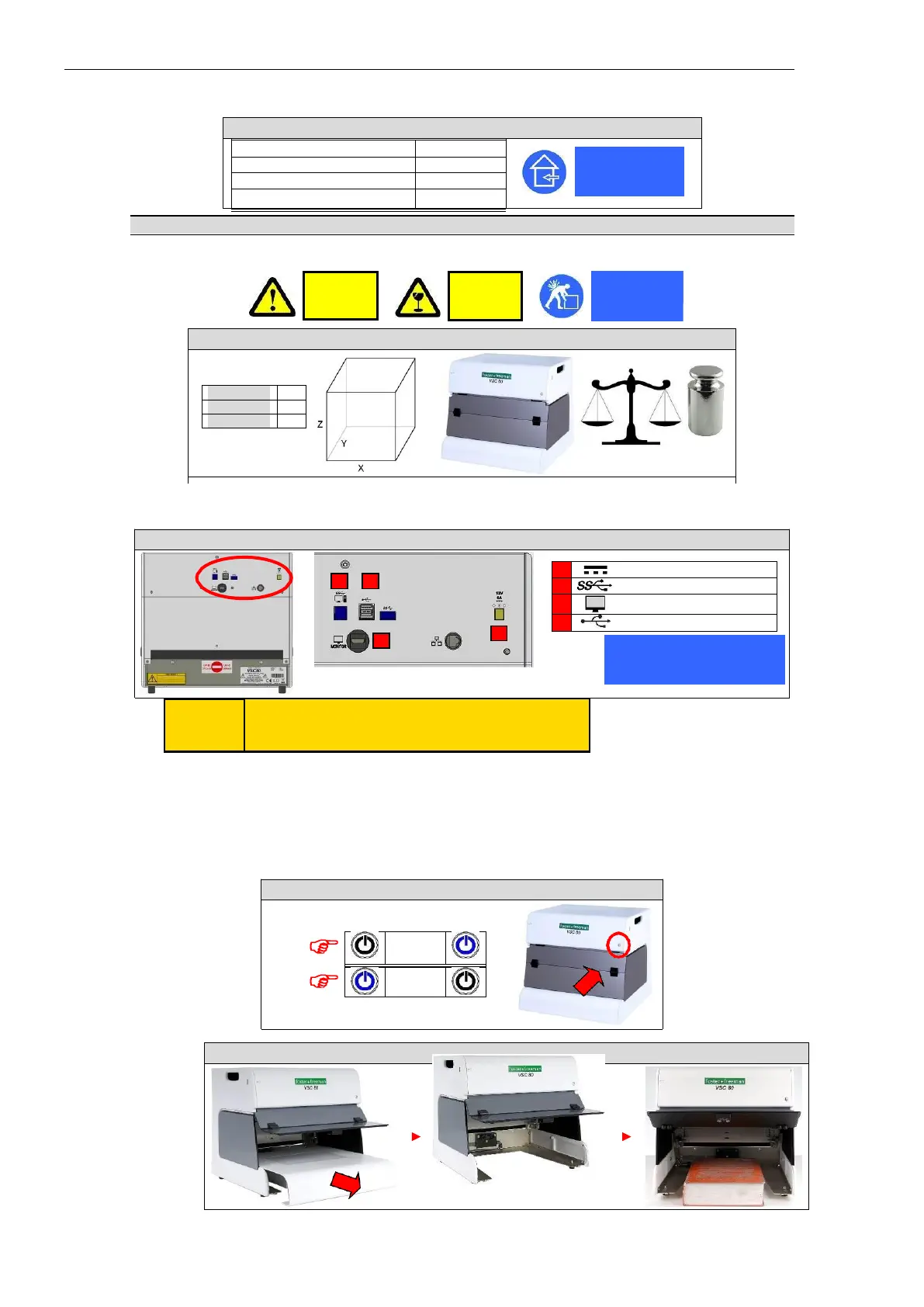

Foster + Freeman VSC 80 - Control Switches; Electrical Connections; Mechanical Specification; Environmental Specification

8
VSC
®
80: Main unit (On/Off control)
> 3 s
Environmental specification
Environmental specification
VSC
®
80: Main unit (Environmental specification: BS EN 61010-1:2010)
Location
Indoor use only
Indoor use only
Altitude
2000 m (Max)
Ambient temperature
5 – 40
o
C
Ambient humidity, RH% (5 – 31
o
C)
80%* (Max)
Mechanical specification
VSC
®
80: Main unit (Mechanical specificatio
Width: X (mm) 395
Depth: Y (mm) 375
Height: Z (mm) 365
n)
12.5 kg
Electrical connections
See also: Quick Start Guide (Getting started) (p. 02-1).
◄
VSC
®
80: Main unit (Connection sockets)
1 DC input: 12 V DC; 5 A
2 4
2 PC system: SS-USB (3.0)
3 Touchscreen monitor: HDMI
4 Control connection: USB (2.0)
1
3
Equipment must be earthed
CAUTION: Possible optical radiation hazard. Do not stare at LEDs.
NOTICE: UV emitted from this product. Minimise exposure to eyes or skin.
Control switches
On/Off control (DC power)
Switch on
Switch off
* Decreases linearly to 50% within the temperature range 31 – 40
o
C
VSC
®
80: Removing the document platen
CAUTION
Heavy
CAUTION
Fragile
Lift correctly
