FOSTEX A2
2 TRACK RECORDER COMPRESSOR/LIMITER
FOSTEX AB FOSTEX A2
COMPRESSOR/LIMITER CASSETTE DECK

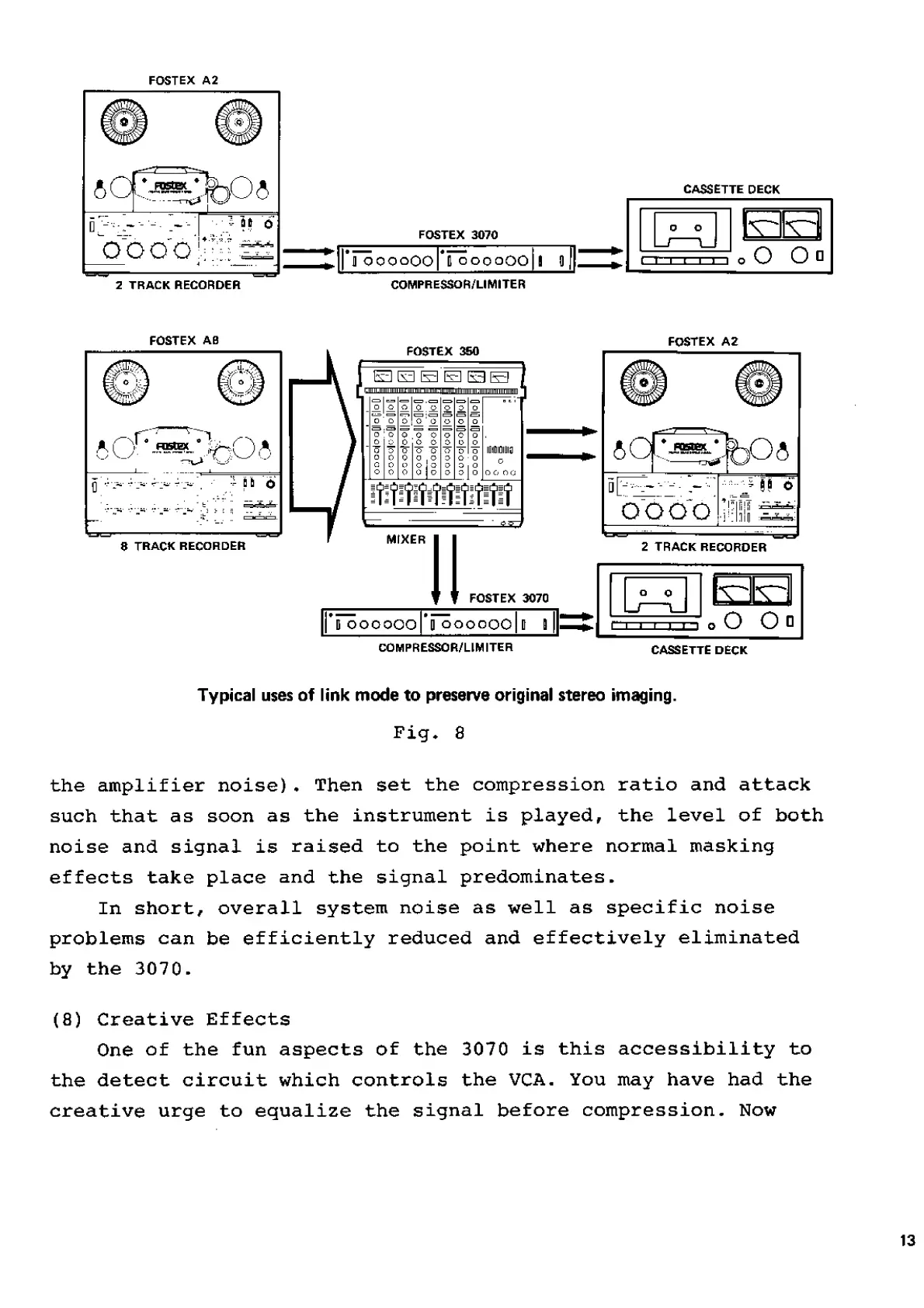

Typical uses of link mode to preserve original stereo imaging.
Fig. 8
the amplifier noise). Then set the compression ratio and attack
such that as soon as the instrument is played, the level of both
noise and signal is raised to the point where normal masking
effects take place and the signal predominates.
In short, overall system noise as well as specific noise
problems can be efficiently reduced and effectively eliminated
by the 3070.
(8) Creative Effects
One of the fun aspects of the 3070 is this accessibility to
the detect circuit which controls the VGA. You may have had the
creative urge to equalize the signal before compression. Now
13
