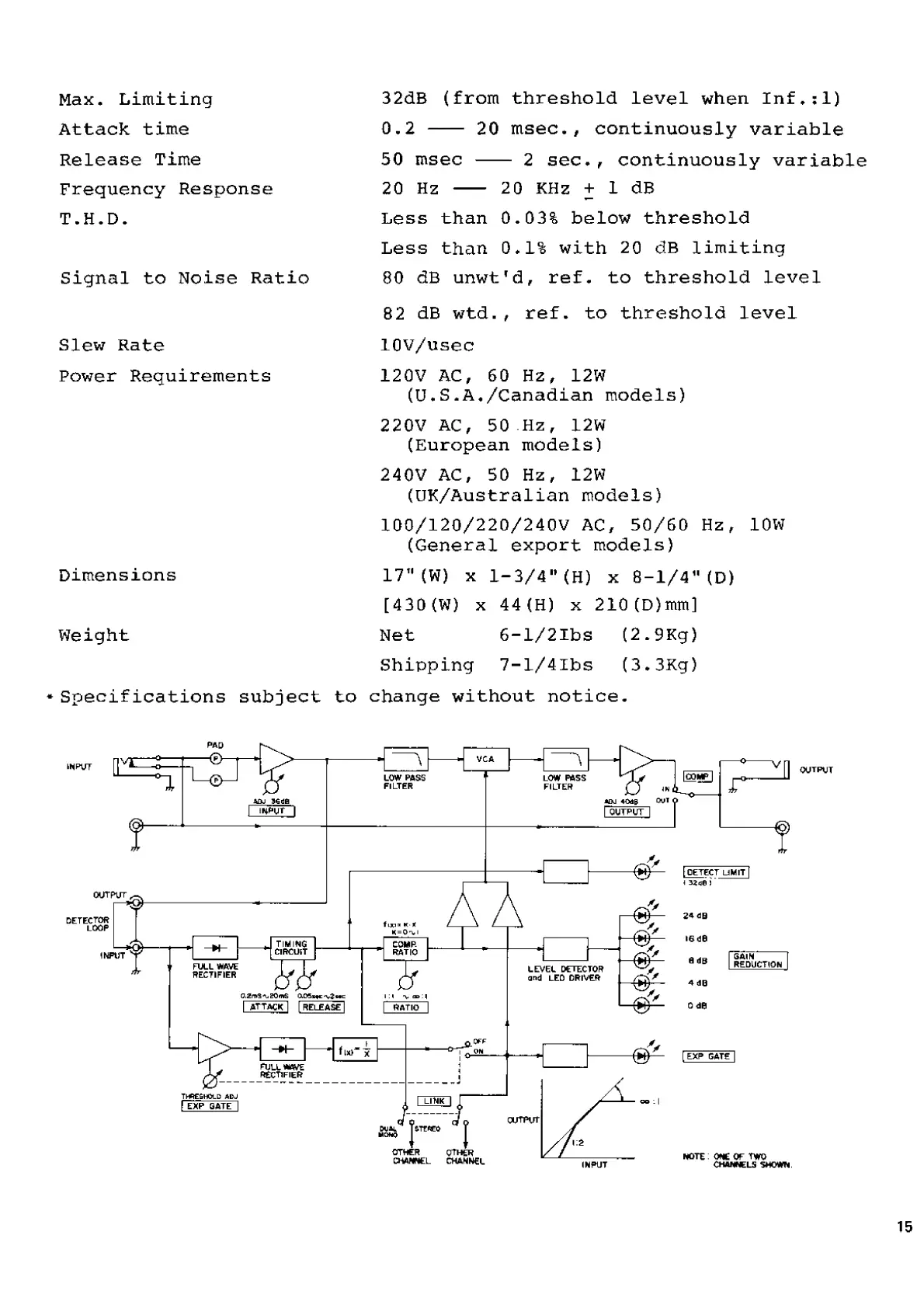

Fostex 3070 - Page 17

Max. Limiting
Attack time
Release Time
Frequency Response
T.H.D.
Signal to Noise Ratio
32dB (from threshold level when Inf.:l)
0.2 - 20 msec., continuously variable
50 msec - 2 sec., continuously variable
20 Hz - 20 KHz + 1 dB
Less than 0.03% below threshold
Less than 0.1% with 20 dB limiting
80 dB unwt'd, ref. to threshold level
82 dB wtd., ref. to threshold level
Slew Rate
Power Requirements
Dimensions
Weight
lOV/usec
120V AC, 60 Hz, 12W
(U.S.A./Canadian models)
220V AC, 50 Hz, 12W
(European models)
240V AC, 50 Hz, 12W
(UK/Australian models)
100/120/220/240V AC, 50/60 Hz, 10W
(General export models)
17"(W) x 1-3/4"(H) x 8-1/4"(D)
[430(W) x 44(H) x 210(D)mm]
Net 6-l/2Ibs (2.9Kg)
Shipping 7-l/4Ibs (3.3Kg)
* Specifications subject to change without notice.
15
