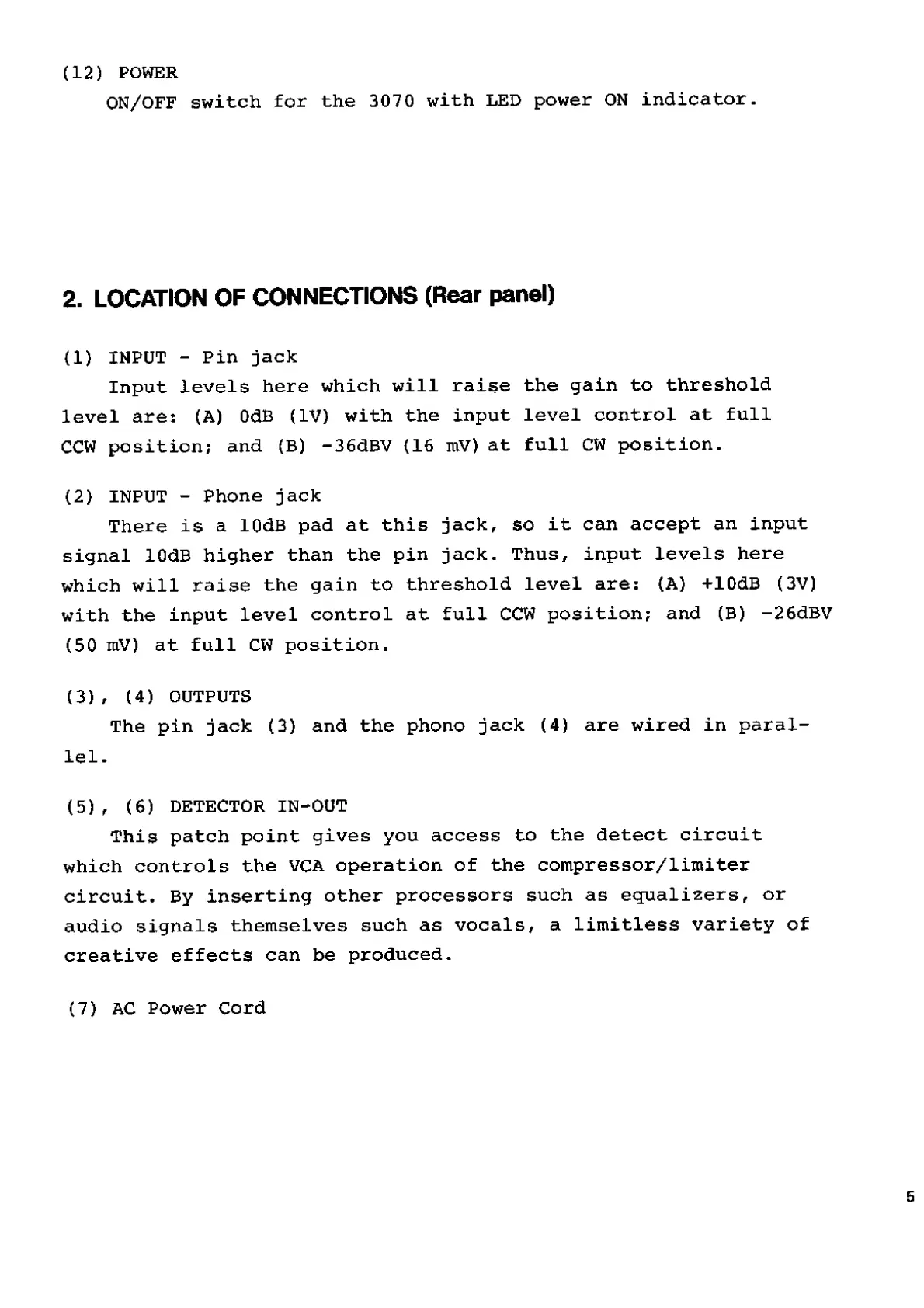

(12) POWER
ON/OFF switch for the 3070 with LED power ON indicator.
2. LOCATION OF CONNECTIONS (Rear panel)
(1) INPUT - Pin jack
Input levels here which will raise the gain to threshold
level are: (A) OdB (IV) with the input level control at full
CCW position; and (B) -36dBV (16 mV) at full CW position.
(2) INPUT - Phone jack
There is a lOdB pad at this jack, so it can accept an input
signal 10dB higher than the pin jack. Thus, input levels here
which will raise the gain to threshold level are: (A) +10dB (3V)
with the input level control at full CCW position; and (B) -26dBV
(50 mV) at full CW position.
(3) , (4) OUTPUTS
The pin jack (3) and the phono jack (4) are wired in paral¬
lel.
(5), (6) DETECTOR IN-OUT
This patch point gives you access to the detect circuit
which controls the VGA operation of the compressor/limiter
circuit. By inserting other processors such as equalizers, or
audio signals themselves such as vocals, a limitless variety of
creative effects can be produced.
(7) AC Power Cord
