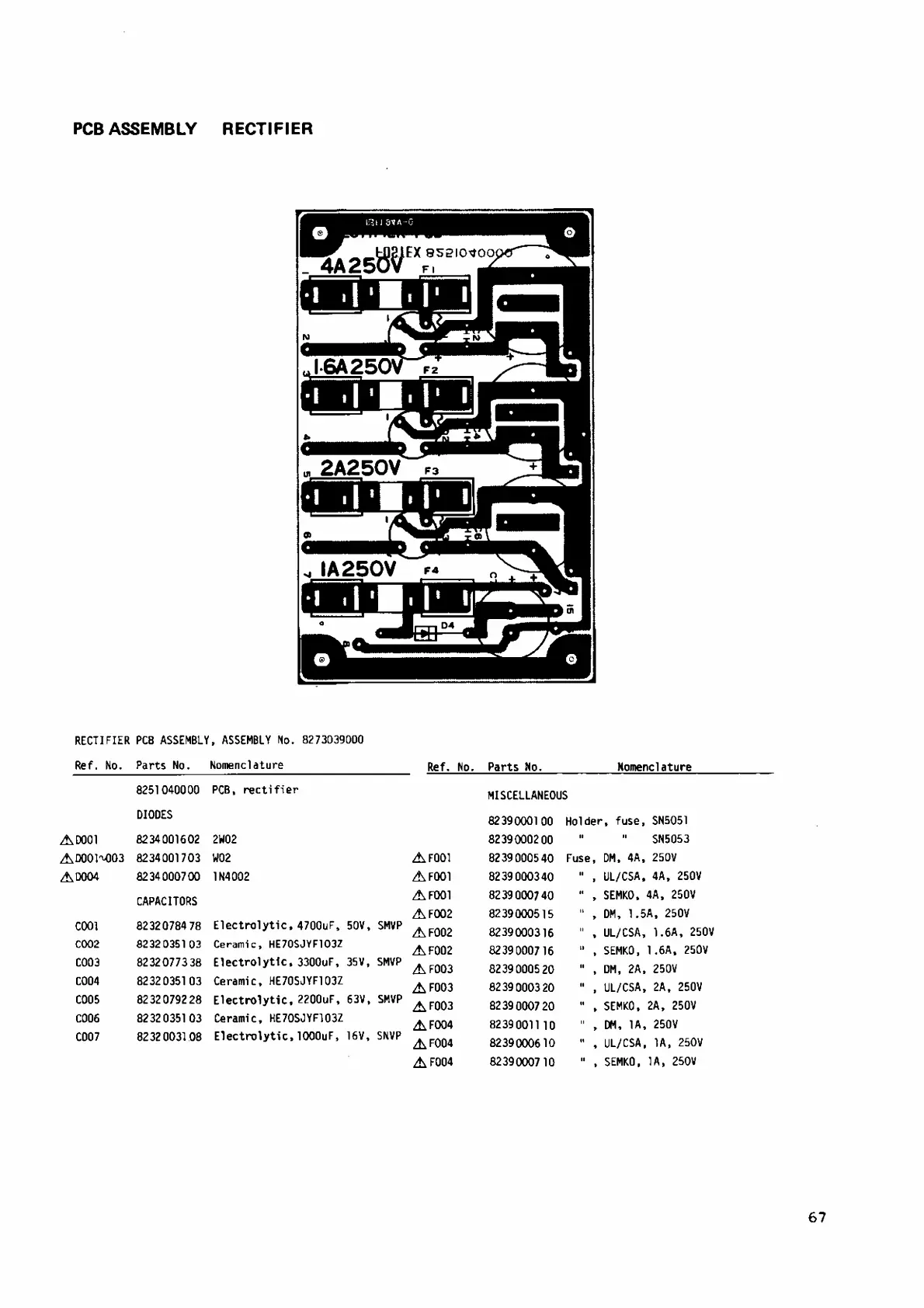

PCB ASSEMBLY RECTIFIER
RECTIFIER PCB ASSEMBLY, ASSEMBLY No, 8273039000
Ref. No, Parts No,
Nomenclature
Ref. No. Parts No, Nomenclature
8251040000
PCB, rectifier
MISCELLANEOUS
DIODES
8239000100 Holder, fuse, SN5051
AD001
8234001602
2W02
8239000200
" SN5053
AM0M03
8234001703
W02
AF001
8239000540 Fuse,
DM. 4A, 250V
AD0O4 8234000700 1N4002 A fooi
8239000340 " ,
UL/CSA, 4A, 250V
CAPACITORS
A FOOT
8239 0007 40 " ,
SEMKO. 4A, 250V
AF002
8239000515 11 ,
DM, 1 ,5A, 250V
COOI 8232078478
Electrolytic, 4700uF, 50V,
SHVP AF002
8239000316 " ,
UL/CSA, 1,6A, 250V
C002 8232 0351 03 Ceramic, HE70SJYF103Z
AF002
8239000716 11 ,
SEMKO, 1 ,6A, 250V
C003 8232 0773 38
Electrolytic. 3300uF, 35V,
WP AF003
8239000520 " ,
DM, 2A. 250V
C004 8232 0351 03
Ceramic, HE70SJYF103Z
AF003 8239 0003 20 " ,
UL/CSA, 2A, 250V
C005 8232079228
Electrolytic, 2200uF, 63V, SMVP AF003
8239000720 " , SEMKO, 2A, 250V
C006 82320351 03
Ceramic, HE70SJYF103Z
AF004 82390011 10 " , DM, 1A, 250V
C007
8232003108
Electrolytic, lOOOuF, 16V, SNVP
J\F0Û4
8239000610 " ,
UL/CSA, 1A, 250V
AF004
8239000710 " ,
SEMKO, 1A, 250V
