Fostex A-8 - Page 64

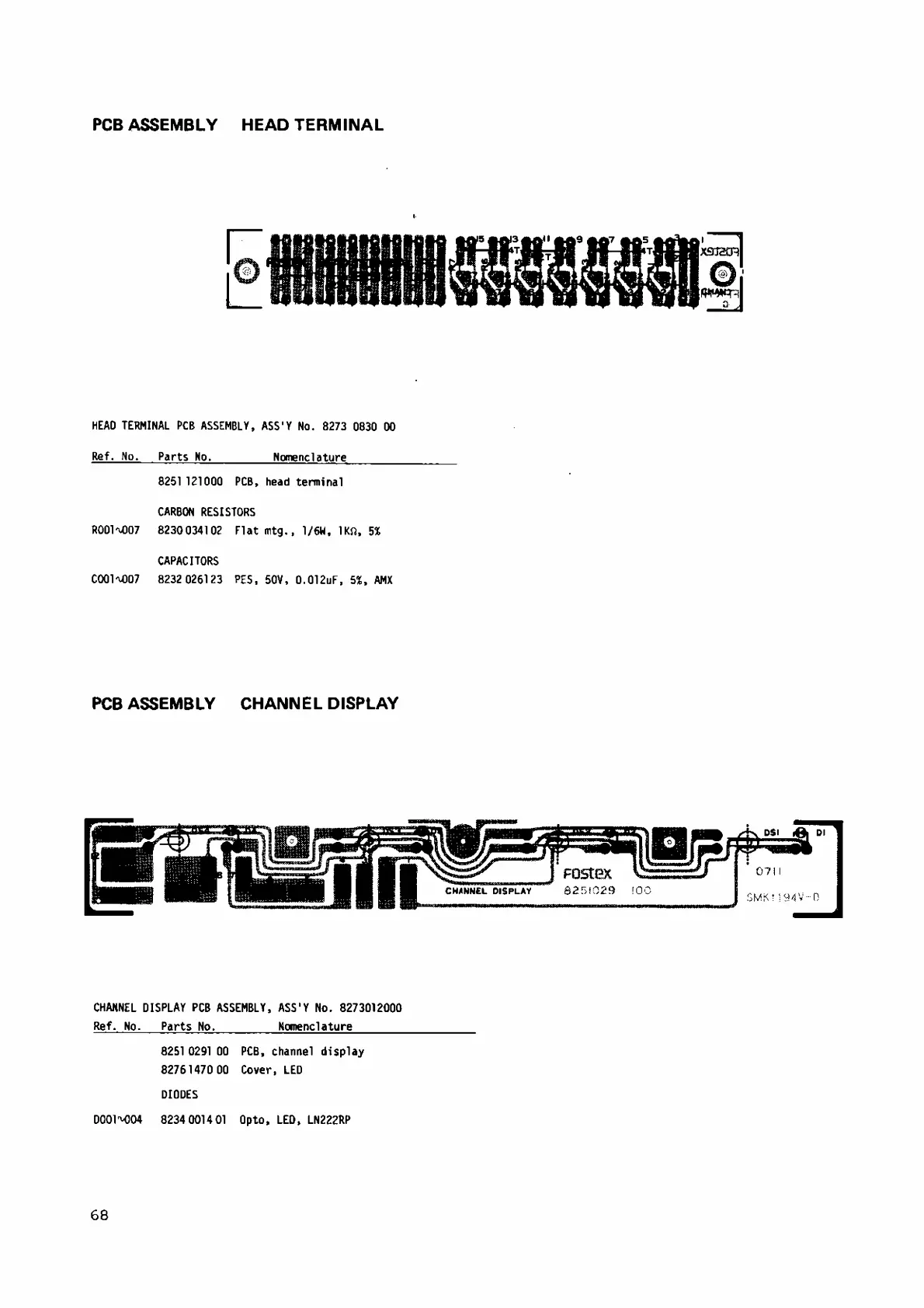

PCB ASSEMBLY HEAD TERMINAL
HEAD TERMINAL PCB ASSEMBLY, ASS'Y No. 8273 0830 00
Ref. No. Parts No.Nomenclature
8251 121000 PCB, head terminal
CARBON RESISTORS
ROOl'vOO? 8230 034102 Flat mtg. , 1/6W, 1 KO, 5%
CAPACITORS
COOl-vOO? 8232 026123 PES, 50V, D.012uF, 5%, AMX
PCB ASSEMBLY CHANNEL DISPLAY
CHANNEL DISPLAY PCB ASSEMBLY, ASS'Y No. 8273012000
Ref. No. Parts No.Nomenclature
8251 0291 00 PCB, channel display
82761470 00 Cover, LED
DIODES
D0O1M1O4 8234001401 Opto, LED, LN222RP
