Fostex PM-SUBmini - PC-1 e Volume Controller Connections

9

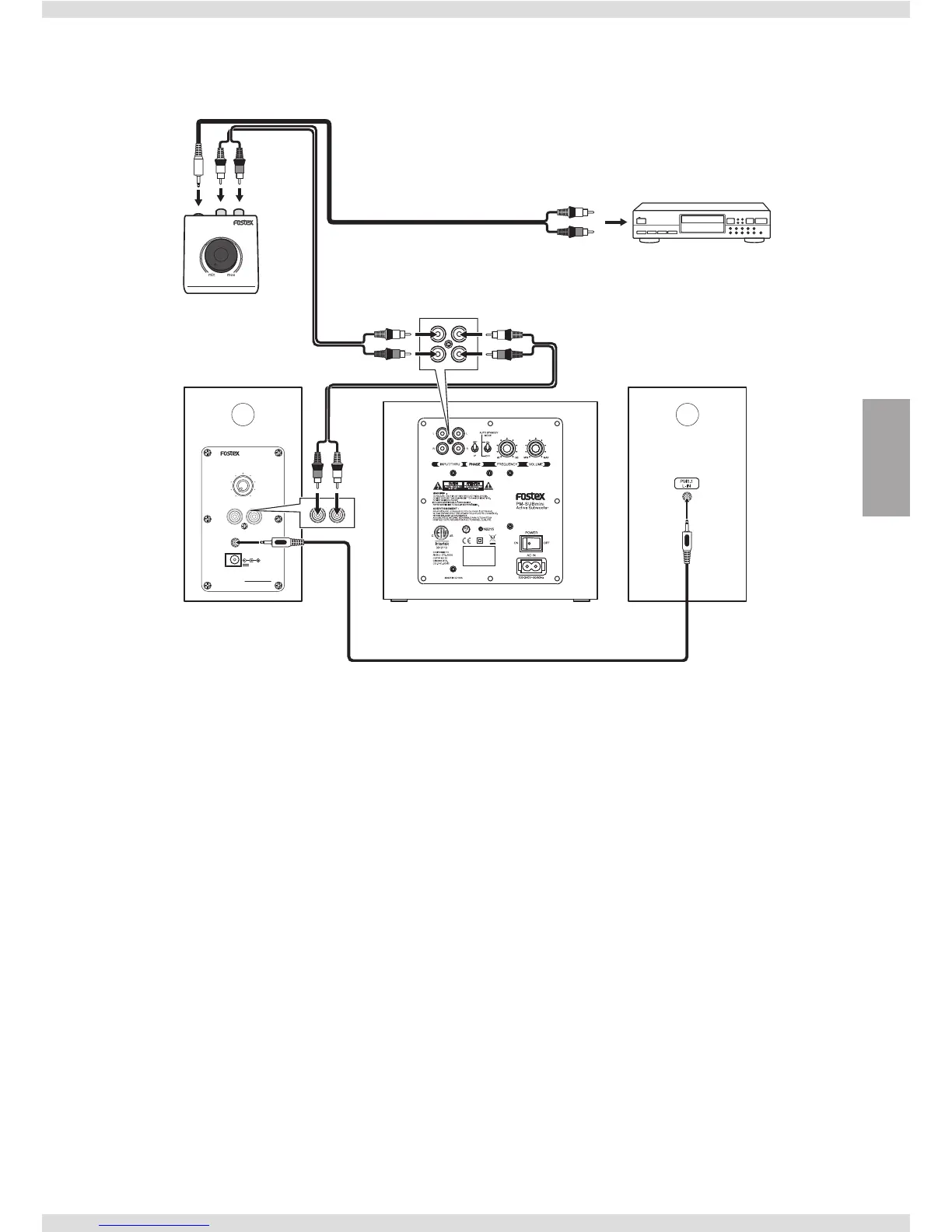

(Connection example)
Personal Active Speaker System
VOLUME
INPUT
L-OUT
SERIAL No.
MADE IN CHINA
DC IN
OFF
R L
MAX.
12V 1.5A
PM0.1
INPUT
R L
Personal active
speaker system
PM0.1, PM0.3, etc
(sold separately)
Volume controller
PC-1e (sold separately)
(This unit)
CD player
RCA pin cable
* Supplied with PC-1e
When using PC-1e
RCA-stereo mini cable
* Supplied with PM0.1 or PM0.3. When connecting to
another active speaker, purchase one separately.
RCA pin cable
* Supplied with this unit
Speaker cable
* Supplied with PM0.1 or PM0.3
