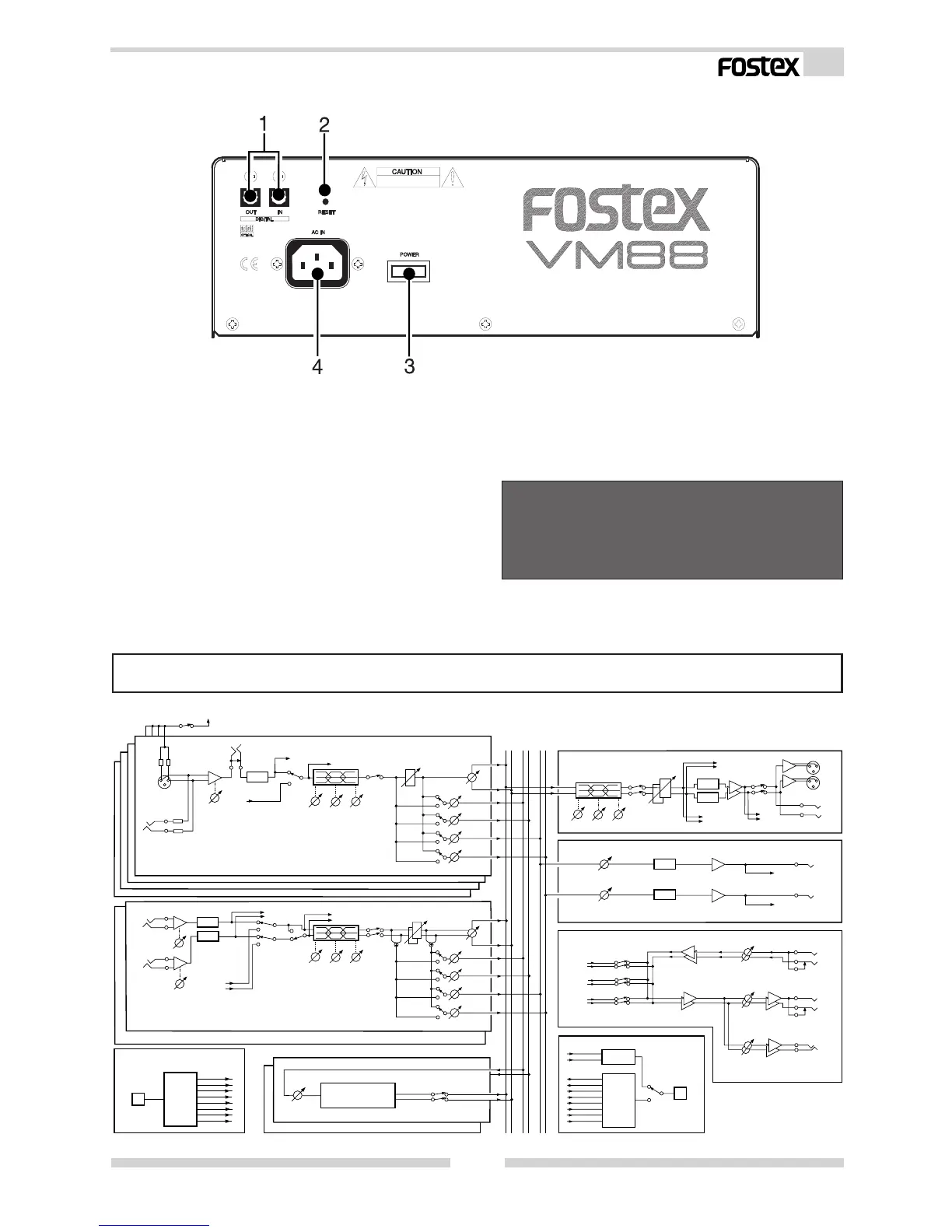

Fostex VM88 - Rear Panel Section; Block Diagram

7
Model VM88 Owner’s Manual
1. Digital in/out jacks
Digital signals (S/P DIF or ADAT) from external digital
equipment can be input to these DIGITAL IN jacks
and then assigned to the desired input channel. S/P
DIF or ADAT digital signals can be output from the
DIGITAL OUT connectors. For details, please refer to
“Connecting peripheral equipment” on page 9 and
“In/out of digital signals” explained in “Normal mix
mode” on page 18.
2. RESET switch
This switch resets the CPU inside VM88.
Refer to page 8 for details.
3. POWER switch
The On/Off power switch.
4. AC IN connector [AC IN]
Plug-in the power cable included with the VM88 here.
Rear panel sectin
< NOTE >
If the VM88 is not to be used for long periods (more
than one month) be sure to remove the power cable
plug from the wall outlet.
CH 1
A/D
LO
HI
PRE/POST
GAIN
PAN
EFF 1
10kHz
100Hz
To DIGI OUT
ASP
DIGITAL EFFECT
EFF 1-2
ST MASTER
D/A
D/A
To METER
ST MASTER
PHONES
(100mW)
ST OUT
(-10dBV)
L
R
L
R
EFF
TRIM
EFF 2
AUX 1
AUX 2
CH ON
1kHz
MID
CH5/6
A/D
LO
HI
PRE/POST
GAIN
PAN
EFF 1
10kHz
100Hz
To METER
EFF 2
AUX 1
AUX 2
CH ON
1kHz
MID
A/D
AUX MASTER
D/A
D/A
AUX 1 OUT
(-10dBV)
ST
12
AUX
12
AUX 1
MASTER
AUX 2
MASTER
EFF 1
MASTER
EFF MUTE
LO
HI
10kHz
100Hz
CH ON
1kHz
MID
MONO/STEREO
(SETUP)
CH7/8
CH 2
CH 3
CH 4
AUX 2 OUT
(-10dBV)
To MON
To MON
DIGI OUT
MON
DIGI IN
To METER
From DIGI IN
INSERT
(-10dBV)
TRIM
TRIM
MON SEL
AUX 2
AUX 1
ST
From AUX 1
From AUX 2
From ST
SUB IN
(-10dBV)
MON OUT
(-10dBV)
L (M)
L (M)
R
R
From ST
From CH1-A/D
From CH2-A/D
From CH3-A/D
From CH4-A/D
From CH5-A/D
From CH6-A/D
From CH7-A/D
From CH8-A/D
S/P DIF
ENCODE
ADAT
ENCODE
S/P DIF
ADAT
(SETUP)
DIGI OUT
To DIGI OUT
DIGI IN
(SETUP)
From DIGI IN
CH5 INPUT
(+4dBu~-40dBu)
CH6 INPUT
(+4dBu~-40dBu)
LINE
(+10dBu~-30dBu)
MIC
(-10dBu~-50dBu)
PHANTOM (SETUP)
-48V
DIGI IN
S/P DIF
or
ADAT
DECODE
(SETUP)
To CH1
To CH2
To CH3
To CH4
To CH5
To CH6
To CH7
To CH8
ST OUT
(+4dBu)
L
R
ST OUT
To MON
To DIGI OUT
Block Diagram
