FOTILE EMS6008 - Installation of Inner Circulating Range Hood

- 22 - - 23 -

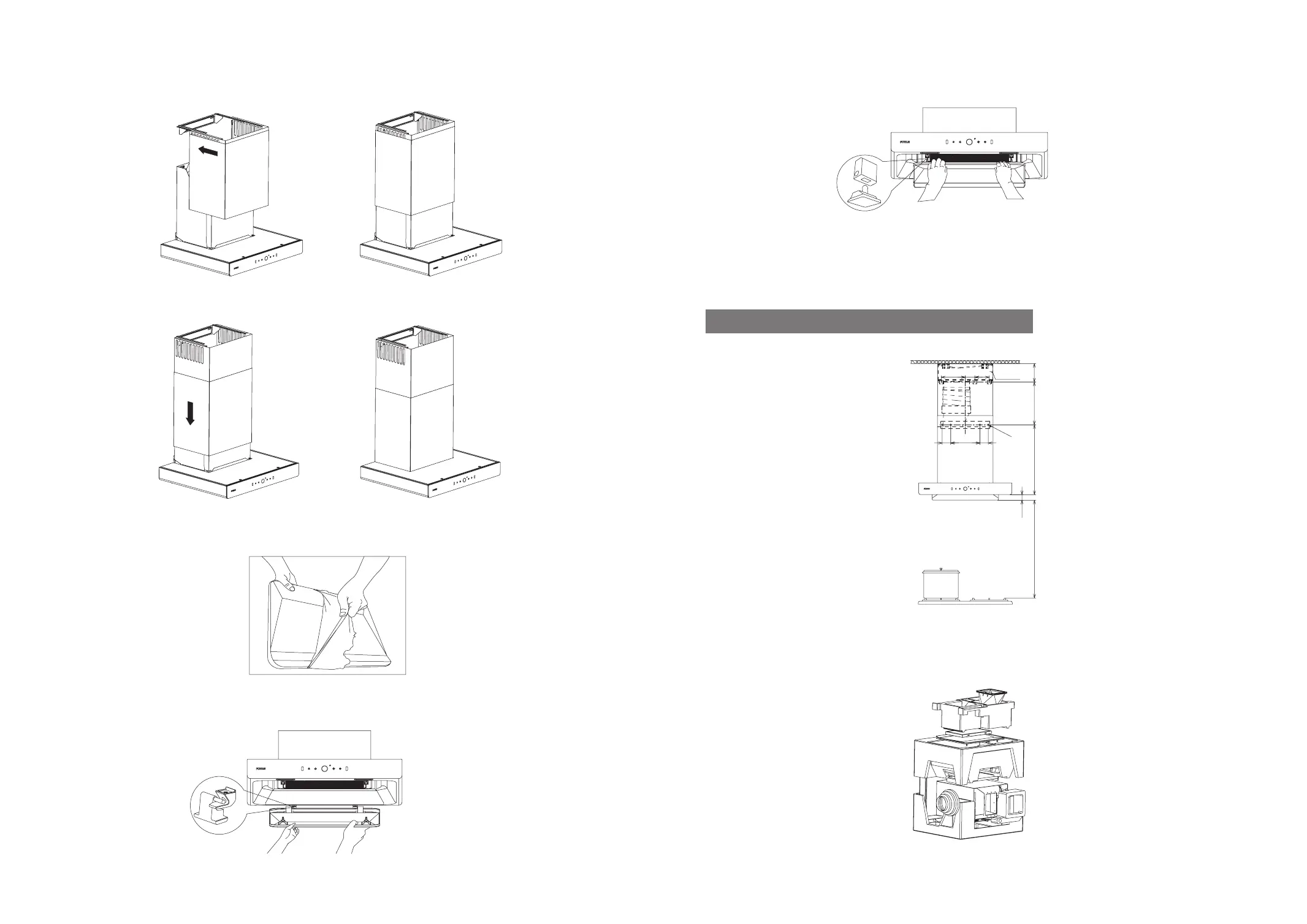

3) Take up the fan cover and the decorative hood at the same time, hang the decorative hood on
the hook of the decorative hood rst, and then simultaneously push the decorative hood and the
fan cover to the end along the cover hook ;
4) Slide the fan cover down slowly, clip the locking tab of the fan cover into the fan frame, and then
insert the fan cover into the gap between the top plate and the fan frame.
13. Installation of the wing plate;
1) Remove the protective lm from the wing plate;
2) Hold the front side of the wing plate tightly with both hand, and putting the left and right hook on
the rear side of the wing plate into the hook frame at the bottom of the exhaust fume collecting
hood;
3) Hold the wing plate with both hands and rotate it upward, clamp the locking tab of the wing
plate into the bump buckle on the exhaust fume collecting hood.
Notes:1.Failure to install all the parts (e.g. wing plate) in accordance with these instruction, may result
re hazard.
2.If it takes much effort to clip the locking tab of the wing plate into the buckle on the exhaust
fume collecting hood, please refer to Point 13 of “Precautions for Installation” in P17 to check
the status of installation surface for the range hood and operate according to the instructions.
Installation of Inner Circulating Type Range Hood
hook
wind-
guidance
box
36
446
54
186
54
153
61 92
118
186~341600-650
Warning :
make sure operate with protective gloves.
1. Open the packing box and remove the main body, and check the packing list (see P15);
