- 26 - - 27 -

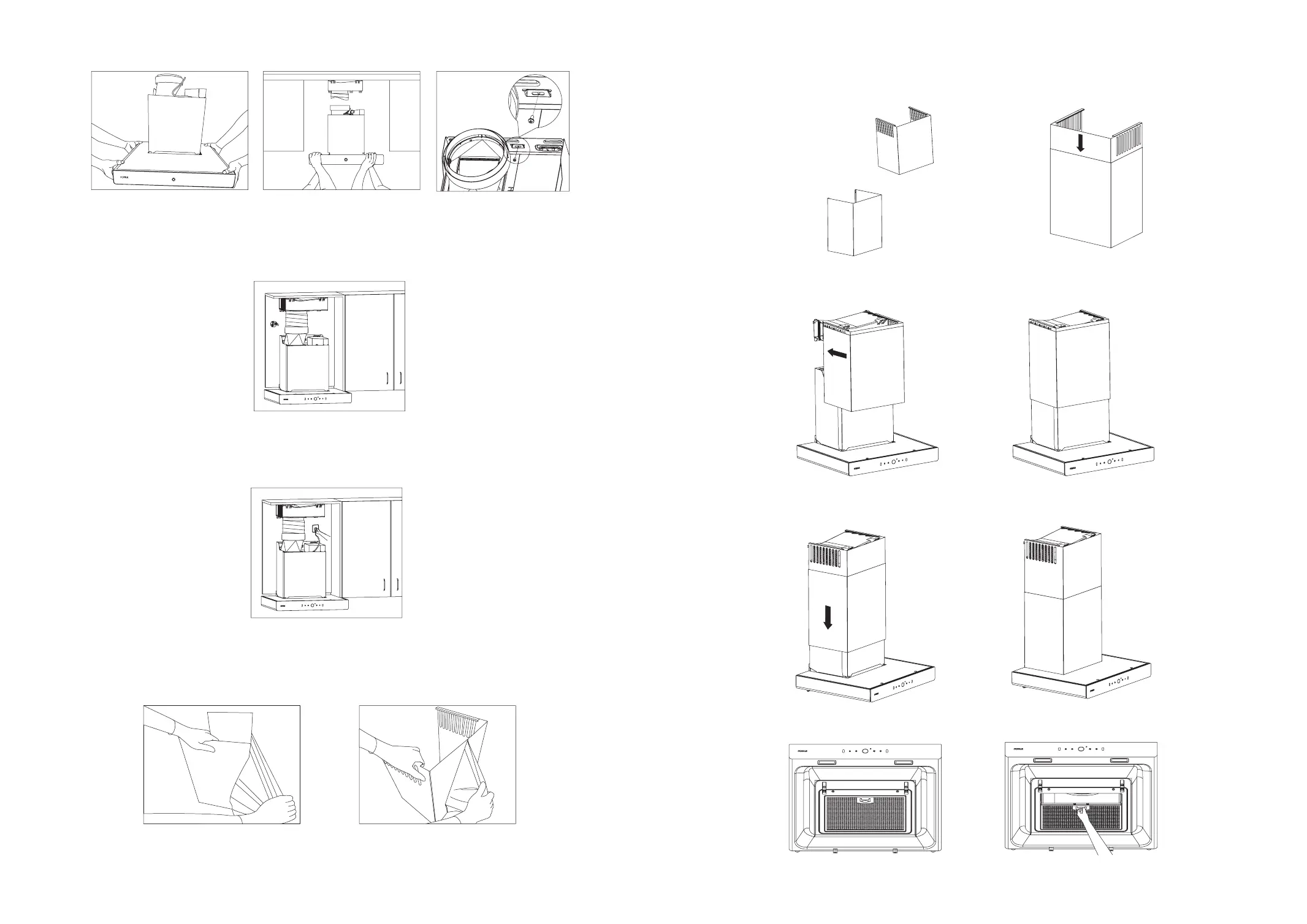

10. Connect and x the exhaust duct: according to the actual installation position of the main body, cut off the
redundant exhaust duct with wire pliers, then x the exhaust duct on the exhaust hood with two exhaust
duct screws ST3.9x9.5
m m
, and wrap and seal with foil tape;
11. Insert the power plug of the main body into the power socket, start the range hood, and check
whether the connection between the exhaust duct and the exhaust hood is sealed in good condition;
12. Install the fan cover and decorative hood :
1) Remove the protective lm from the surface of fan cover and decorative hood;
2) Put the decorative hood into the fan cover;
Fan cover
Decorative
cover
3) Take up the fan cover and the decorative hood at the same time, hang the decorative hood on the
wind-guide box rst, and then simultaneously push the decorative hood and the fan cover to the
end along the wind-guide box;
4) Slide the fan cover down slowly, clip the locking tab of the fan cover into the fan frame, and then insert
the fan cover into the gap between the top plate and the fan frame.
13. Install Carbon Filter:
1) First, detach the locking tab of the front lter directly, and remove the front lter;
