14
-
INDICATES THAT THE MAIN POWER IS ON (GREEN LIGHT)
INDICATES THAT THE ALARM LEVEL IS ON ( RED LIGHT)
INDICATES THAT THE MOTOR IS RUNNING (GREEN LIGH)
CONTEMPORARY LIGHTING INDICATES THAT THE OVERLOAD
PROTECTION IS ON (RED LIGHT)
INDICATES THAT THE THERMAL PROTECTION OF WINDING IS TRIPPED (RED
LIGHT)
KEEPING IT SWITCHED, THE MOTOR STARTS BY-PASSING EVERY ALARM; WHEN
IT IS RELEASED THE MOTOR GET DISCONNECTED .
DISCONNECT THE MOTOR AND RESET THE WORKING PROTECTIONS
WHEN PUSHED, THE AUTOMATIC MODE IS ACTIVATED WHICH IS INDICATED BY
THE GREEN LED; THE BOARD IS READY TO RECEIVE SIGNALS FROM THE
FLOATS, PRESSURE SWITCHES OR SENSORS.
DANGER
WARNING
SIMPLEX-UP does not require any routine maintenance provided that their working
limits are observed. Any maintenance operations must be performed by qualified and
experienced personnel, in compliance with the safety regulations in force.
DANGER!
Make sure that SIMPLEX-UP is disconnected from the power supply before
performing any maintenance operations.

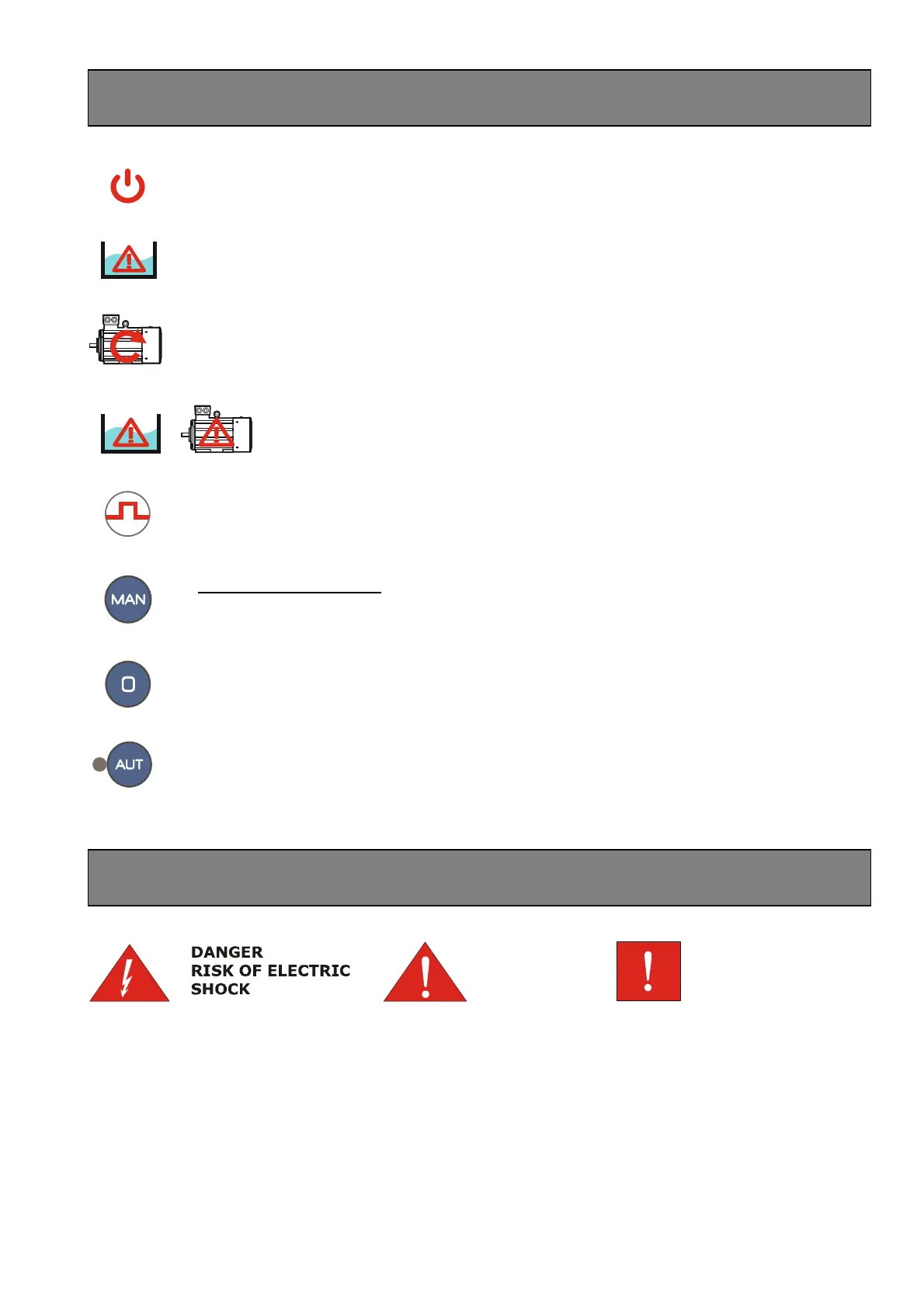

11. LIGHTS and PUSH-BUTTONS ON THE FRONT-PANEL
12. MAINTENANCE
