Fourgroup Simplex-Up - Application and Working Limits

5
DANGER
RISK OF ELECTRIC
SHOCK
WARNING
SIMPLEX-UP is designed for controlling 1 motor or electric pump used in
pressurization systems or in applications for emptying wells or water tanks
with multi-contact float switches.
FOURGROUP S.r.l. shall not be liable for any damage caused or suffered by
the unit as a result of its unauthorised or improper use.
TECHNICAL FEATURES :
- Electronic control panel;
- Power Supply 1~50/60Hz 230V +/- 10% (SIMPLEX-UP-M – Single-Phase);
- Power Supply 3~50/60Hz 400V +/- 10% (SIMPLEX-UP-T – Three-phase);
- Control input from NO contact (float/pressure switch);
- Alarm control input from NO contact (float/pressure switch);
- Control input with three minimum level sensors;
- Input for motor winding thermal protection;
- Sensors suitable for use with not flammable conductive fluids (not included);
- Incorporated selector for sensor operation in "Filling/Emptying" mode (dip-switch 1 and 2);
- Incorporated sensor sensitivity adjustment;
- Push buttons for operating motor in "Automatic-Off-Manual" modes;
- “Mains power on" LED;
- “Alarm" LED for min/max water level;
- “Motor on” LED;
- “Motor protection enabled” LED;
- “Automatic” LED (this is on the AUTOMATIC push-button);
- Restore protection button;
- Adjustable motor protection (Motor Current Trimmer: 2 <> 22A or 20 <> 44A);
- Protection activation time: 5”;
- Incorporated dip-switch for overriding the "Motor cut-out" (dip-switch 4);
- Internal “Sensors alarm” cut off dip-switch (dip-switch 3);
- Internal “ammetric alarm cut-in delay” cut off switch (jumper ESC. TIM. TA);
- Motor protection fuses;
- Auxiliary protection fuse;
- Alarm output with switching NO-C-NC contacts, capacity 16A 250V (resistive load);
- Single-phase version adapted for the insertion of a capacitor (not included);
- Main circuit-breaker with door lock;
- Output with cable clamps;
- ABS box;
- Protection IP55;
- Ambient temperature: -5/+40 °C;
- Relative humidity 50% at 40 °C (not condensed);
Do not use the product in environments where dust, acids, corrosive and/or
flammable gases etc. are present.
4. APPLICATION AND WORKING LIMITS

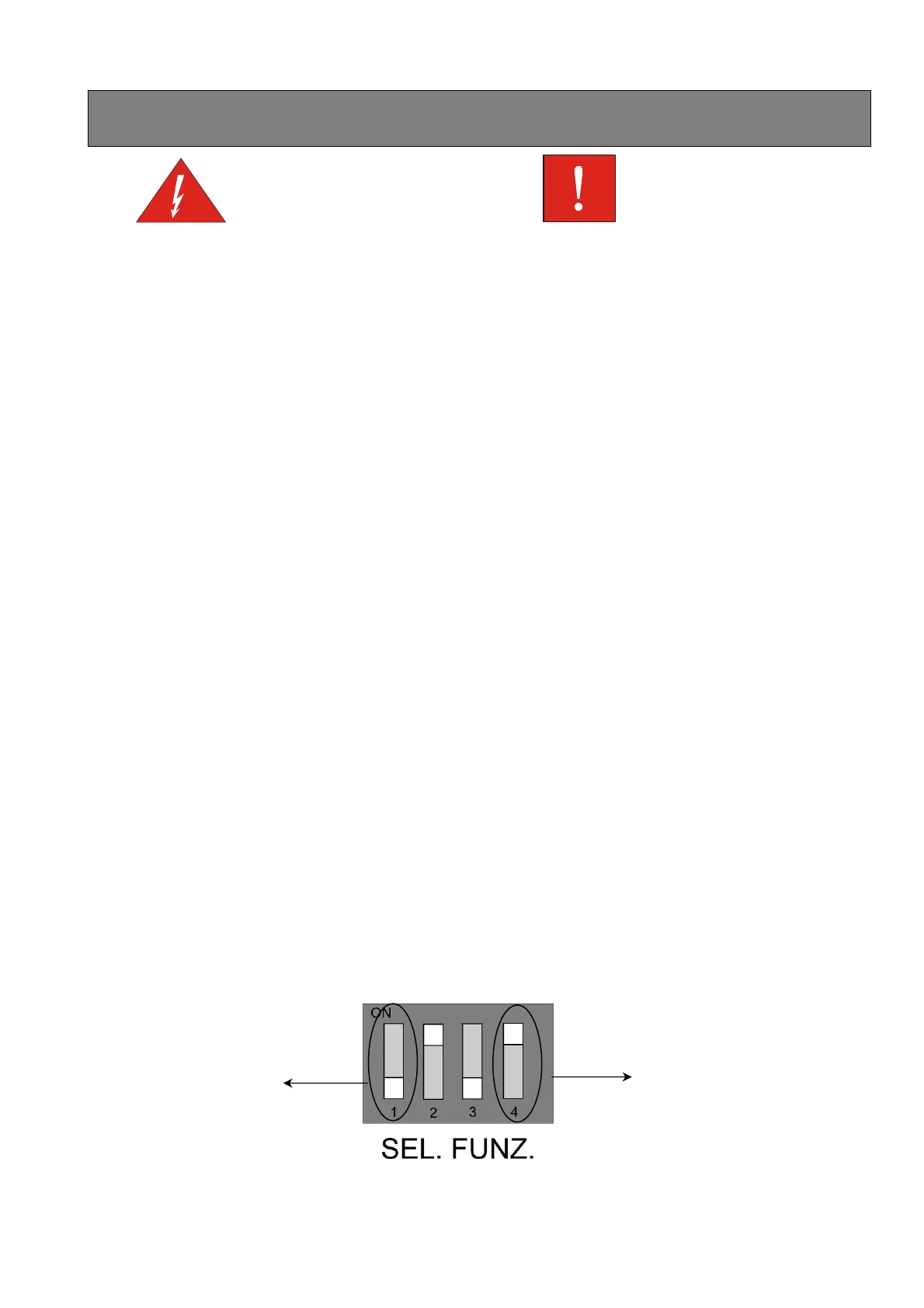

INTERNAL DIP-SWITCH
OFF POSITION
INTERNAL DIP-SWITCH
ON POSITION
