GB
CARP PLUS X
GB
CARP PLUS X
Instructions
Assembly

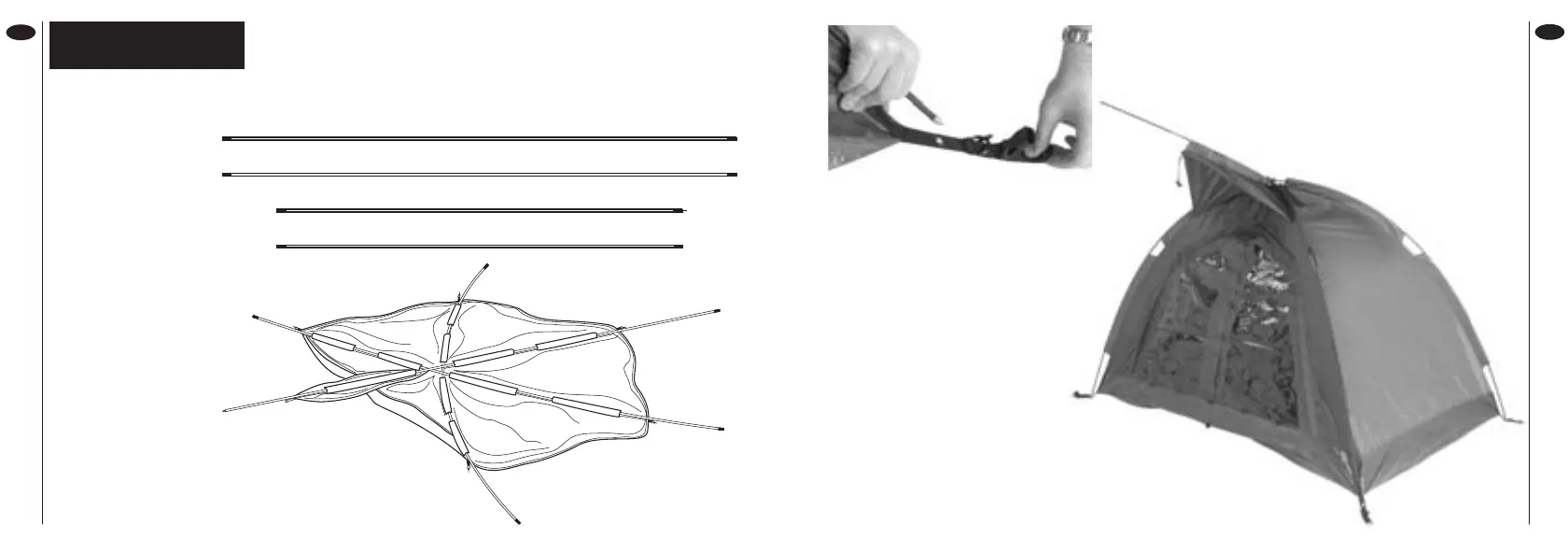

Unfold all poles and
join together, lay out
dome flat on ground
as shown, push poles
A & B ( 2 longest -
Coded Yellow )
through flaps from
corner to corner and
pole C ( shorter -
Coded Red ) from
front to back (Fig.1).
Lift dome and bend poles, fit
pole ends in eyelets on corners
4 & 5 (Fig.3). Knot material ties
over centre poles where they
cross each other (Fig.3A).
Thread pole D (Coded Blue)
through flap on outer skin. Now
stretch outer skin over inner
dome making sure the pole is
to the front of the dome.
POLE A (Yellow)
POLE B (Yellow)
POLE C (Red)
POLE A
POLE C
POLE B
1
POLE D (Blue)
2
3
4
5
6
Fig.1
Fit pole ends into eyelets on
corner tags 1, 2 & 3 (Fig.2).
Fig.2
Fig.3A
Fig.3
4
5
