GB
EASY DOME X
GB
EASY DOME X
Instructions
Assembly

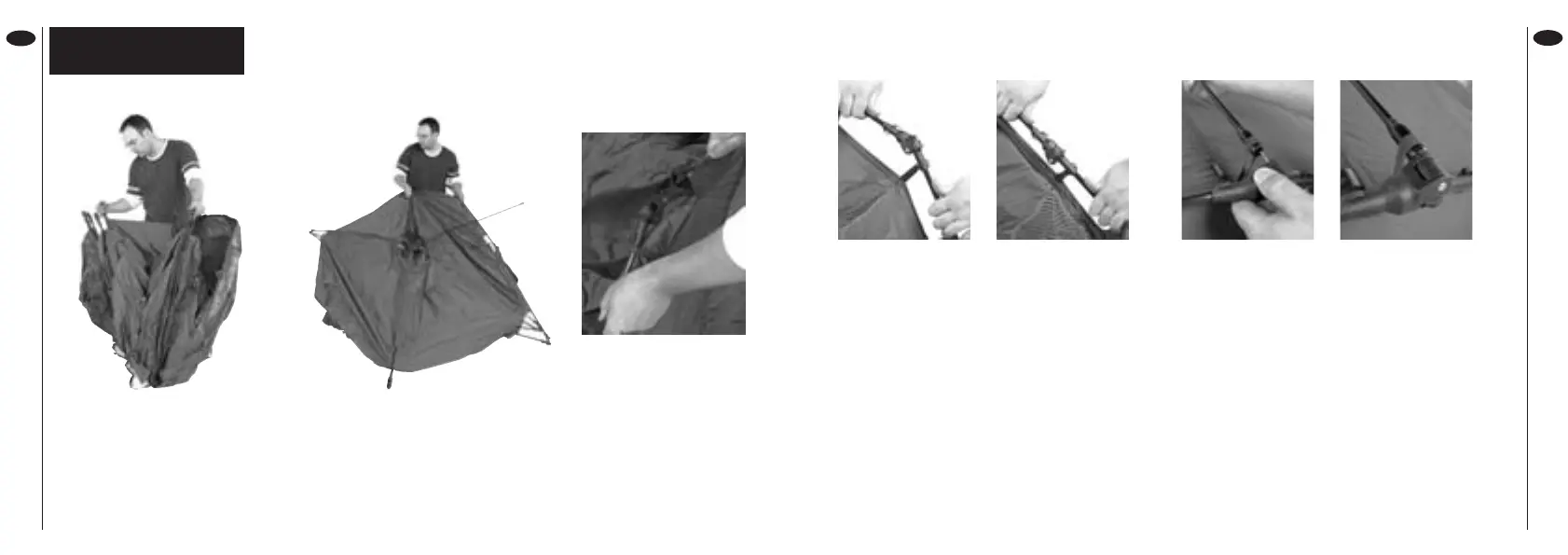

1. Remove the Easy Dome X
from its carryall and position so
that the central boss is visible
lying down between the ribs.
3. Lift the dome into
position and snap
each joint together.
2. Allow the ribs to drop outwards,
causing the central boss to rise up
towards you. Ensure that no material
has been trapped under the joints on
the central boss.
4. To close each joint simply push
inwards until it locks shut.
IMPORTANT: the joints will snap
together with minimal pressure. If
undue resistance is felt then
STOP and check none of the ribs
are twisted. Work your way around
the dome until all four main ribs
are assembled.
5. Assemble the porch rib by lifting and
snapping the joint together. Close the
middle joint first, followed by the two
outer joints. Attach the elastic loop over
the central rib and insert onto spigot as
shown.
EASY DOME X.QXD 17/5/06 3:48 pm Page 4
