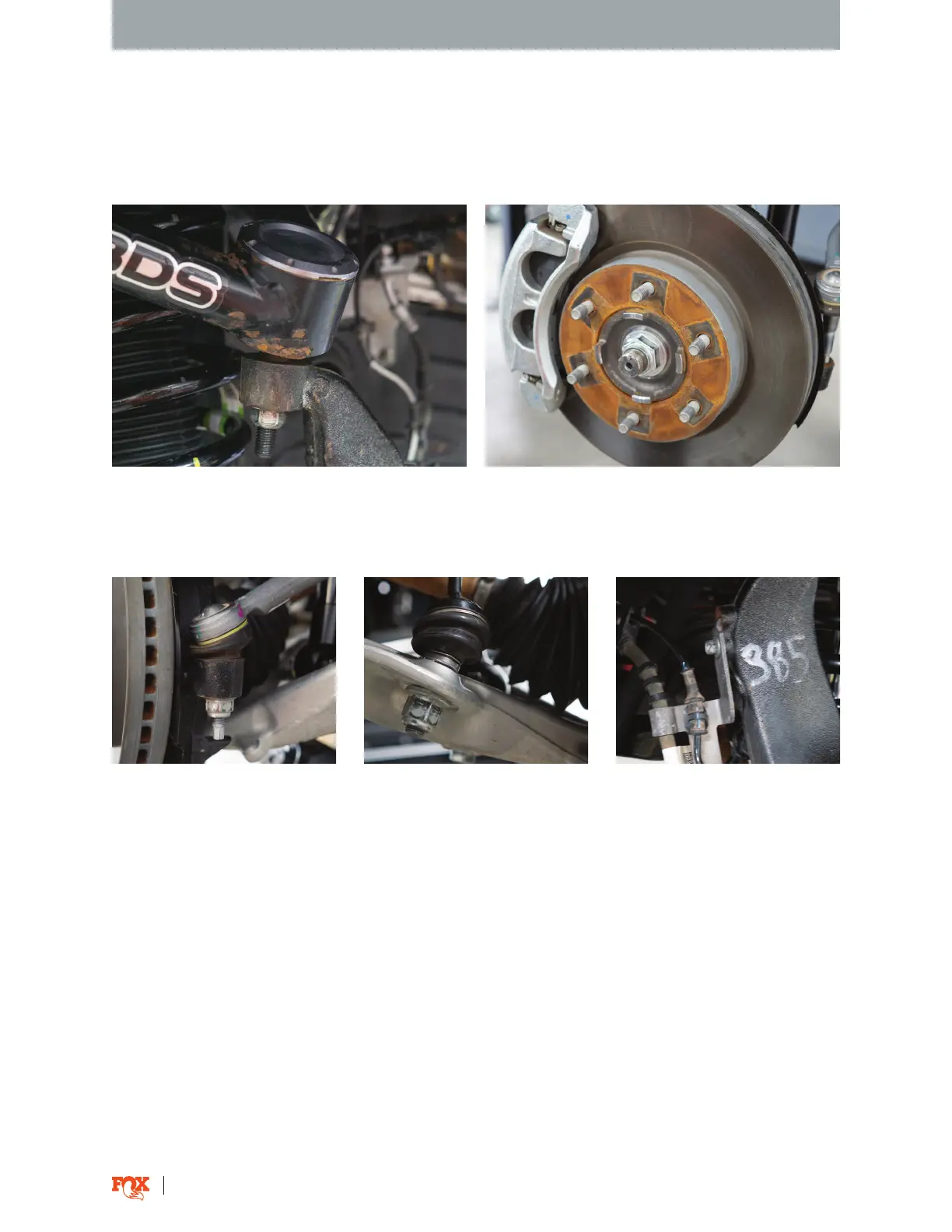

Fig. 21: Tie rod end. Fig. 22: Sway bar end link. Fig. 23: Brake bracket bolt.
26. Reinstall the tie rod end (Fig. 21), sway bar end link (Fig. 22), and brake bracket bolt (Fig. 23). Torque all
hardware to OEM specification.
25. Reattach the UCA to the upright with the ball joint bolt. Support the axle during the reinstallation.
Fasten the nut to both the axle nut and UCA. Torque the nuts to OEM specification (Fig. 19 & 20).
Fig. 19: Reattach the UCA. Fig. 20: Fasten the axle nut.
FINAL CHECK AND DETAILS
27. Check that the suspension has proper clearance.
28. Reinstall the wheels and torque to OEM specifications.
29. Set the vehicle back on the ground and drive back and forth several feet to allow the suspension to
settle. Now measure ride height and adjust if necessary. READ INSTALLATION GUIDELINES ON HOW TO
PROPERLY ADJUST PRELOAD.
30. It is highly recommended that you have your wheel alignment checked.
