9. Before removing the stock coil-over from the
vehicle, mark the coil bucket, and shock assembly
with a paint pen (Fig. 6).
This is necessary to properly align the FOX shock
with the stock components. Take a photo for further
documentation.

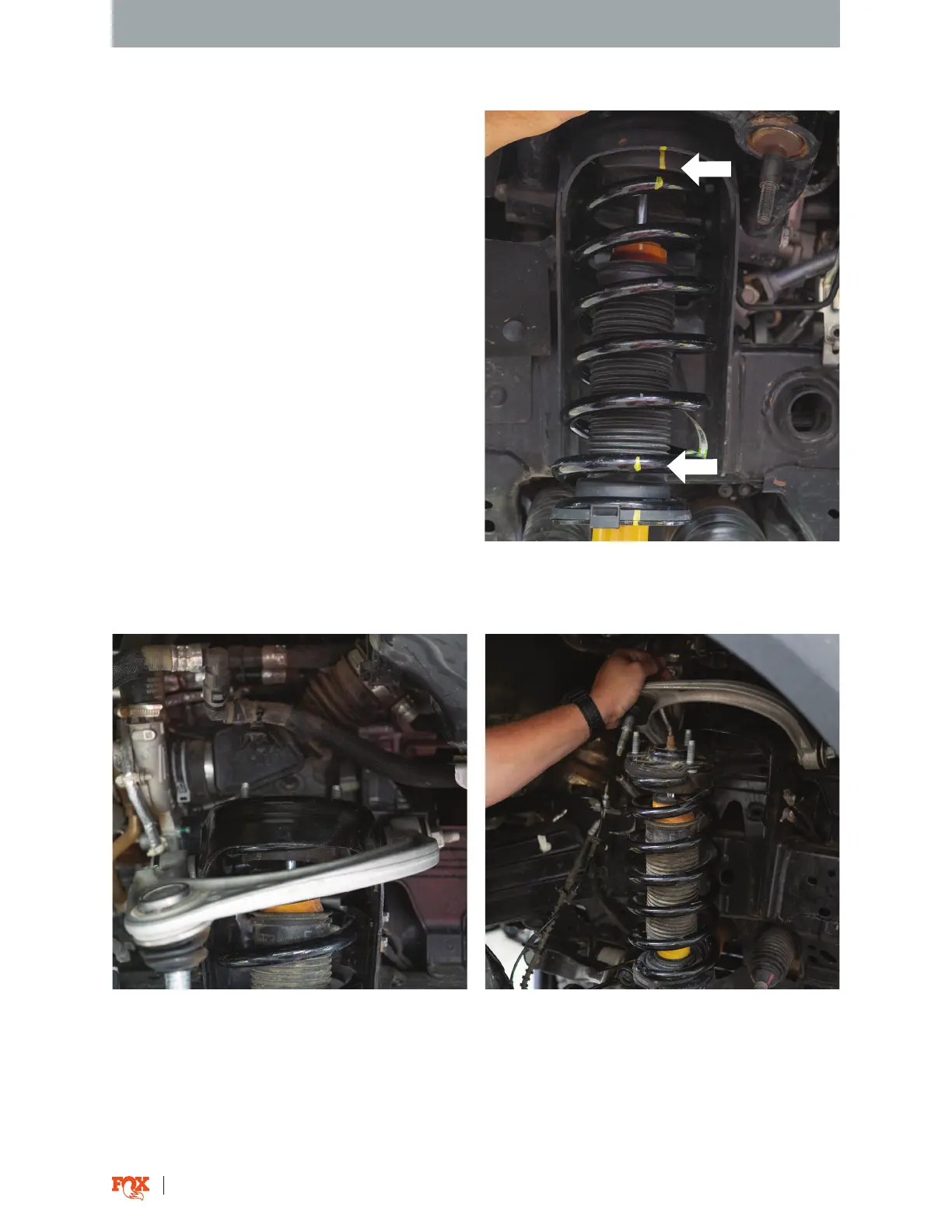

Fig. 6: Mark the coil bucket and shock assembly.
Fig. 7: DO NOT remove the center nut. Fig. 8: Free the coil-over from the coil bucket.
10. Remove the three top hat nuts that secure the
stock coil-over assembly (Fig. 7). DO NOT remove
the center nut. Removal of the center nut will
release the spring from the shock assembly and may
result in SERIOUS INJURY or DEATH!
11. Use a pry bar to free the top of the coil-over from
the coil bucket (Fig. 8).
