605-01-3 67 13
11. Reinstall the wheels and torque to OEM
specifications.
12. It is highly recommended your wheel alignment
is checked.
CHECK AND FINAL DETAILS

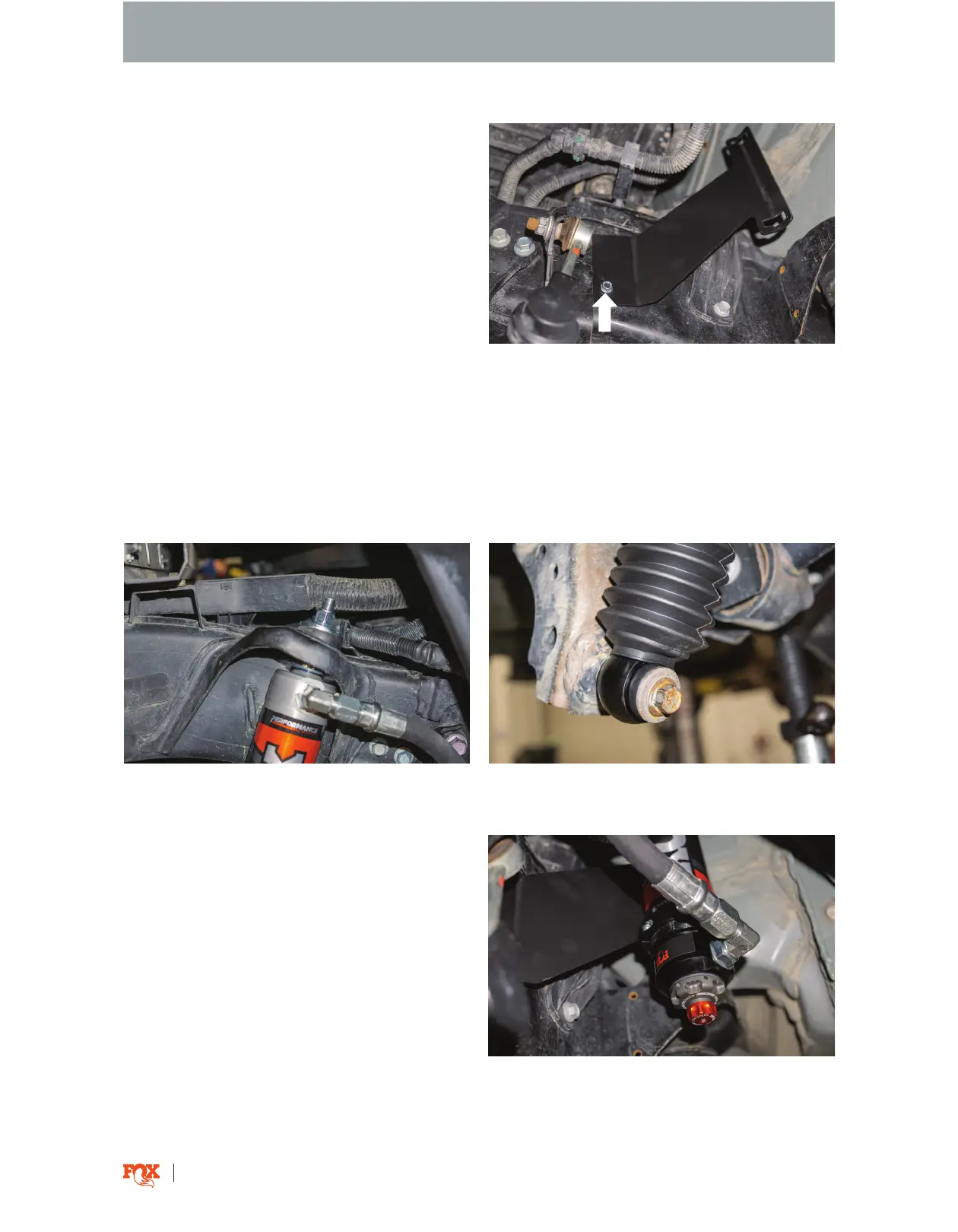

Fig. 21: Install the lower shock bolt (passenger
side shown).
8. Torque the lower bolt to OEM specification (Fig. 21). Tighten the stem top nut until there are 3-4 threads
showing above the nut.
7. Orient the FOX shock with the hose fitting pointed outward. Loosely install the stem top nut and lower
shock mount bolt (Fig. 20).
Fig. 20: Install the stem top nut (passenger
side shown).
Fig. 22: Mount the reservoir to the bracket
(driver side shown).
FOX SHOCK INSTALL
10. Attach the reservoir to the mounting bracket
with the provided reservoir clamps and screws
(Fig. 22). Refer to page 10 (Fig. 12) to review the
bracket and reservoir installation. Torque the
screws to 19 in-lbs.
6. Install the reservoir bracket between the sway bar
bracket and the vehicle’s frame. Torque the bolts to
OEM spec. Fasten the reservoir bracket to the frame
with a provided self tapping screw (Fig. 19).
Fig. 19: Install the self tapping screw
(passenger side shown).
