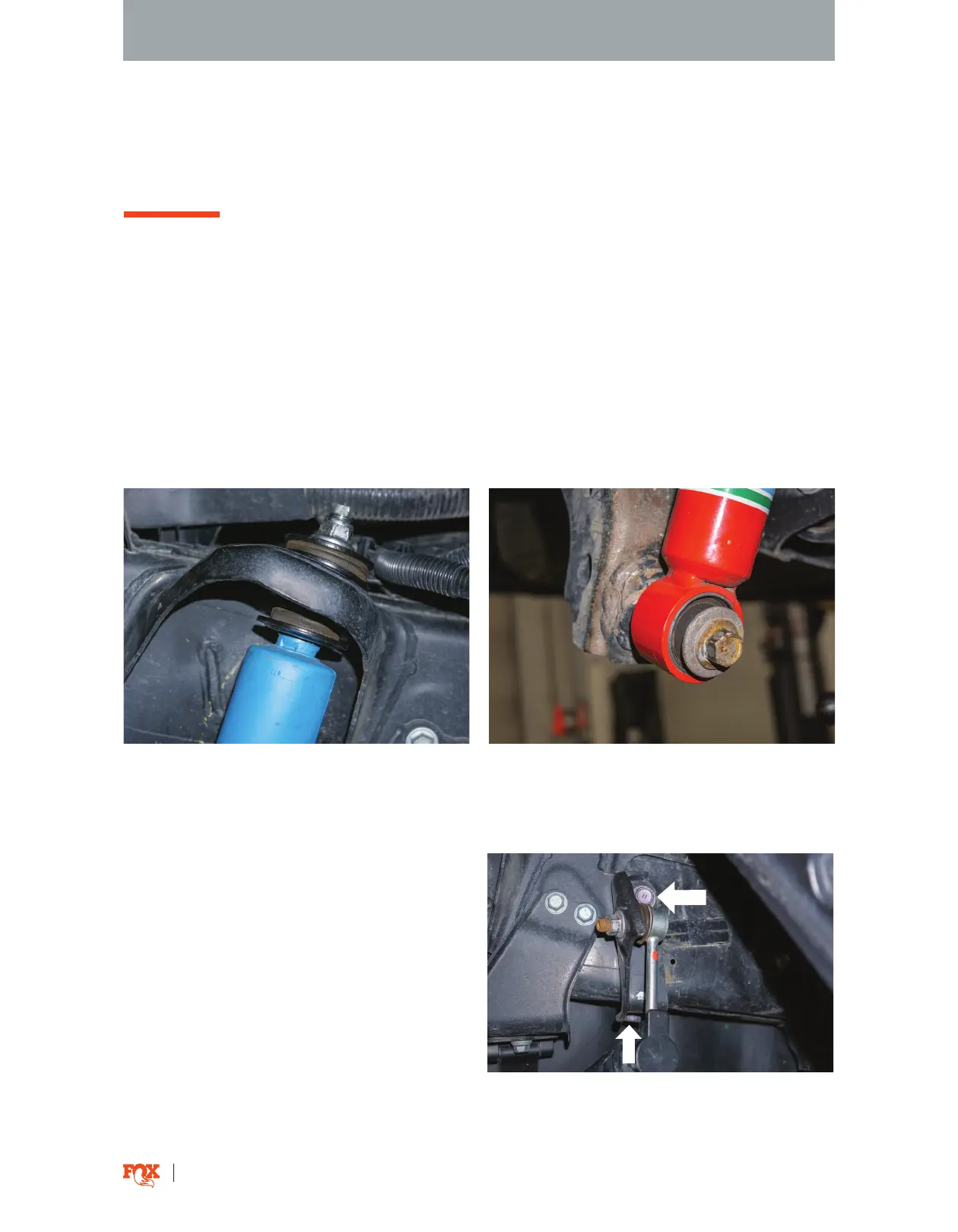

Fig. 16: Remove stem top nut. Fig. 17: Remove lower shock mount bolt.
Fig. 18: Remove the two sway bar bracket
bolts (passenger side shown).
REAR SHOCK INSTALLATION
NOTICE: Medium-strength thread-lock is recommended on all bolts.
1. Please read the installation guidelines on page 5 for instructions on how to properly lift and secure
the vehicle.
STOCK SHOCK REMOVAL
2. Remove the rear wheels from the vehicle and support the rear axle.
3. Remove the stem top nut and lower shock mount bolt (Fig 16 & 17).
4. Remove the rear stock shocks.
5. Remove the two bolts fastening the sway bar
bracket to the frame (Fig. 18).
RESERVOIR BRACKET INSTALL
