Chapter 3 BIOS Description
38

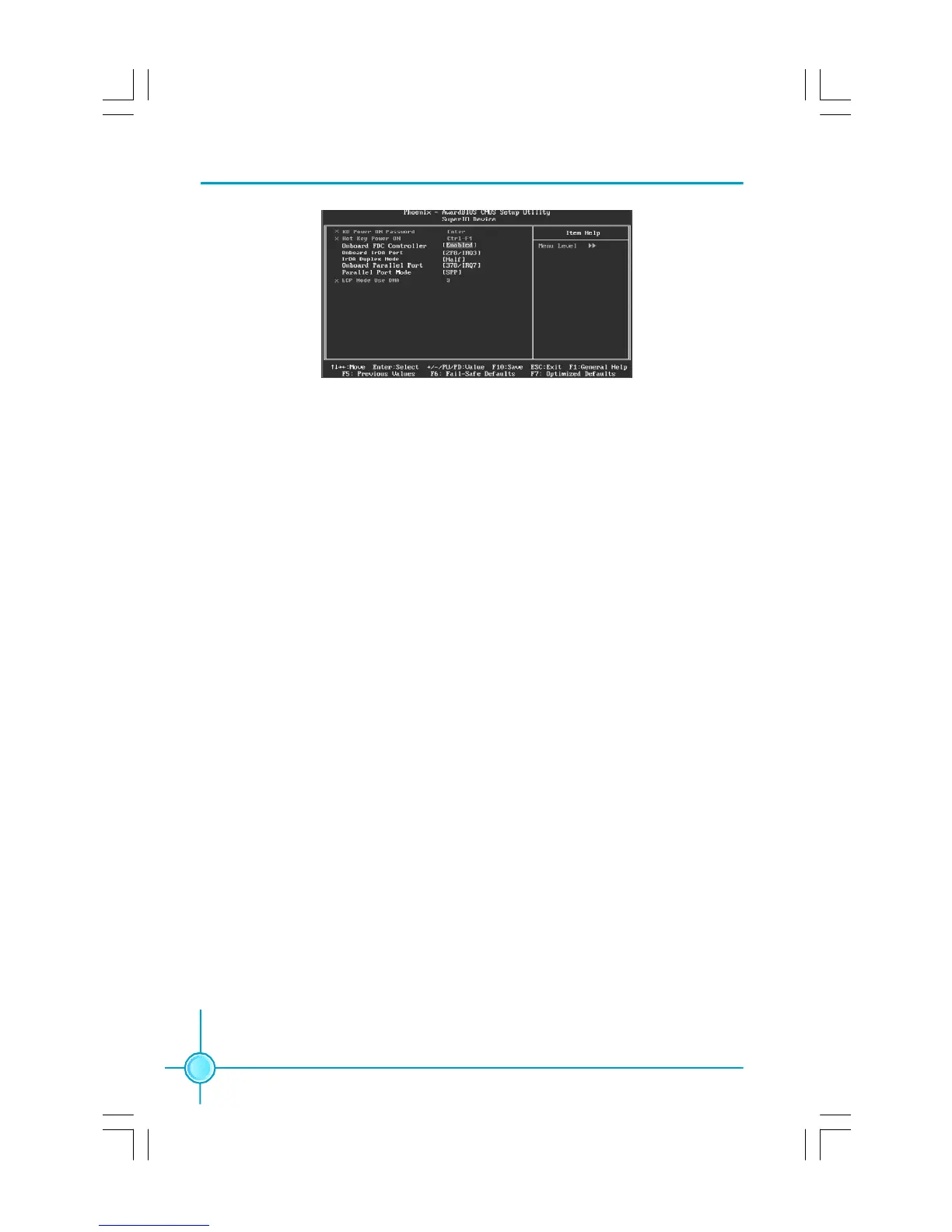

SuperIO Device Menu
vKB Power On Password
This option is used to set the Keyboard power on password.
vHot Key Power On
The option is used to set the hot key combination that turns on the system.
vOnboard FDC Controller
This option is used to set whether the Onboard FDC Controller is enabled.
vOnboard IrDA Port
This option is used to assign the I/O address and interrupt request(IRQ) for
the IrDA Port
vIrDA Duplex Mode
This option is available when UART mode is set to either ASKIR or IrDA. This
item enables you to determine the infrared function of the onboard infrared chip.
vOnboard Parallel Port
This option allows you to determine onboard parallel port controller I/O ad-
dress and interrupt request (IRQ).
vParallel Port Mode
Select an address and corresponding interrupt for the onboard parallel port.
The setting values are: SPP, EPP, ECP, ECP+EPP.
vECP Mode Use DMA
When the Parallel Port Mode is set to ECP or ECP+ EPP, this option is used to
select the channel for the ECP mode. The setting values are: 1 and 3.
