Foxconn A74ML Series User Manual

2
15

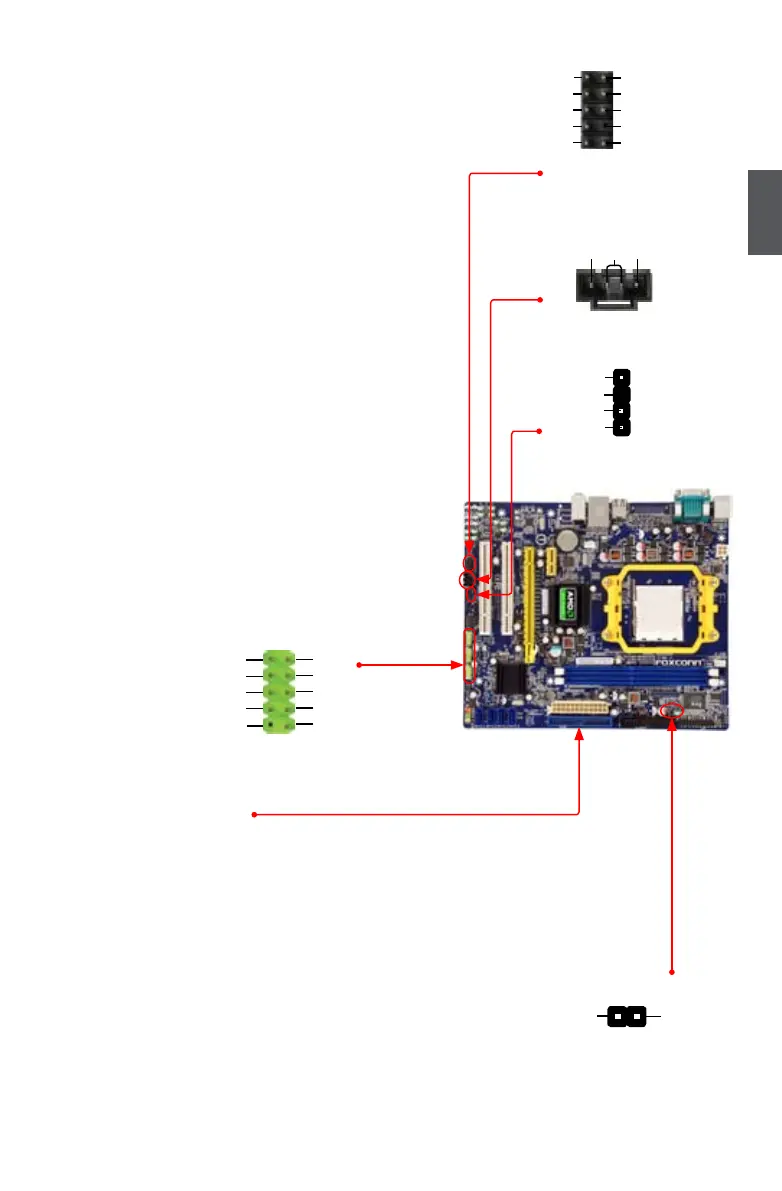

Audio Connector : F_AUDIO
The audio connector supports HD Audio standard.
It provides the Front Audio output choice.
Audio Connector : CD_IN
CD_IN is a Sony standard audio connector, it can be
connected to a CD/DVD-ROM drive through a CD/DVD
audio cable.
S/PDIF Connector : SPDIF_OUT
The connector is used for S/PDIF output.
USB Connectors : F_USB 1/2/3
In addition to the four USB ports on the rear panel, this
product also provides three 10-pin USB headers on its
motherboard. By connecting through USB cables with
them, user can quickly expand another six USB ports
on the front panel.
IDE Connector : PIDE
With the provided Ultra DMA IDE ribbon cable, you
can connect to any IDE type of hard disk and CD/DVD
ROM/RW drive.
Chassis Intruder Alarm Connector : INTR
The connector can be connected to a security switch
on the chassis. The system can detect the chassis
intrusion through the function of this connector. If
eventually the chassis is closed, the system will send a
message out.
PORT1_L
PORT1_R
PORT2_L
SENSE_SEND
SENSE1_RETURN
PRESENCE_J
EMPTY
SENSE2_RETURN
AUD_GND
1 2
109
F_AUDIO
PORT2_R
SPDIF_OUT
+5V
EMPTY
SPDIF_OUT
GND
1
2
3
4
1
CD_IN
CD_L GND CD_R
NC
GND
VCC
D+
D-
D+
GND
D-
VCC
EMPTY
1
2
10
9
F_USB 1/2/3
INTR
GND
INTRUDERJ
1
