1-2 Layout

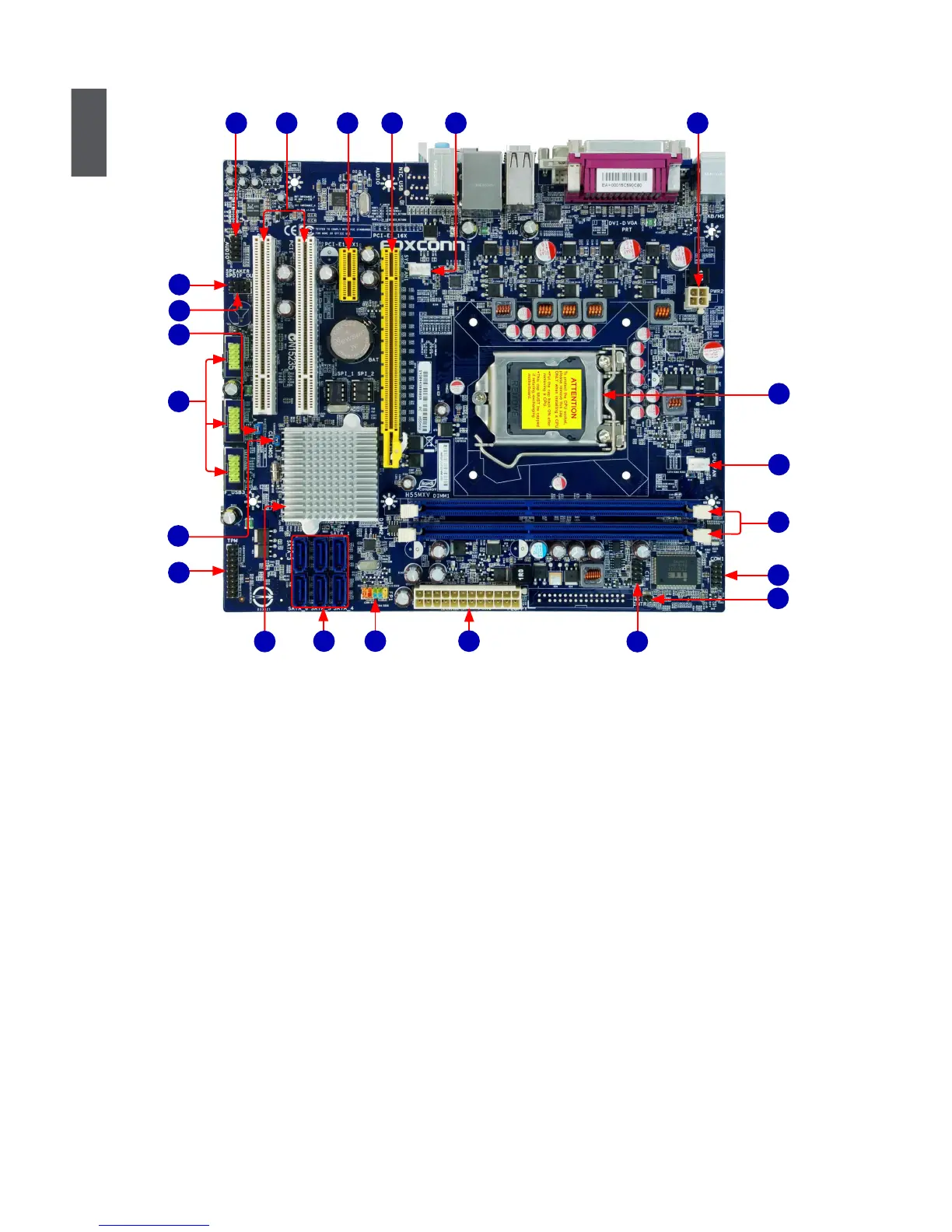

Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 4-pin ATX 12V Power Connector
2. SYS_FAN1 Header
3. PCI Express x16 Slot
4. PCI Express x1 Slot
5. PCI Slots
6. Front Audio Connector
7. Speaker Connector
8. S/PDIF Out Connector
9. Intel
®
ME Jumper
10. Front USB Connectors
11. Clear CMOS Jumper
12. TPM Connector
13 Chipset: Intel
®
H55
14. SATA Connectors
15. Front Panel Connector
16. 24-pin ATX Power Connector
17. CIR Connector
18. Chassis Intrusion Alarm Header
19. COM1 Connector
20. DDR3 DIMM Slots
21. CPU_FAN Header
22. LGA1156 CPU Socket
