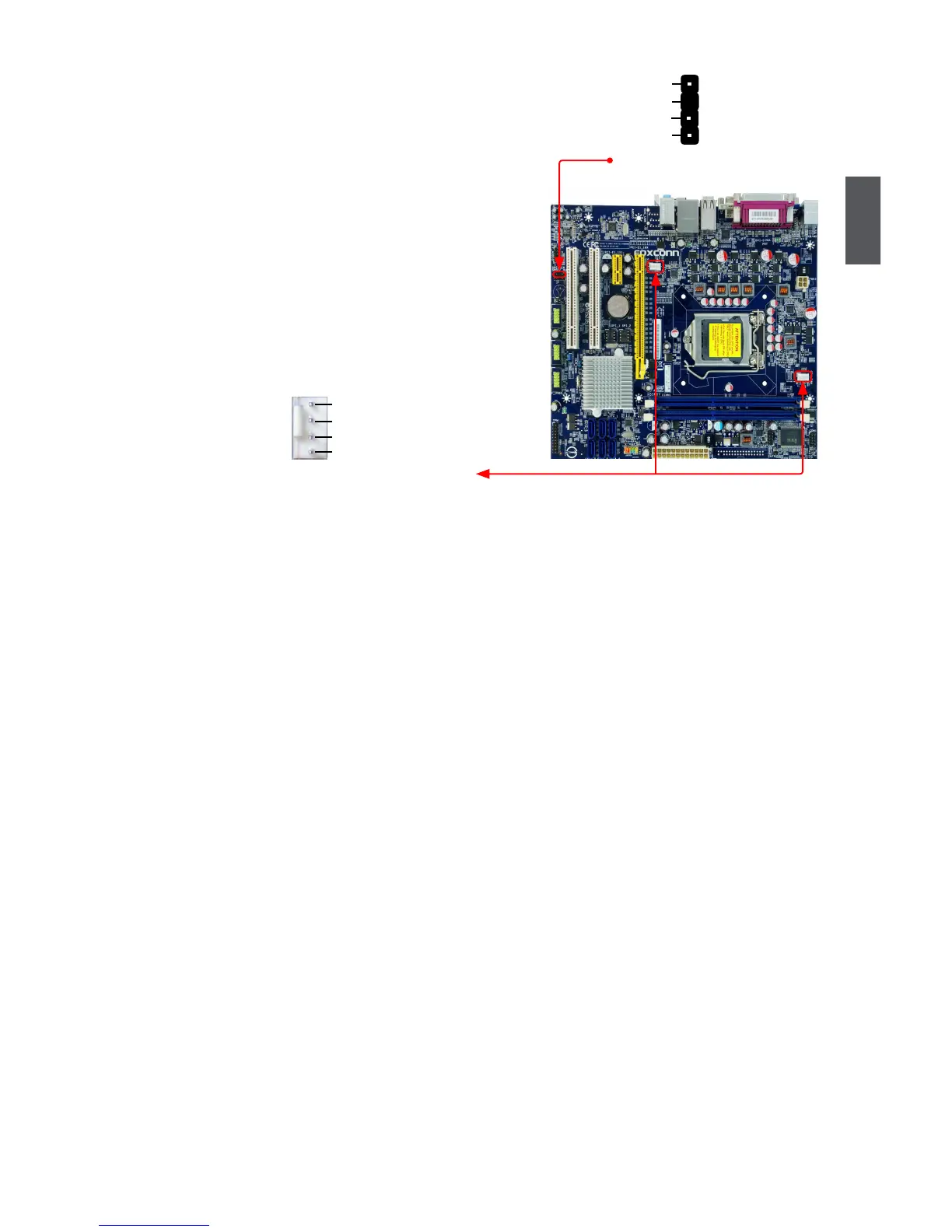

Speaker Connector : SPEAKER
The speaker connector is used to connect speaker of
the chassis.
Fan Connectors : CPU_FAN, SYS_FAN1
There are two main fan headers on this motherboard.
The fan speed can be controlled and monitored in “PC
Health Status” section of the BIOS Setup. These fans
can be automatically turned off after the system enters
S3, S4 and S5 sleeping states.
NC
SPKJ
EMPTY
SPEAKER
SPKJ
1
2
3
4
CPU_FAN/SYS_FAN1
GND
POWER
SENSE
CONTROL
1
