4. The stripe value should be selected based on different applications. It ranges from
4KB to 128KB. Some suggested choices are :
16K - Best for sequential transfer.
64K - Good general purpose strip size.
128K - Best performance for most desktops and workstations.
Keep it at Optimal default value. Press [F7] to nish the setting. Press [Y] to clear
disk data.
5. The screen displays a RAID 0+1 array of 153.38GB, which is twice the size of the
smallest hard disk. That is, 2*76.69= 153.38GB.
If you want to build a new Operating System (such as Windows XP) in this RAID
system, please press [B] to select it as bootable.
You can then press [Ctrl]+[X] keys to exit the setup program, and restart your PC.

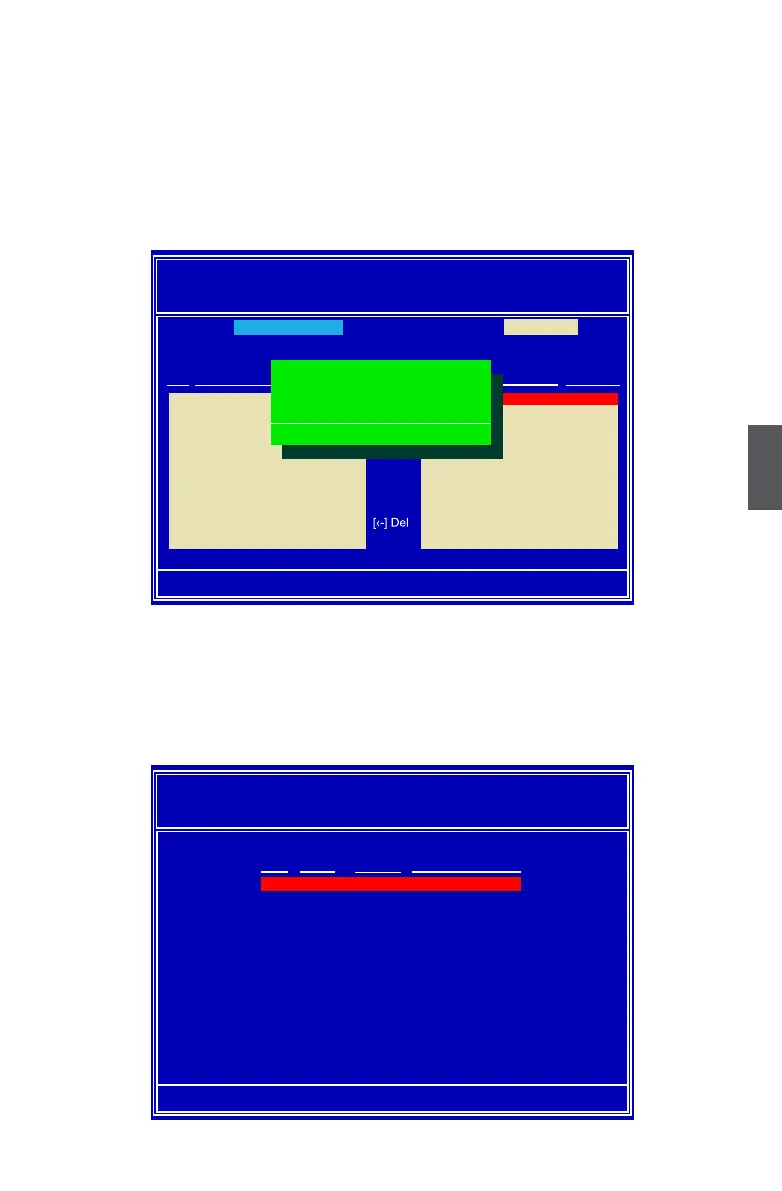

MediaShield Utillity Apr 26 2007
- Dene a New Array -
RAID Mode: Mirrored Stripe Block: Optimal
Free Disks Array Disks
Port Disk Model Capacity Port Disk Model Capacity
[-›] Add
[‹-] Del
[ESC] Quit [F6] Back [F7] Finish [TAB] Navigate [↑↓] Select [ENTER] Popup
Optimal
Stripe Mirroring
0.0 WDC WD1200JD-9 111.79GB
1.1 Hitachi HDT725 232.88GB
2.0 HDS728080PLA38 76.69GB
2.1 ST3320620AS 298.09GB
1.0 WDC WD1200JD-9 111.79GB
Clear disk data?
[Y] YES [N] NO
MediaShield BIOS Apr 26 2007
- Array List -
[Ctrl-X] Exit [↑↓] Select [B] Set Bootable [N] New Array [ENTER] Detail
Boot Status Vendor Array Size
No Healthy NVIDIA RAID 0+1 153.38G
To Next Page
