EPS Box-TP Series User Manual www.fox-ess.com P a g e | 7

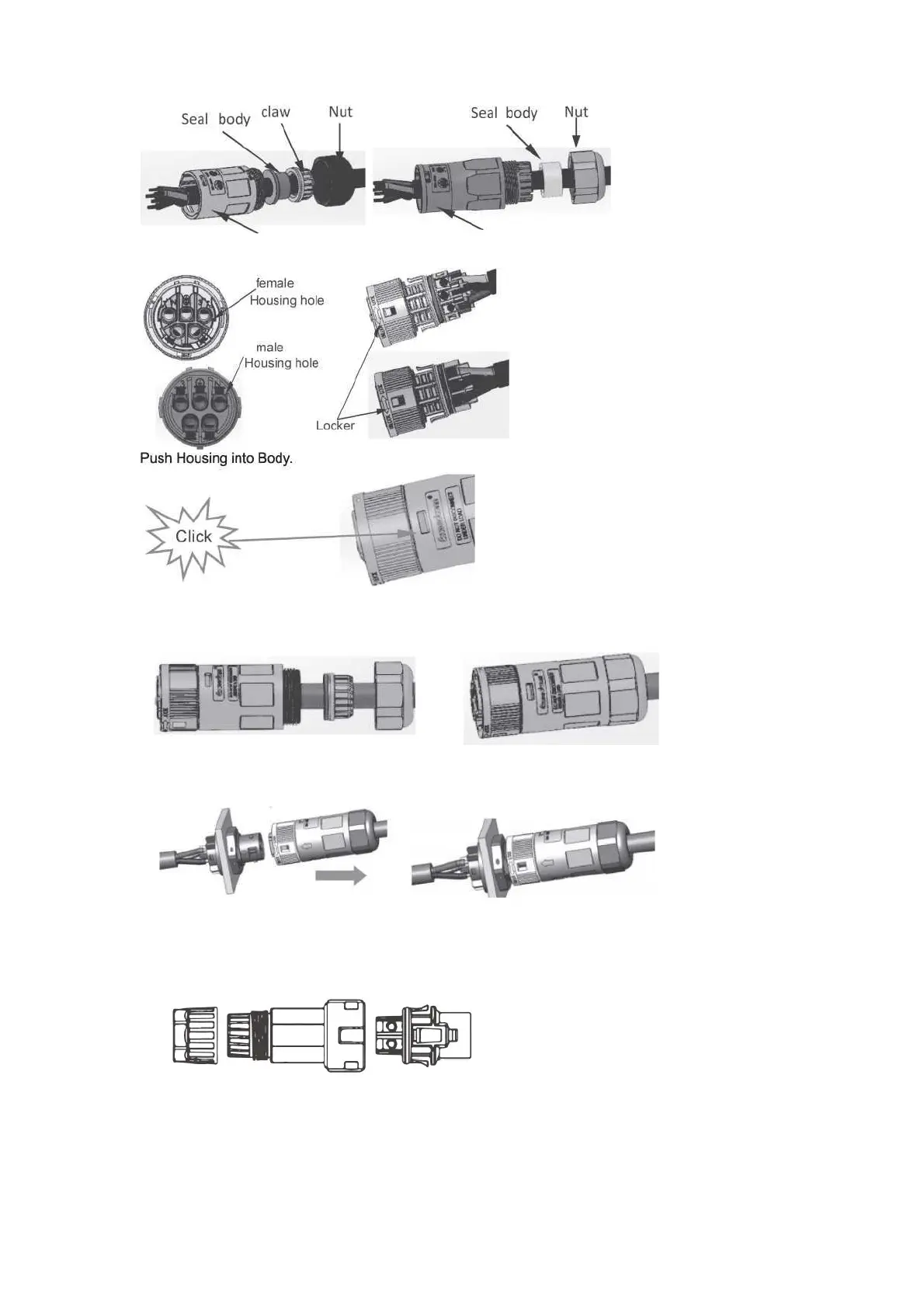

A. EPS Wiring
Set the parts on the cabl
Crimp wires, screw twisting torque 0.8+/-0.1N m.
Put the sealing body and yarn trapper into the main body, screw the lock nut into the main body, and the
torque is (2.5 + /- 0.5N m).
Insert the male end into the female end. For the rotation direction of the lock, please refer to the LOCK
mark on the assembly.
B. ON-GRID Wiring
Separate the ON-GRID plug into three parts as below.
-Hold middle part of the female insert, rotate the back shell to loosen it, detach it from female inset.
-Remove the cable nut (with rubber insert) from the back shell.
To Next Page
