EPS Box-TP Series User Manual www.fox-ess.com P a g e | 2

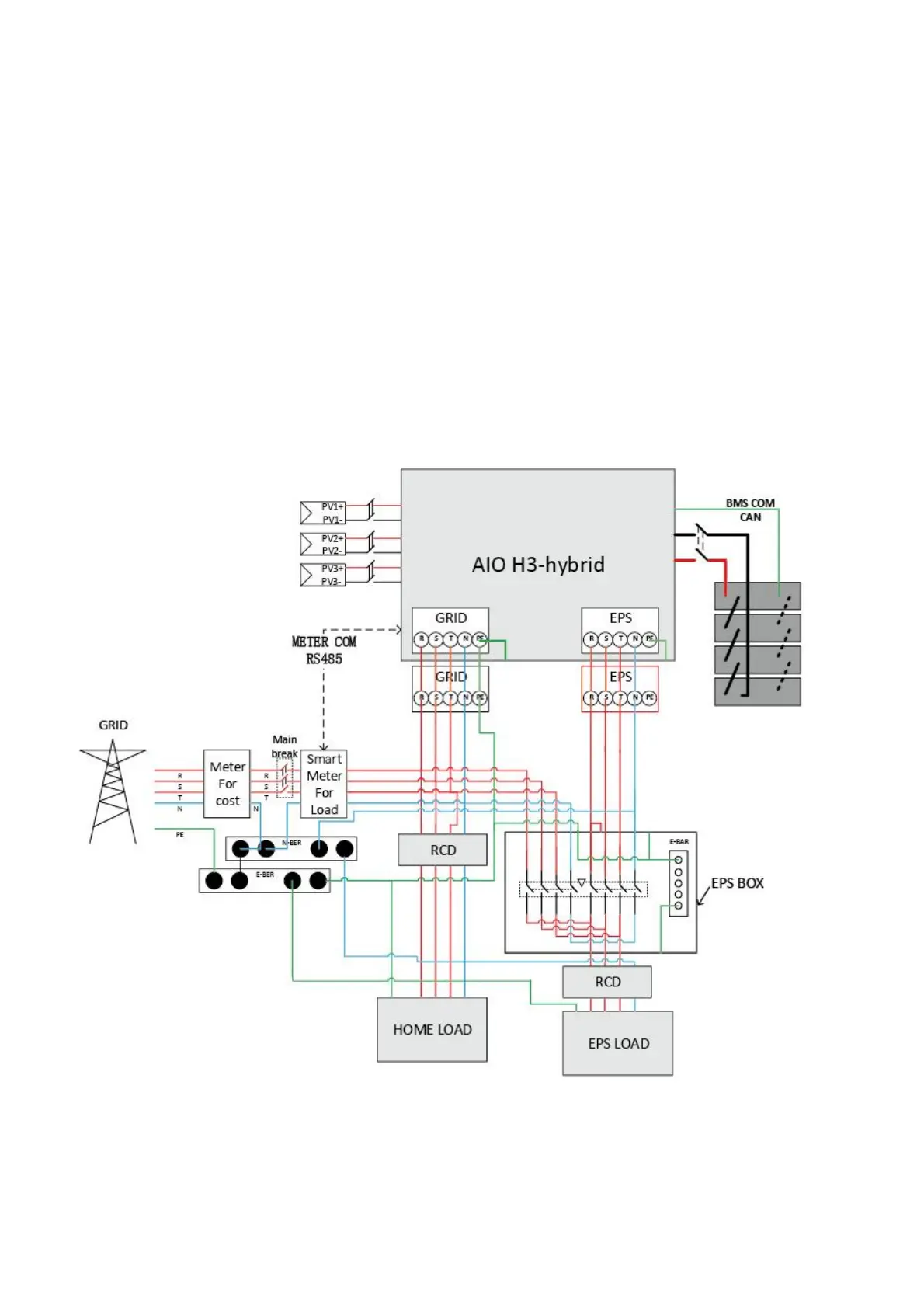

1.1 Wiring Diagram
Note:the following is the wiring diagram of EPS BOX TP. It is necessary to connect the ON-GRID side of EPS BOX TP to
the power grid, connect the EPS port to the EPS port of the energy storage machine, and connect the LOAD port to the
load at home. The function of TP is to select the power of the load port from the GRID or the EPS port of the energy storage
machine.
Note: According to Australian safety requirements, the neutral cables of the on-grid side and backup side must be
connected together.Otherwise, the backup function will not work.
This diagram is an example for an application that neutral connects with the PE in a distribution box. For countries such as
Australia, New Zealand, South Africa, etc, please follow local wiring regulations.
