Note
!
Please follow the requirements of PV modules as below: same
type; same quantity; identical alignment; identical tilt. In order to
save cable and reduce the DC loss, we suggest installing the
inverter as near to the PV modules as possible.

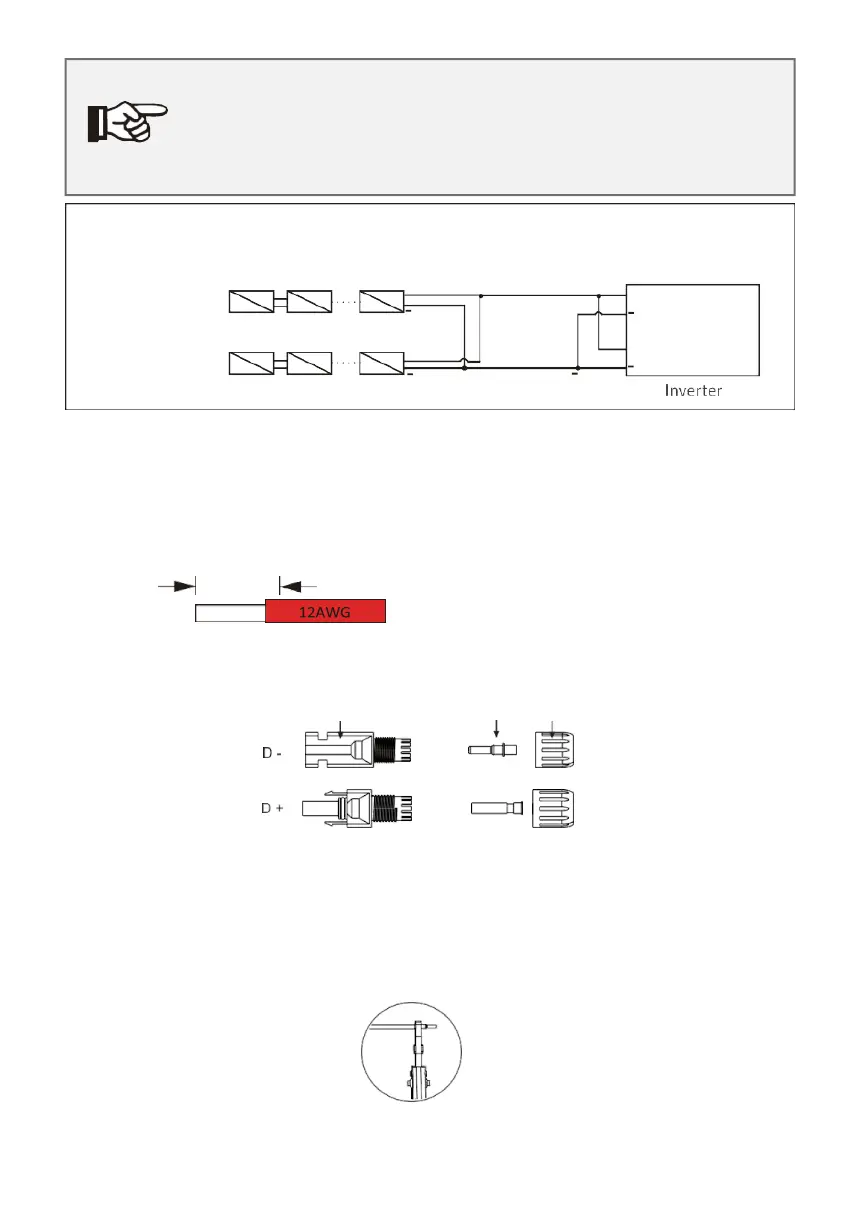

Note
!
PV connection mode below is not allowed
+
· Connection Steps
a)
Turn off the DC switch.
b)
Choose 12 AWG wire to connect the PV module.
c)
Trip 6mm of insulation from the wire end.
trip length
d)
Separate the DC connector as below.
plug pin contact cable nut
e)
Insert striped cable into pin contact and ensure all conductor strands
are captured in the pin contact.
f) Crimp pin contact by using a crimping pliers. Put the pin contact with
striped cable into the corresponding crimping pliers and crimp the contact.
