T Series User Manual www.fox-ess.com P a g e | 15
50/60Hz. Other technical requests should comply with the requirement of the local public grid.

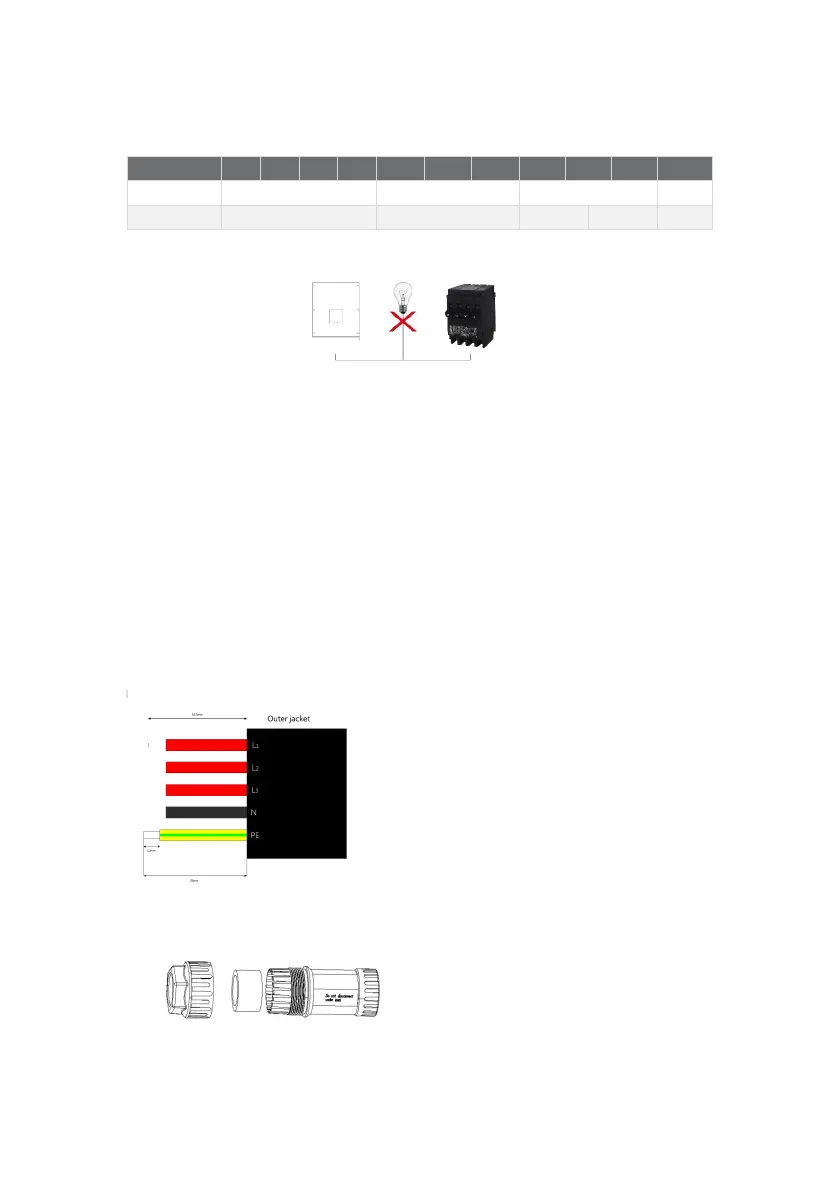

Note: A micro-breaker should be installed between inverter and grid; any load SHOULD NOT be connected with the
inverter directly.
Step 3: AC Wiring
➢
Check the grid voltage and compare with the permitted voltage range (refer to technical data).
➢
Disconnect the circuit-breaker from all the phases and secure against re-connection.
➢
Trim the wires
:
-
Trim all the wires to 52.5mm and the PE wire to 55mm.
-
Use the crimping pliers to trim 12mm of insulation from all wire ends as below.
➢ Separate the AC plug into three parts as below.
➢ Insert the sleeve assembly into the cable.
