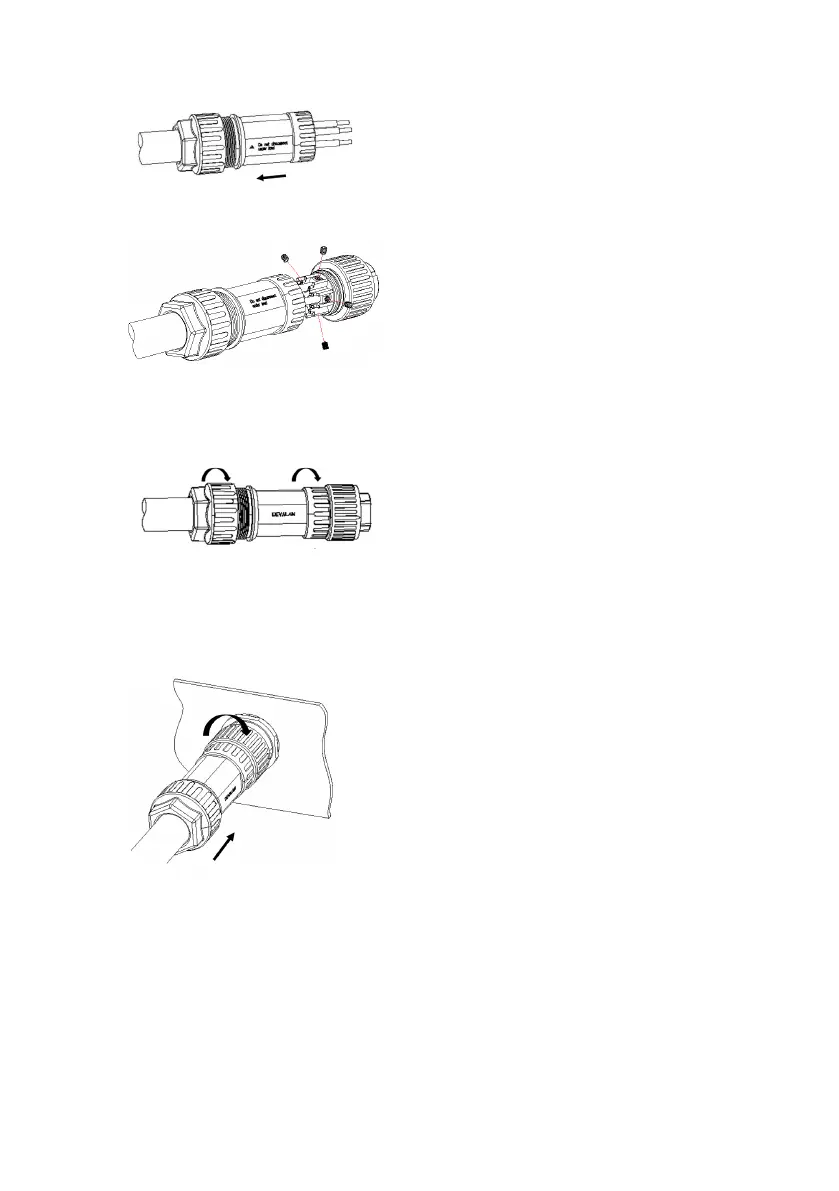

➢ Install the copper wire into the plug terminal and lock the screw.
➢ Lock the lock nut and the sleeve (3~5NM), lock the sleeve and the plug (1.5~1.7NM).
➢ Insert the plug assembly into the socket (inverter end) and lock each other by the coupling
twist.
6.2 Earth Connection
Screw the ground screw with screwdriver as shown below:
