FoxGate S6200 Series Installation Guide Chapter 2 Hardware Installation
2.2.2 Required Tools and Materials
The required tools and utilities are shown below:
 Cross screwdrivers
 Flat-blade screwdriver
 ESD wrist strap
 Antistatic uniform
Caution!
Users should prepare the required tools by themselves.
2.3 Installation Guide
2.3.1 Installing the Switch
Please mount the switch as below:
1. Attach the 2 brackets on the FoxGate S6224-S2/S4 series with screws provided in
the accessory kit.

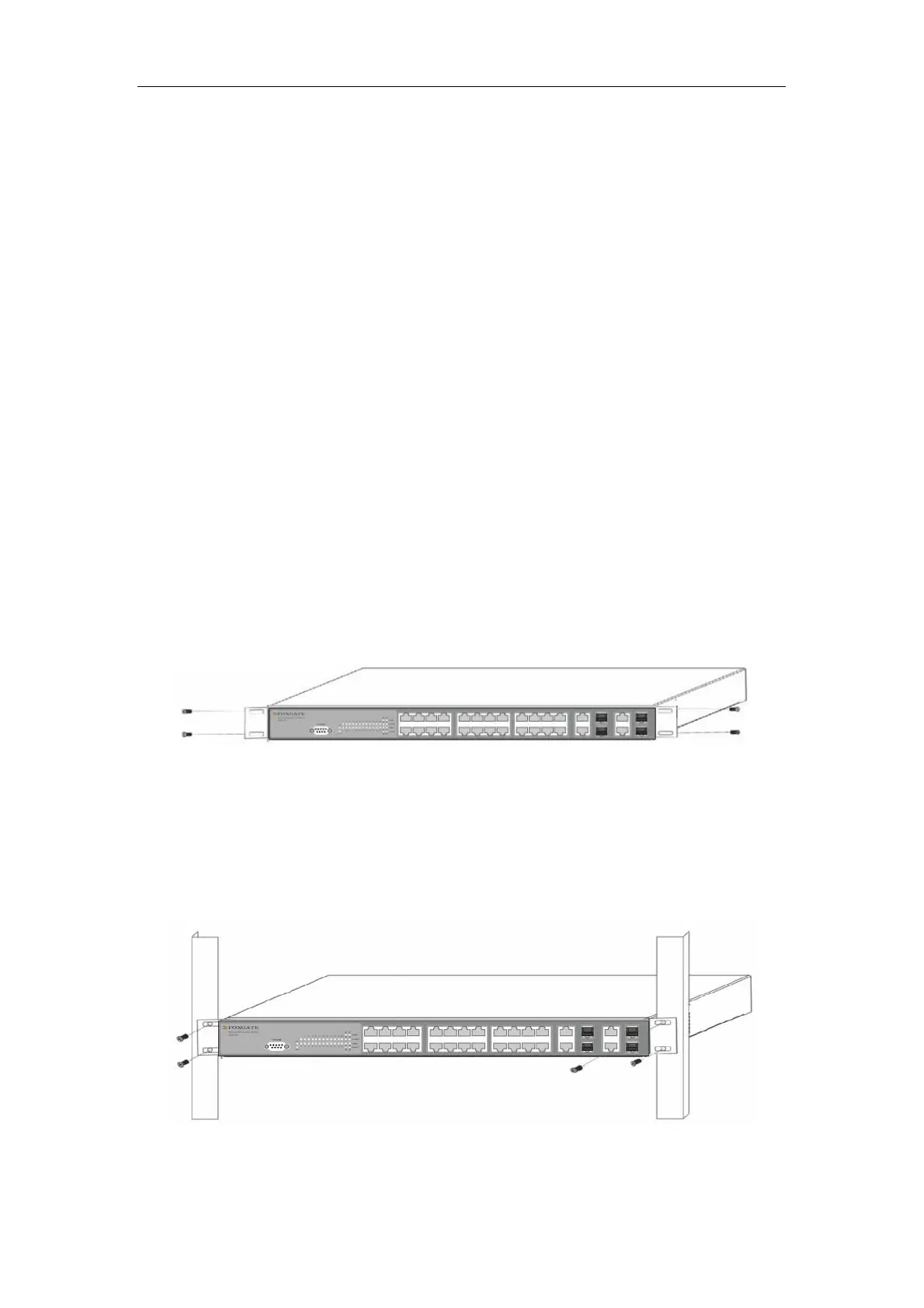

Fig 2-1 Fasten the Brackets to the Switch
2. Put the bracket-mounted switch smoothly into a standard 19’’ rack. Fasten the
FoxGate S6224-S2/S4 series to the rack with the screws provided. Leave enough space
around the switch for good air circulation.
Fig 2-2 Fasten the Switch to the Rack
