Foxtech AYK-250 VTOL - Compass Calibration; Radio Control Calibration

FOXTECH AYK-250 User Manual
©
2021 FOXTECH All Rights Reserved
8
Onboard calibration produces better results.

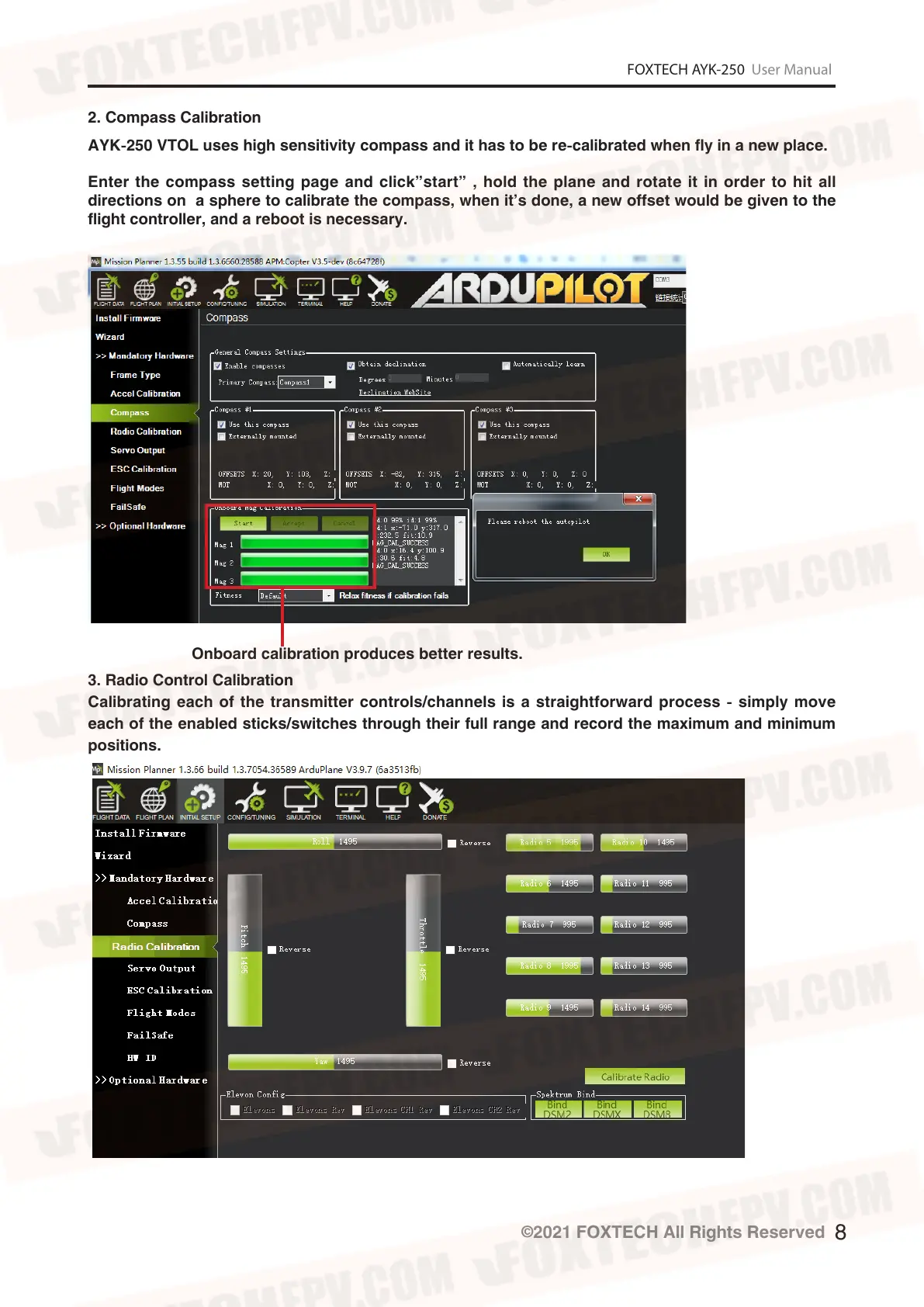

2. Compass Calibration
AYK-250 VTOL uses high sensitivity compass and it has to be re-calibrated when fly in a new place.
Enter the compass setting page and click”start” , hold the plane and rotate it in order to hit all
directions on a sphere to calibrate the compass, when it’s done, a new offset would be given to the
flight controller, and a reboot is necessary.
3. Radio Control Calibration
Calibrating each of the transmitter controls/channels is a straightforward process - simply move
each of the enabled sticks/switches through their full range and record the maximum and minimum
positions.
