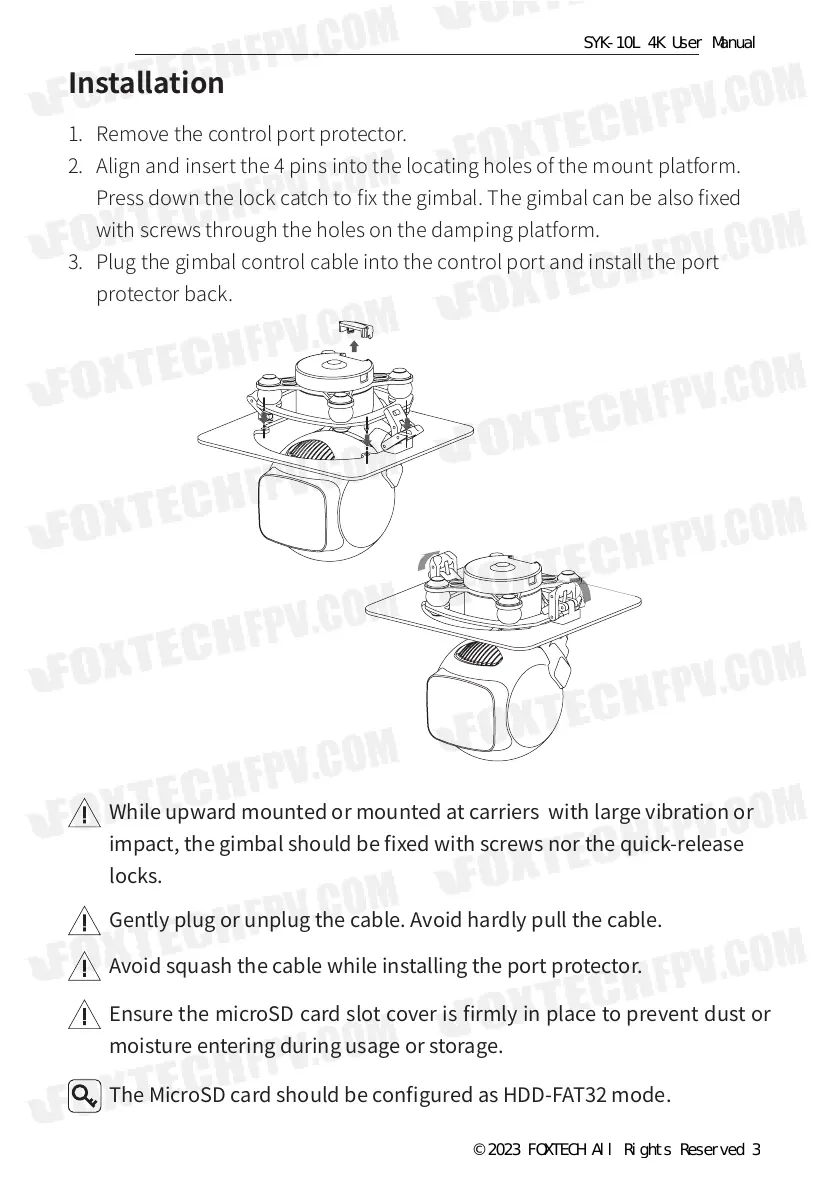

1. Remove the control port protector.
2. Align and insert the 4 pins into the locating holes of the mount platform.
Press down the lock catch to x the gimbal. The gimbal can be also xed
with screws through the holes on the damping platform.
3. Plug the gimbal control cable into the control port and install the port
protector back.
Installation
Gently plug or unplug the cable. Avoid hardly pull the cable.
While upward mounted or mounted at carriers with large vibration or
impact, the gimbal should be xed with screws nor the quick-release
locks.
Avoid squash the cable while installing the port protector.
Ensure the microSD card slot cover is rmly in place to prevent dust or
moisture entering during usage or storage.
The MicroSD card should be congured as HDD-FAT32 mode.
© 2023 FOXTECH All Rights Reserved 3
