Foxtech VDC-22 User Manual

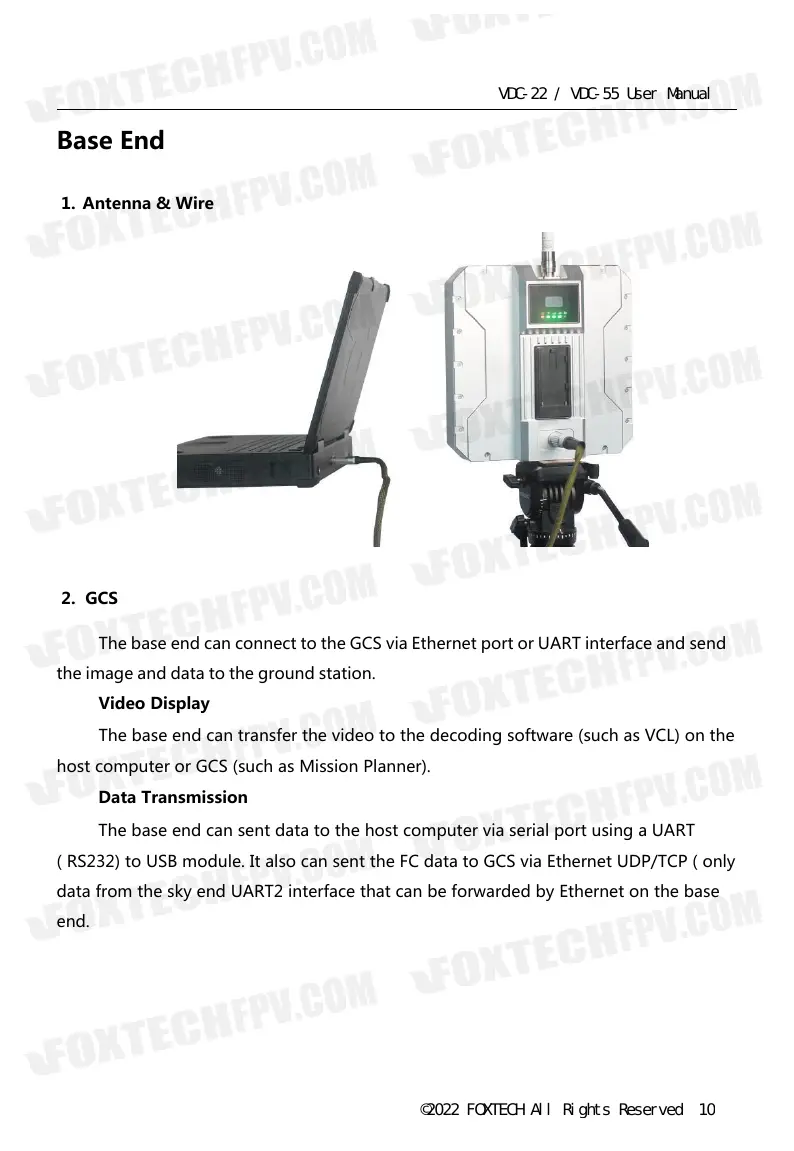

Base End
1. Antenna & Wire
2. GCS
The base end can connect to the GCS via Ethernet port or UART interface and send
the image and data to the ground station.
Video Display
The base end can transfer the video to the decoding software (such as VCL) on the
host computer or GCS (such as Mission Planner).
Data Transmission
The base end can sent data to the host computer via serial port using a UART
( RS232) to USB module. It also can sent the FC data to GCS via Ethernet UDP/TCP ( only
data from the sky end UART2 interface that can be forwarded by Ethernet on the base
end.
VDC-22 / VDC-55 User Manual
©2022 FOXTECH All Rights Reserved 10
