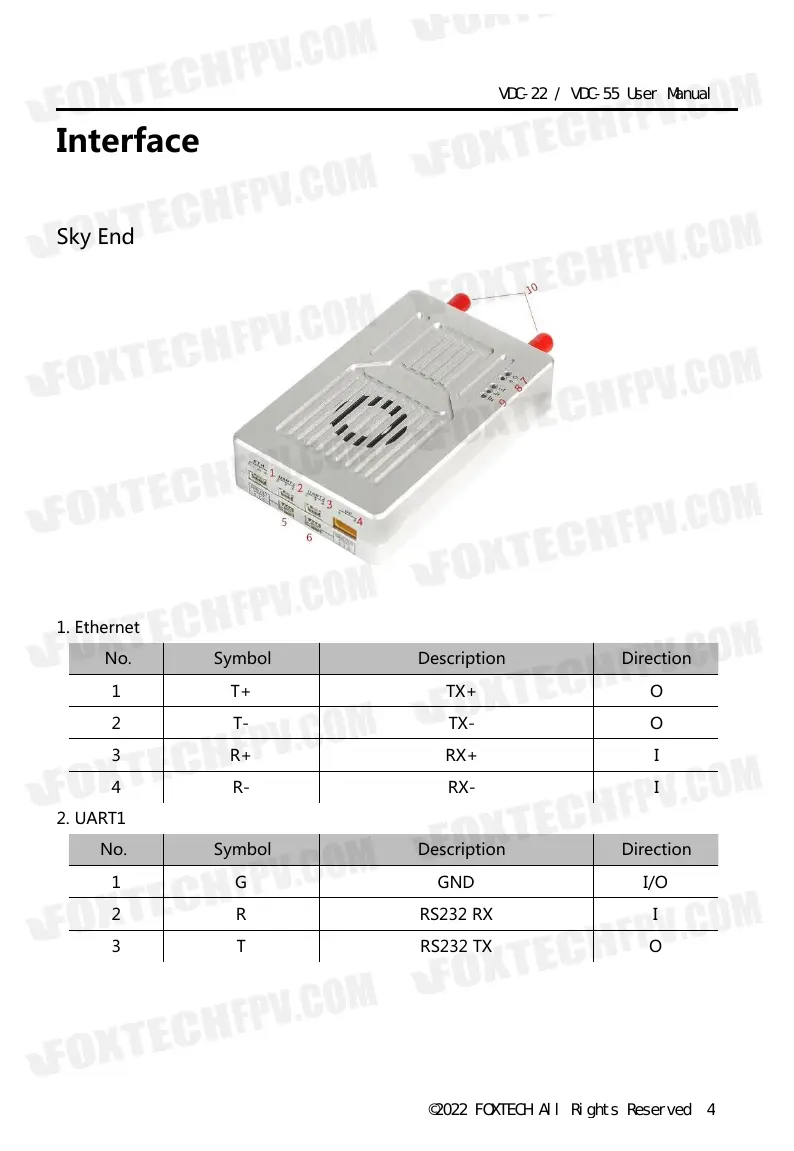

Interface
Sky End
1. Ethernet
No. Symbol Description Direction
1 T+ TX+ O
2 T- TX- O
3 R+ RX+ I
4 R- RX- I
2. UART1
No. Symbol Description Direction
1 G GND I/O
2 R RS232 RX I
3 T RS232 TX O
