NT630 Pro ABS & Airbag Reset Tool Manual_English_V1.01

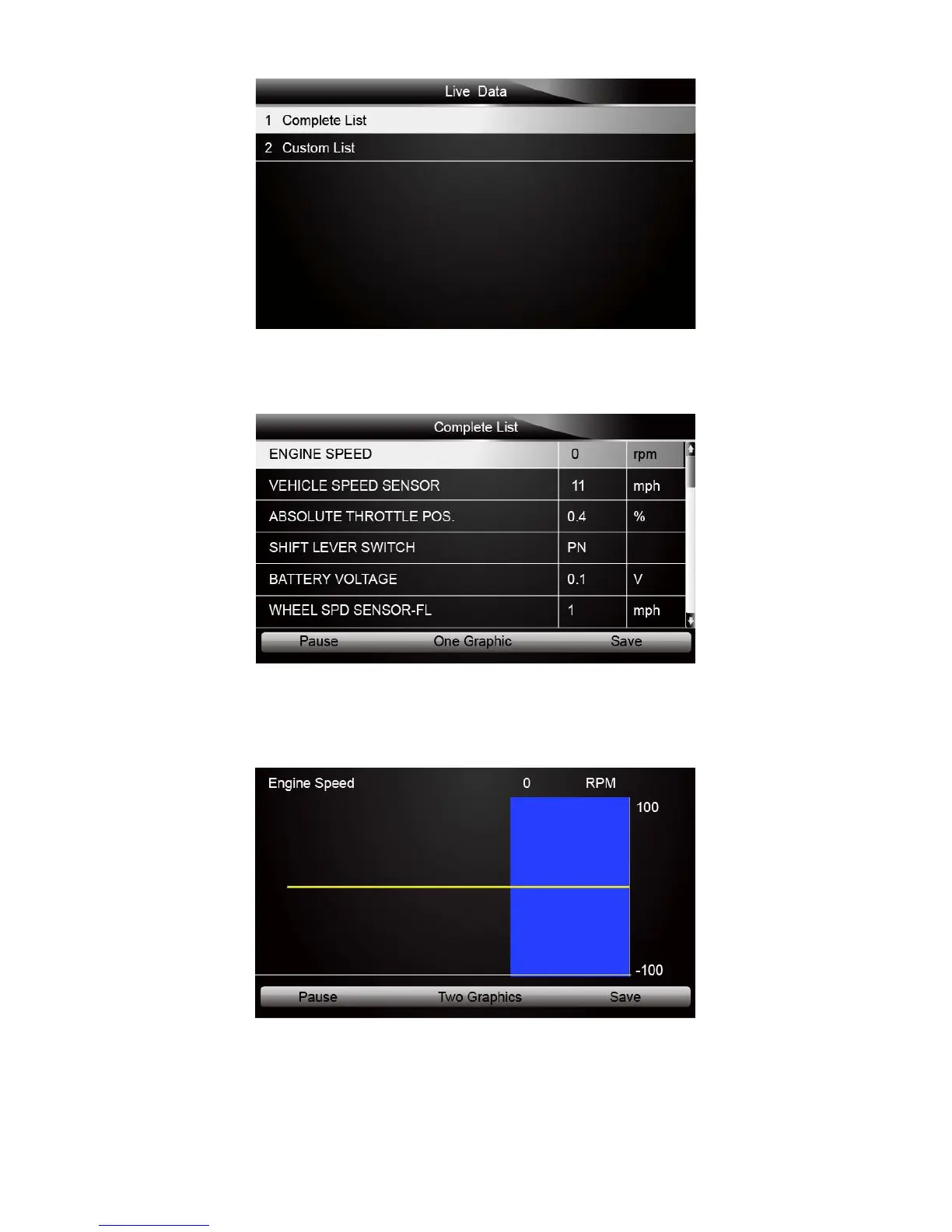

Figure 4-26 Sample Live Data Selection Screen
2. Select the Complete List from the menu and press the ENTER key to display the datastream
screen.
Figure 4-27 Sample Complete List Screen
3. Scroll with the up and down arrow keys to highlight a line, if the One Graphic on the bottom is
highlighted, it indicates the graphing is available for the selected line. Press the function key
One Graphic to display the PID graph.
Figure 4-28 Sample PID graph Screen
4. Press the function key Two Graphics to display two PID graphs in one screen.
